STEP 3 - Measure the suction line pressure and
temperature at the “true” suction line and record
the values below.
NOTE: the side service panel will need to be
removed to gain access to this area.

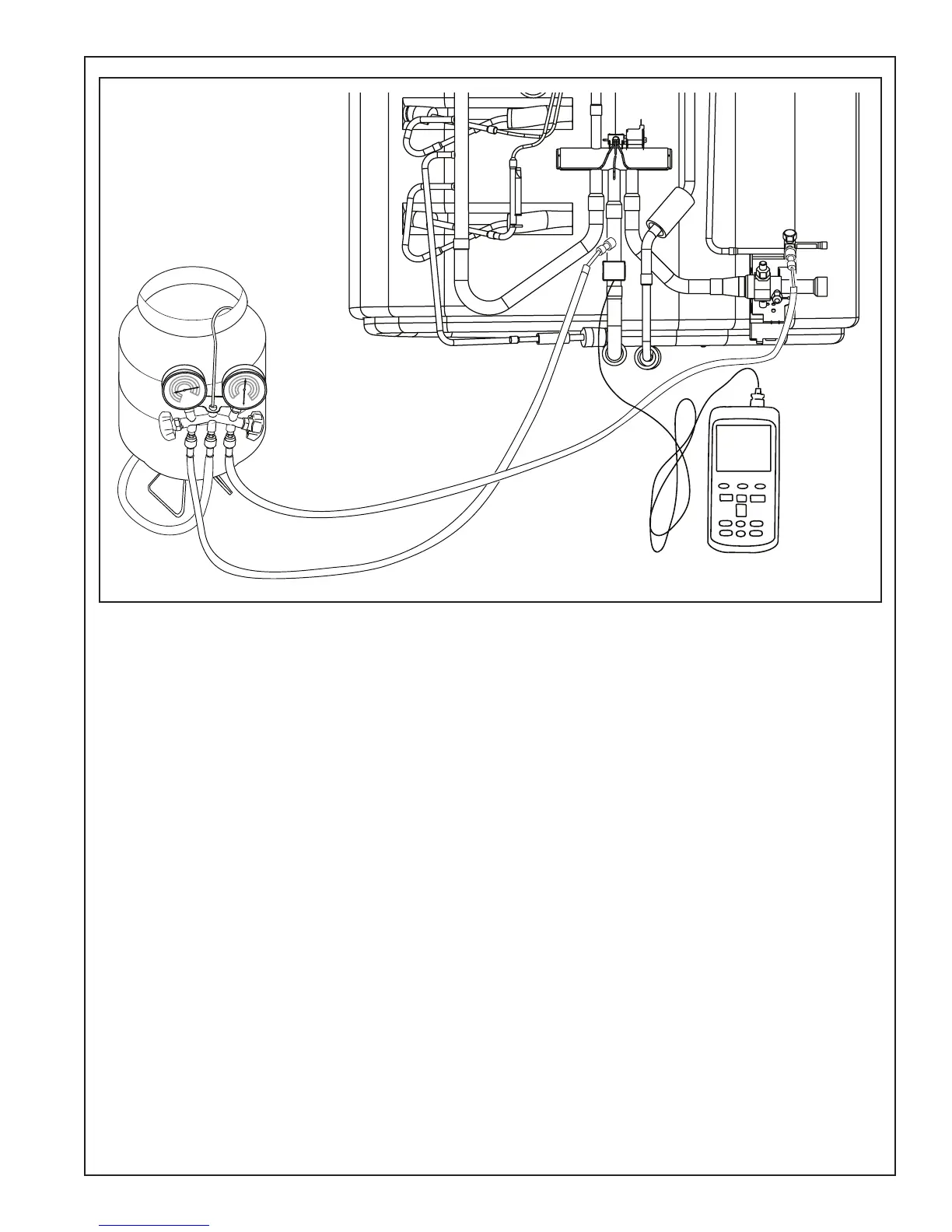

Attach temperature probe and the gage as
shown. Ensure the probe is securely attached
and well insulated.
Measured
Suction Line Temperature = __________º F
Measured
Suction Line Pressure = __________º F
Compare these values to the 15 degree super-
heat chart in Table 13.2.
