16 18-BC85D1-2
GAF2-36M Air Handler

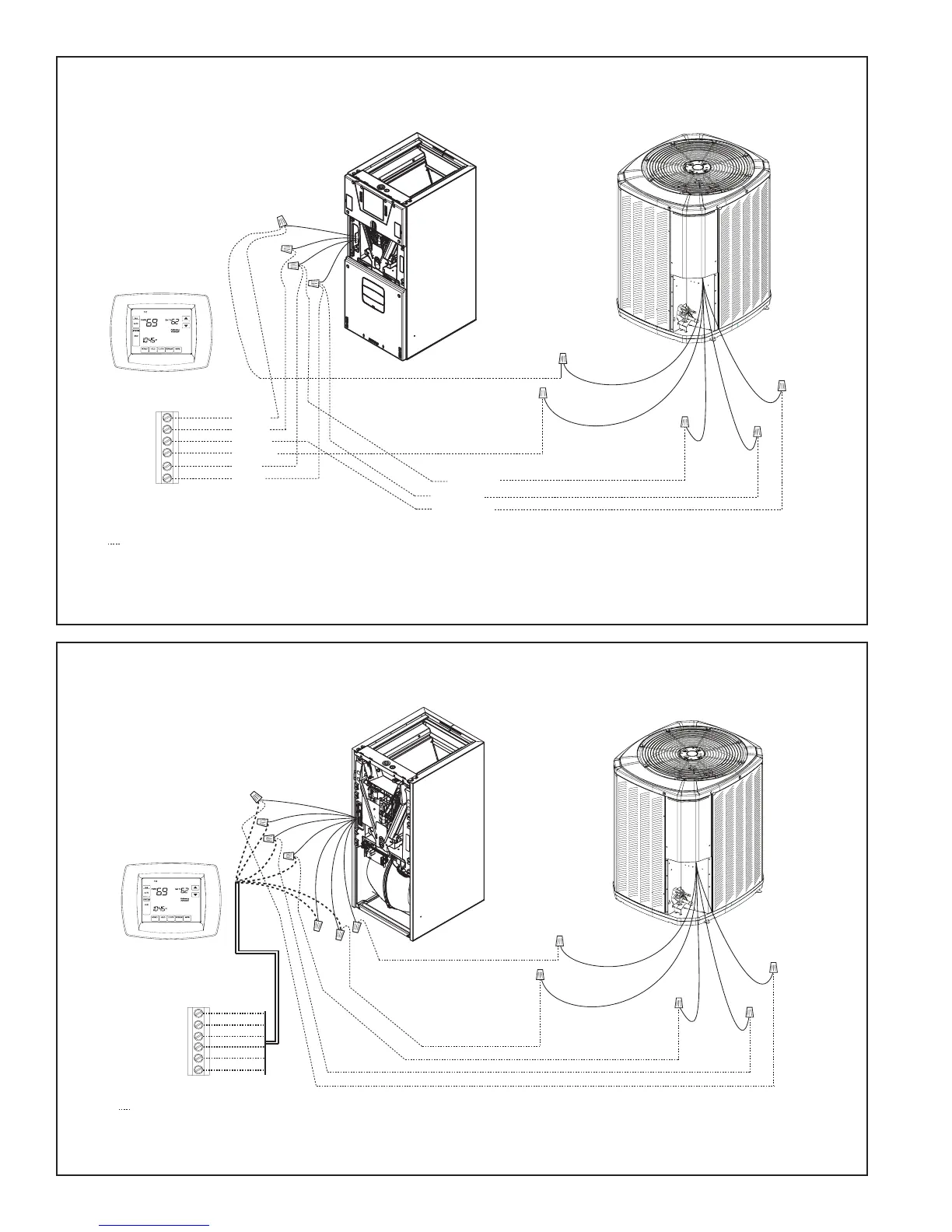

Hook-up Diagram
GAF2 Air Handler
Hook-up Diagram
Comfort Control
Field wiring
Yellow
Green
White
Blue
B
W
G
Y
R
Red
O
Orange
Yellow
Blue
Black
(X2)
Red
Orange
Heat Pump
Air Handler
Red
Blue
Yellow YI
Purple YO
Orange
Green
White
YI and YO connections must be made as shown
Internally mounted condensate switch is optional and must be ordered separately
If a 3rd party condensate overflow switch is installed, it should be wired between Y of the thermostat and YI of the EEV control.
Red
Yellow
Green
White
Blue
Orange
Yellow
Green
White
Blue
B
B - Blue
R - Red
W
G
Y
Y - Yellow
R
Red
O
Orange
Comfort Control
Air Handler
Field wiring
Yellow
Blue
Black
(X2)
Red
Orange
Heat Pump
Red
Blue
Green
W1 White
