18-BC51D1-3 7
Installer’s Guide

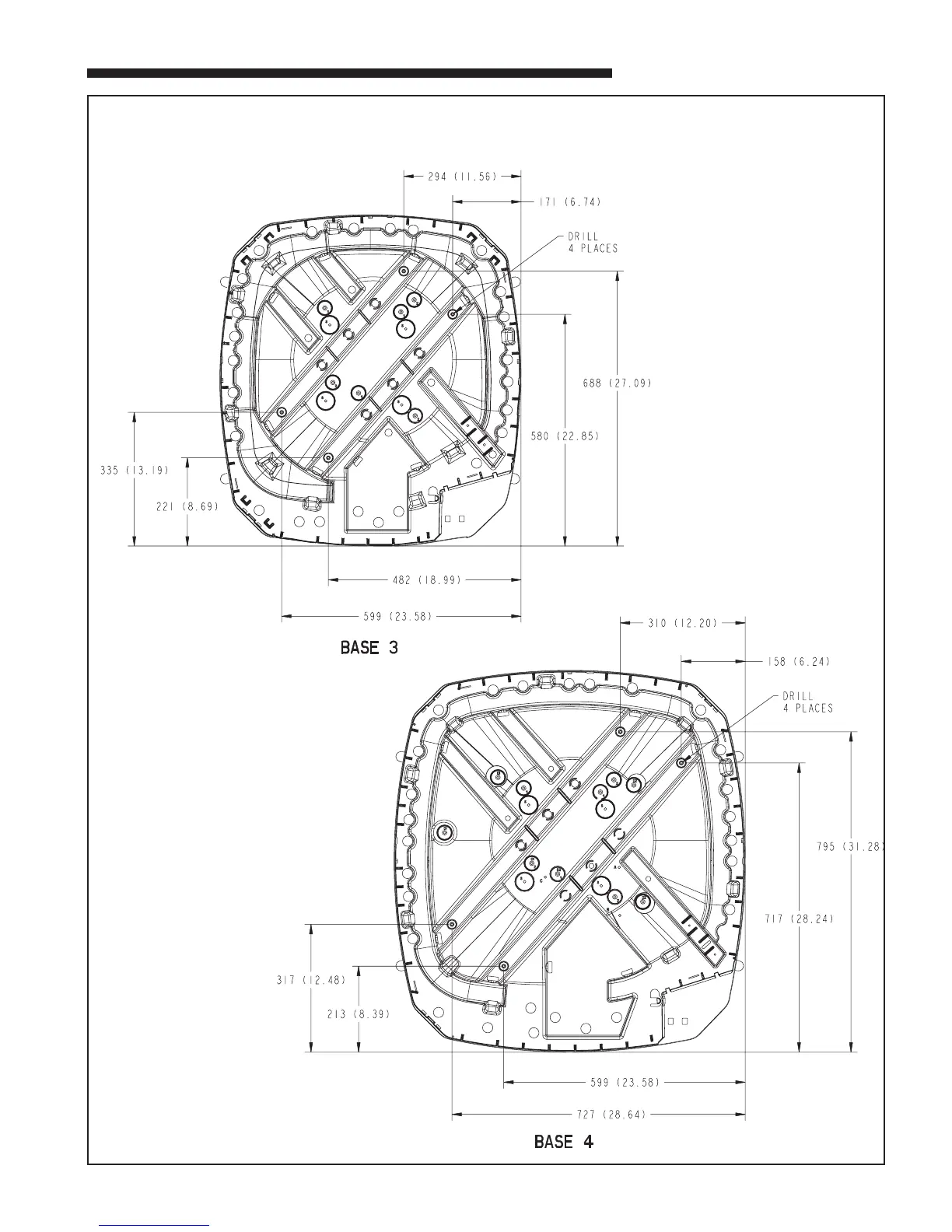

MOUNTING HOLE LOCATION
NOTE: ALL DIMENSIONS ARE IN MM (INCHES).
NOTE: For model base size,
see table on page 6.
From Dwg. D152637 Rev. 1
