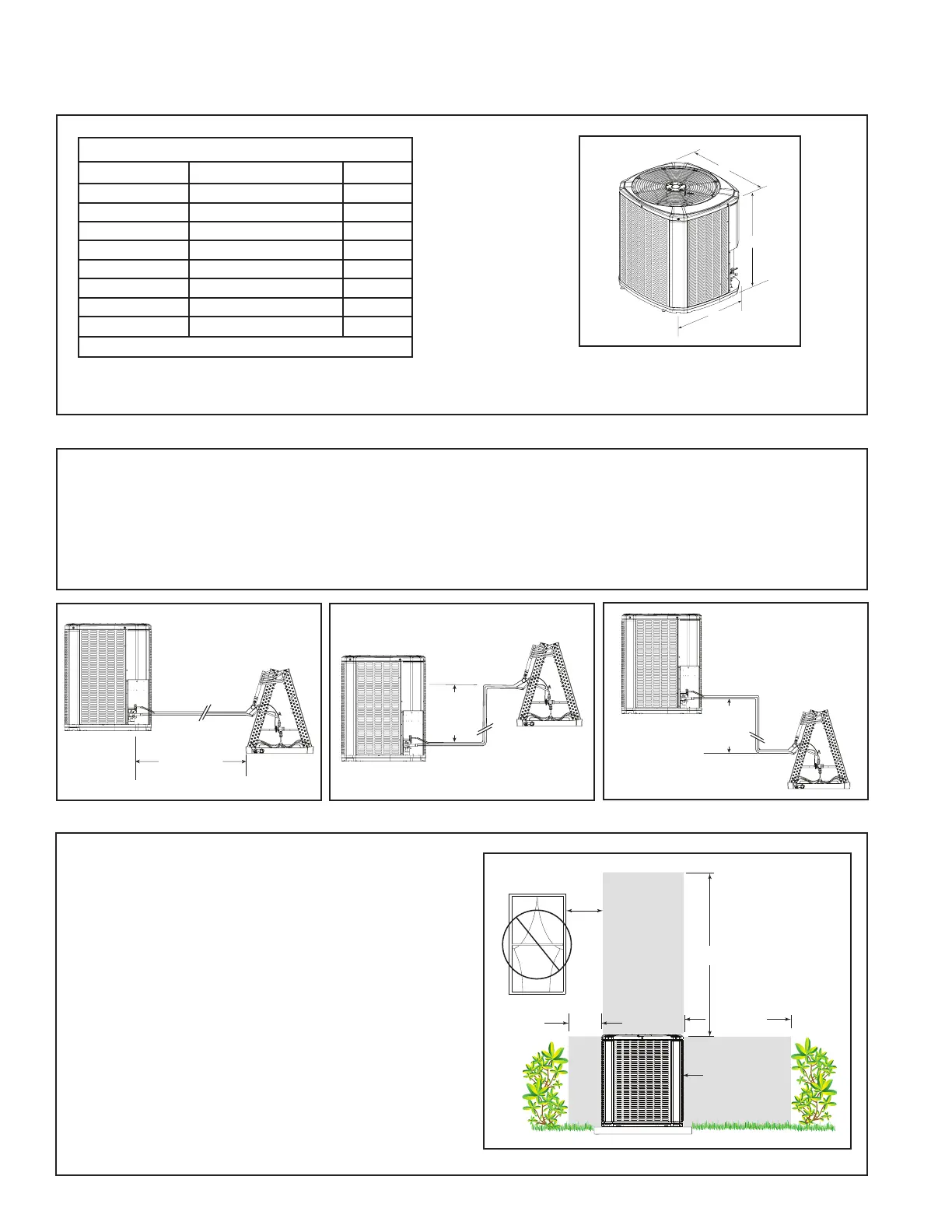

4 18-BC95D1-5E-EN
Min. 12” to
Shrubber
y
Avoid Install
Near Bedrooms
Min 5’ Unrestricted
Access Panel
Min 3’
Unrestricted
2.3 Suggested Locations for Best Reliability
Ensure the top discharge area is unrestricted for at least
five (5) feet above the unit.
Three (3) feet clearance must be provided in front of the
control box (access panels) and any other side requiring
service.
It is not recommended to install in a location where noise
may distract the building occupants. Some examples of
these types of locations are sleeping quarters and by
windows of a living area. Please discuss location with the
building owner prior to installation.
Avoid locations such as near windows where condensa-
tion and freezing defrost vapor can annoy a customer.
Position the outdoor unit a minimum of 12” from any wall
or surrounding shrubbery to ensure adequate airflow.
Outdoor unit location must be far enough away from any
structure to prevent excess roof runoff water or icicles
from falling directly on the unit.
50’
Max
Vertical
Change
50’
Max
Vertical
Change
2.2 Refrigerant Piping Limits
1. The maximum TOTAL length of refrigerant lines from outdoor to indoor unit should NOT exceed 150 feet
(including lift).
2 . The maximum vertical change should not exceed 50 feet.
3 . Service valve connection diameters are shown in Table 5.1.
Note: For other line lengths, Refer to Refrigerant Piping Application Guide, SS-APG006F-EN, or Refrigerant
Piping Software Program.
D
H
W
Section 2. Unit Location Considerations
2.1 Unit Dimensions and Weight
Table 2.1
When mounting the outdoor unit on a roof, be sure the roof will support the unit’s weight.
Properly selected isolation is recommended to alleviate sound or vibration transmission to the building structure.
Unit Dimensions and Weight
Models H x D x W (in)
Weight* (lb)
4TWR4017N 29 x 26 x 29 141
4TWR4018N 33 x 30 x 33 174
4TWR4024N 33 x 30 x 33 174
4TWR4030N 29 x 30 x 33 163
4TWR4036N 37 x 34 x 37 199
4TWR4042N 45 x 34 x 37 227
4TWR4048N 45 x 34 x 37 250
4TWR4060N 45 x 34 x 37 251
* Weight values are estimated uncrated.
