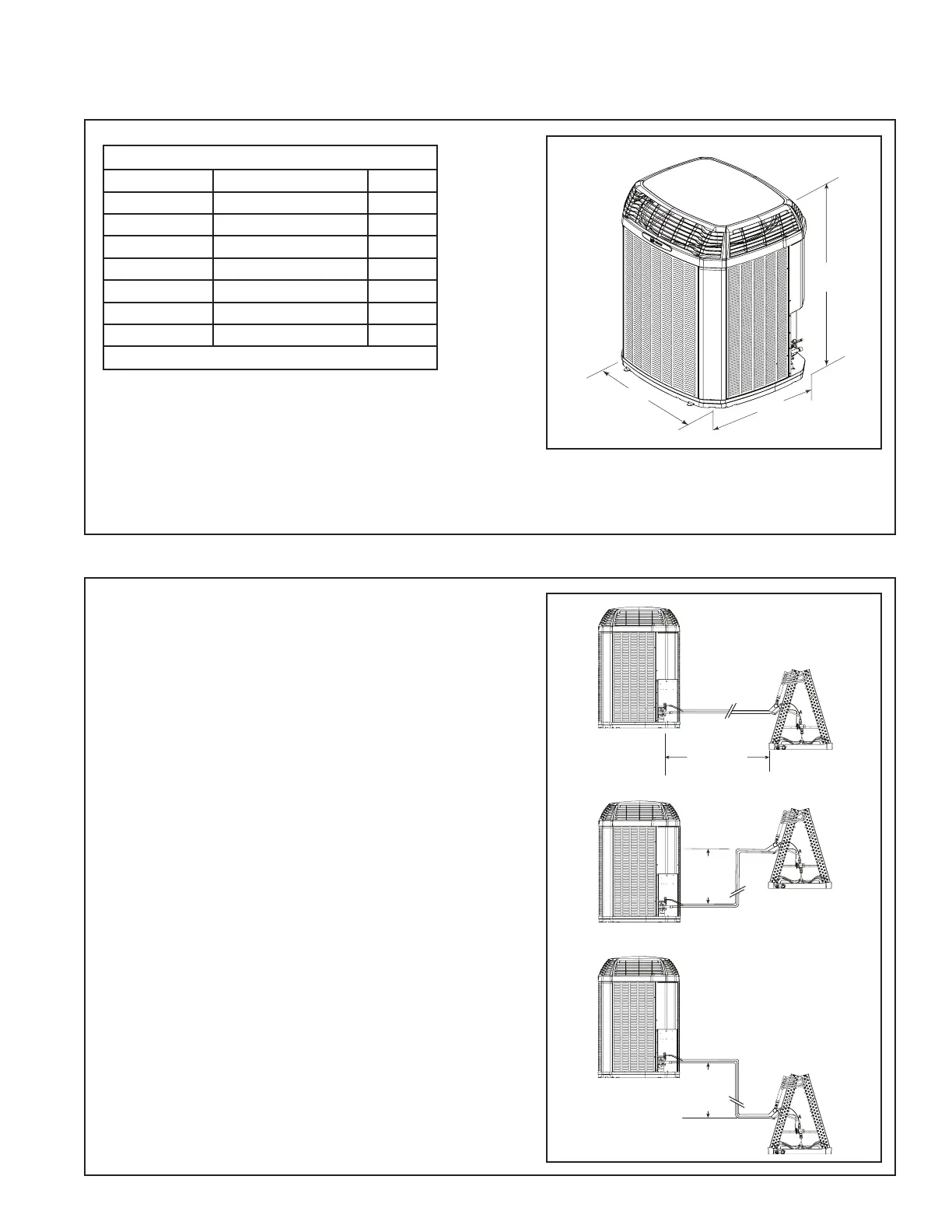

18-BC60D1-6 3
Section 2. Unit Location Considerations
2.1 Unit Dimensions and Weight
2.2 Refrigerant Piping Limits
D
H
W
Unit Dimensions and Weight
Models H x D x W (in)
Weight* (lb)
4TWX5018B
37 x 30 x 33 225
4TWX5024A
42 x 34 x 37 287
4TWX5030A
50 x 34 x 37 314
4TWX5036B
42 x 34 x 37 293
4TWX5042A
50 x 34 x 37 346
4TWX5049E
54 x 34 x 37 364
4TWX5061E
54 x 34 x 37 365
* Weight values are estimated.
60’
Max
Vertical
Change
Standard
Line Set
60’ Max
Line Length
60’
Max
Vertical
Change
1. The maximum length of refrigerant lines
from outdoor to indoor unit should NOT
exceed sixty (60) feet.
2. The maximum vertical change should not
exceed sixty (60) feet*.
3. Service valve connection diameters are
shown in Table 5.1.
Note: For line lengths greater than sixty (60)
feet, Refer to Refrigerant Piping Application
Guide, SS-APG006-EN or Refrigerant Piping
Software Program, 32-3312-03 (or latest revi-
sion).
* 061 Heat Pump is restricted to maximum
vertical change of 30 ft.
Table 2.1
*
*
When mounting the outdoor unit on a roof, be
sure the roof will support the unit’s weight.
Properly selected isolation is recommended to
alleviate sound or vibration transmission to the
building structure.
Please refer to application bulletin SSC-
APG006-EN for detailed mounting information.
