Trane 4TXM2324BF300AA - Dimension

5
4MXC2309BF0W0AA 4MXC2312BF0W0AA 4MXC2318BF0W0AA
Comparison of PB-620KB PB-700KB PB-700IB
PB-620KB dimension
577
700
700
PB-700IB dimension
Note: the design dimension of the embedded part of the panel, PB-620KB is 583mm, the PB-700IB is
577mm
577
700
700
Note: the design dimension of the embedded part of the panel, PB-620KB is 583mm
PB-620KB ceiling opening size PB-700IB ceiling opening size
Note: to ensure that the panel can be
installed properly, for PB-620KB panel,
the minimum opening size of the ceiling
should be more than 583mm
.
Note: to ensure that the panel can be installed
properly, for PB-700IB/PB-700KB panel, the
minimum opening size of the ceiling should be
more than 577mm.
570 (Indoor unit)
700 (Panel)
577 (Embedded part of the panel
）
570 (Indoor unit)
620 (Panel)
583 (Embedded part of the
panel
）

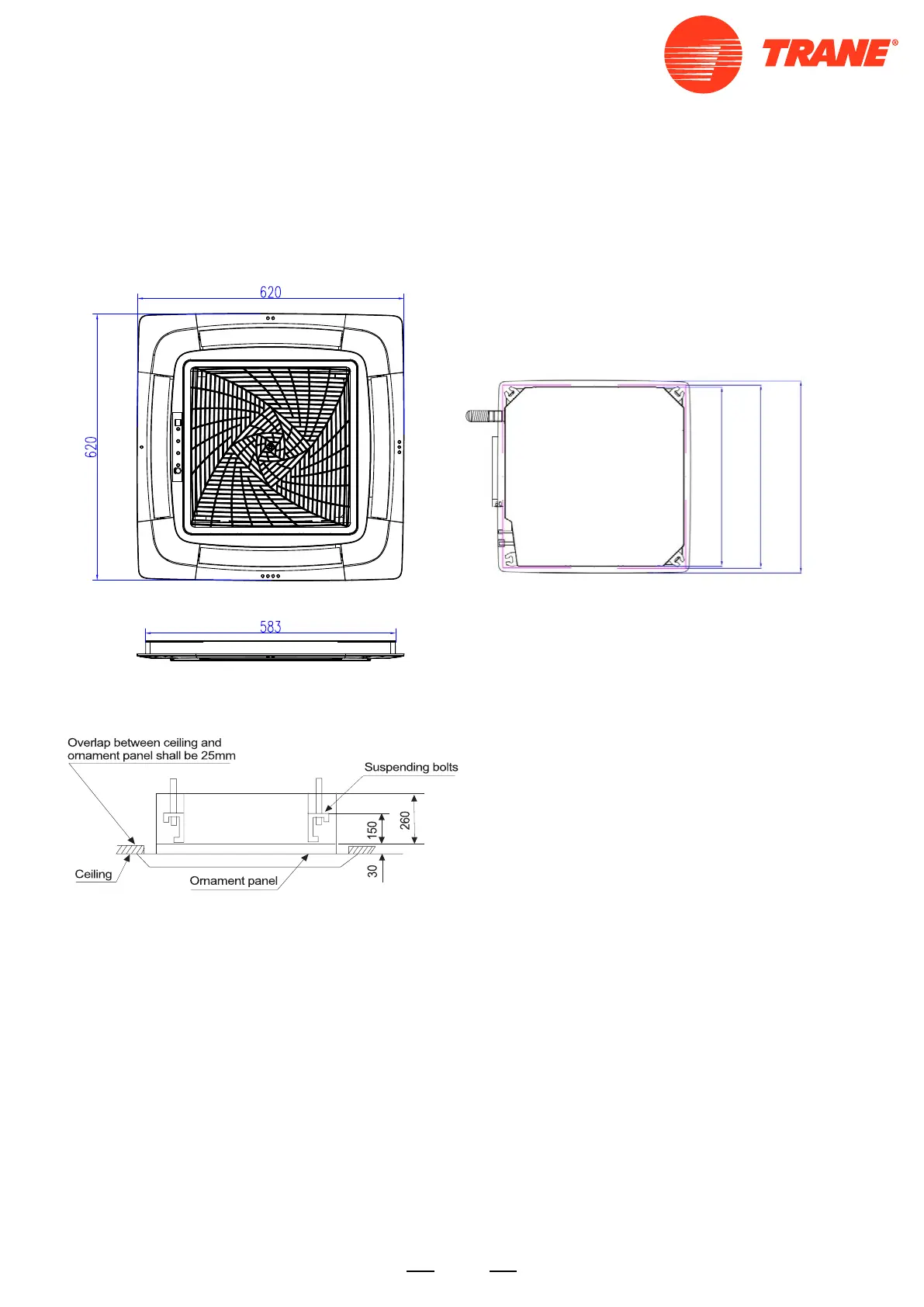

4MXL2324BF0W0AA
Note: to ensure that the panel can be installed
properly, for 4MXL2324BF0W0AA panel, the
minimum opening size of the ceiling should be
more than 583mm.
2.2 Dimension
