Trane 4TYK6-A - Outdoor Unit Wiring Diagrams (Cooling Only); Cooling Only Outdoor Unit Wiring Diagram; Outdoor Unit Wiring Diagrams (Heat Pump); Heat Pump Outdoor Unit Wiring Diagram

Trane 4TYK6-A
28 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

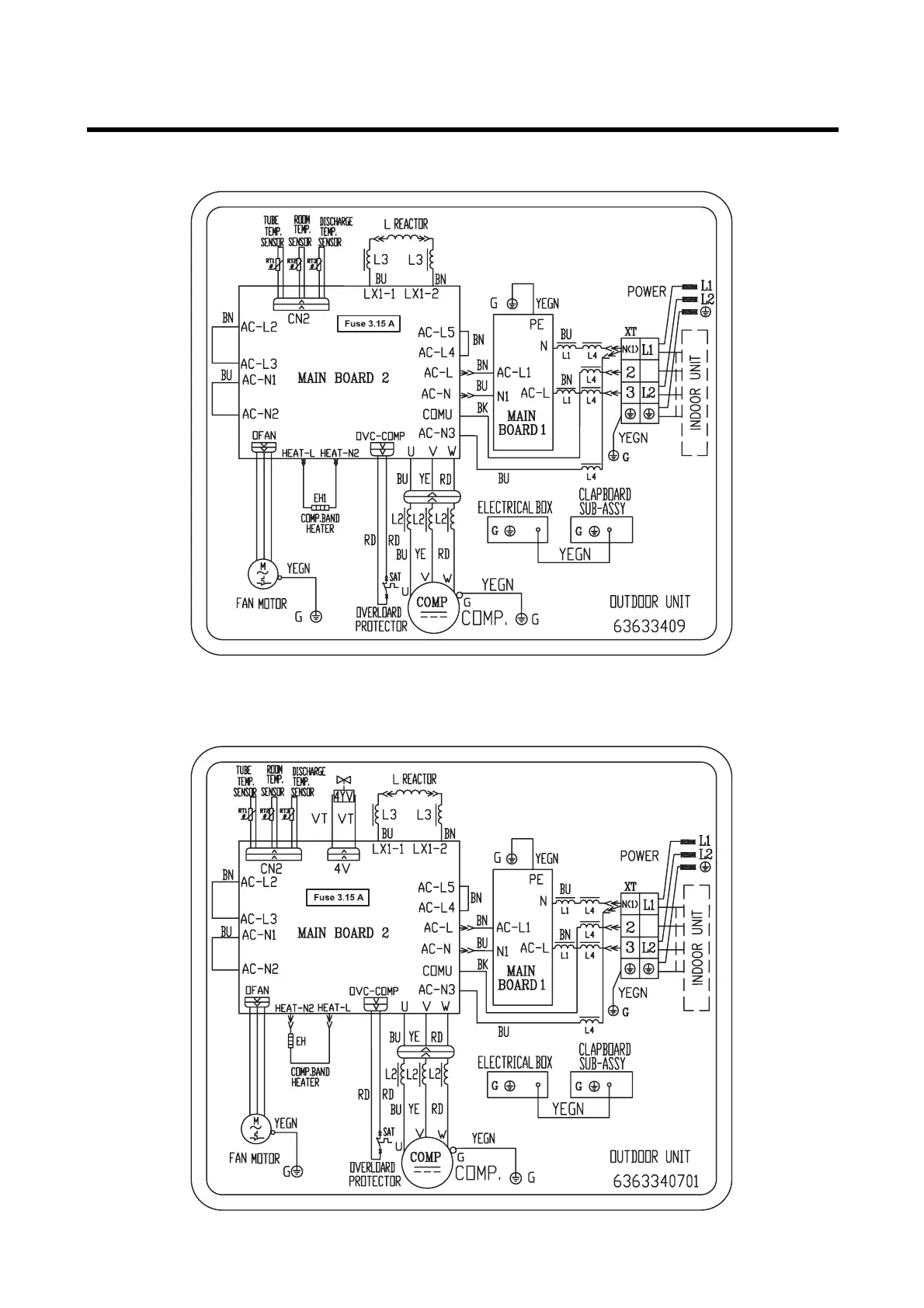

Figure 5 . 4TXK6509A1 4TXK6512A1 (Heat pump outdoor units)
MS-SVN22A-EN
25
Figure 4. 4TYK6509A1 4TYK6512A1 (Cooling only outdoor units)
