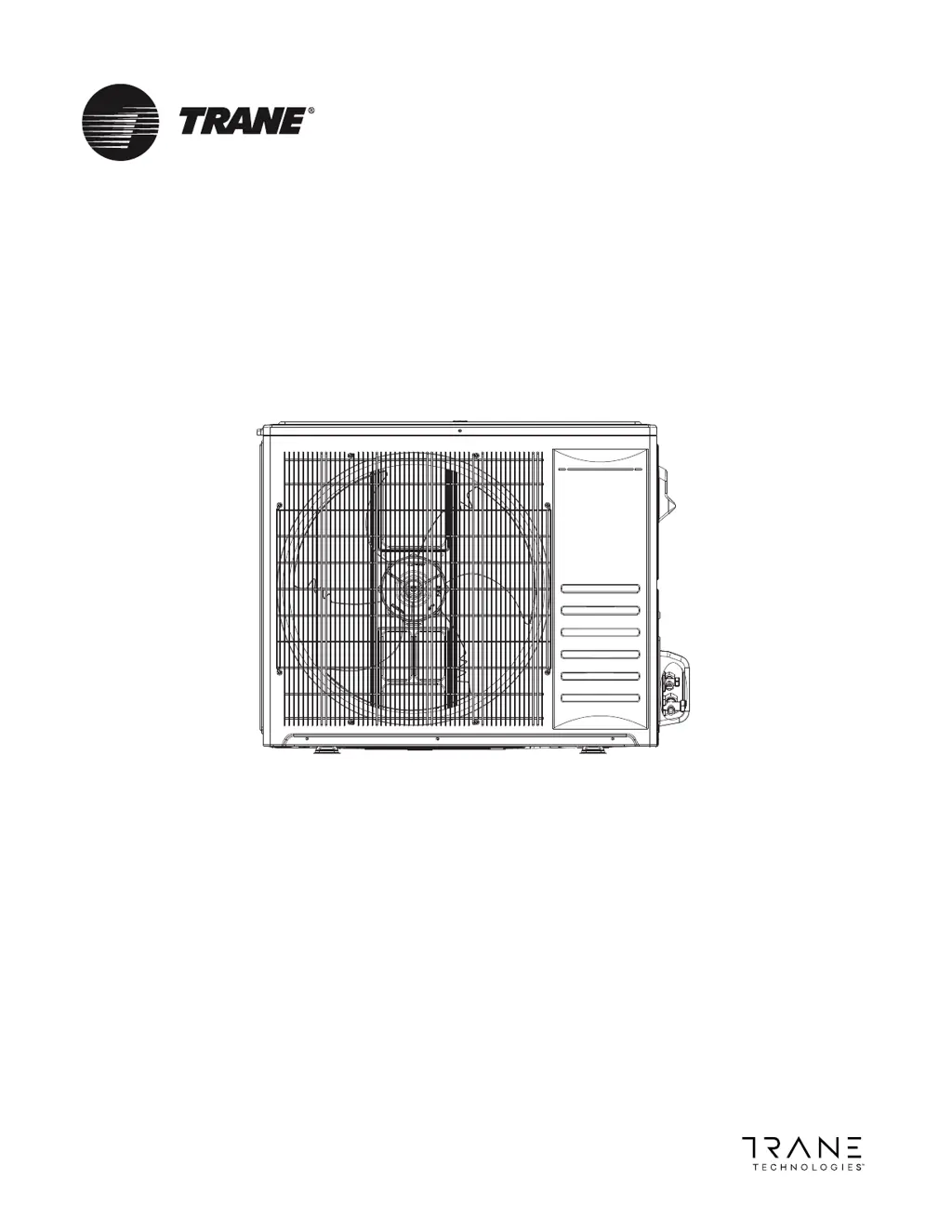

Trane 4TYK8536B1000AA User Manual

Dc-Inverter air conditioners
TECHNICAL & SERVICE MANUAL V1.0
October 2022 SS-SVM001A-EM
Outdoor Unit
Model:
4TYK8536B1000AA
4TYK8548B1000AA
4TYK8560B1000AA

Trane 4TYK8536B1000AA Specifications

General

Model Number	4TYK8536B1000AA
Cooling Capacity	3 Tons
SEER Rating	16
Voltage	208/230
Phase	1
Frequency	60 Hz
Refrigerant	R-410A
Refrigerant Type	Puron
Outdoor Unit Weight	220 lbs
Type	Split System
Cooling Capacity (BTU)	36000 BTU
Stages	Single Stage
Indoor Unit Compatibility	Compatible with Trane and American Standard air handlers and furnaces

Summary

Introduction and Safety Information

Advisory Signal Word Definitions

Defines advisory signal words like DANGER, WARNING, and CAUTION.

Environmental and Refrigerant Handling

Discusses environmental concerns and responsible refrigerant management.

Field Wiring, Grounding, and PPE Safety

Emphasizes safe wiring, grounding, and mandatory use of PPE.

General Safety Precautions and Notices

Covers important notices, hazard definitions, and general safety practices.

General Product Information and Specifications

Product Features and Lineup Overview

Details the product's 360 DC inverter technology and model variations.

Model Nomenclature and Unit Dimensions

Explains model number structure and provides unit outlines and dimensions.

Unit Installation and Operating Range

Specifies voltage, imbalance, and operating temperature ranges.

Technical Data and Electrical Specifications

Electrical Data and Power Supply Specifications

Lists power supply, applicable voltage, and ELB ratings for models.

Capacities, Sound Data, and Refrigerant Cycle

Presents capacity charts, sound data, and refrigerant cycle diagrams.

Wiring Diagrams, Field Settings, and Installation

Wiring Diagrams and Board Identification

Illustrates electrical wiring and identifies components on control/drive boards.

Field Setting Procedures (DIP Switches, Capacity)

Details how to set DIP switches and capacity for outdoor units.

Piping, Refrigerant Charge, and Air Tight Test

Covers piping, refrigerant addition, and air tight testing procedures.

Installation Tools and Flow Chart

Lists necessary tools and outlines the overall installation process.

Control Logic, Sensor Parameters, and Component Checks

Control Modes and Protection Functions

Describes various control modes and protection mechanisms like anti-freeze and overload.

Sensor Parameter Tables

Provides resistance values for temperature sensors at different temperatures.

Component Checking Procedures

Details methods for checking the refrigerant system and key components.

Troubleshooting, Disassembly, and Assembly

Troubleshooting Guide and Fault Code Displays

Offers guidance on diagnosing common issues and displays fault codes via LEDs/7-segment.

Specific Fault Codes and Remedies

Lists specific fault codes, their causes, and recommended corrective actions.

Compressor and Motor Disassembly/Assembly

Provides steps for safely disassembling and assembling compressors and motors.
