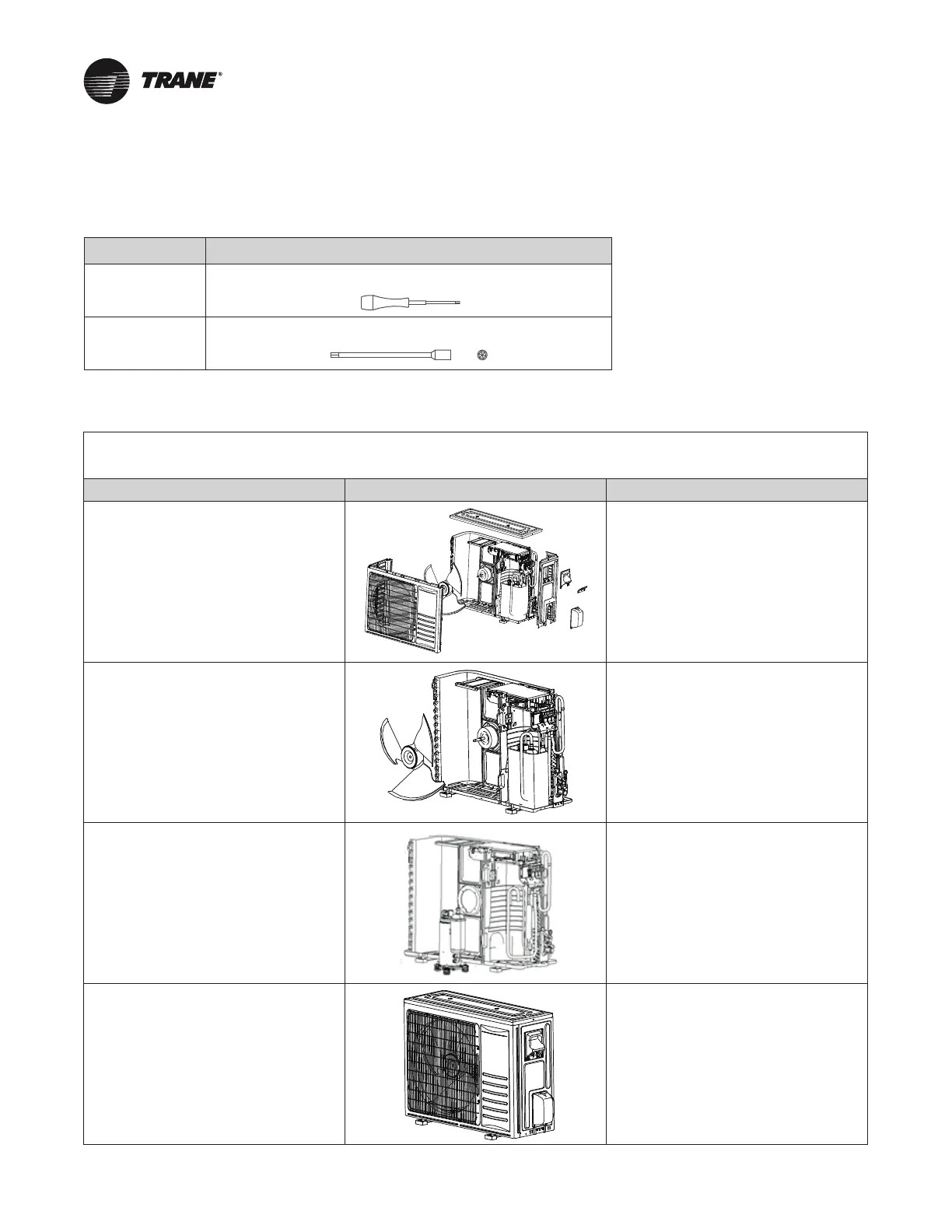

15. Disassembly and assembly for compressor and
motor
The special tools for compressor & motor disassembly and assembly:
Outdoor unit
36K
Tool
1
Hexagon Screwdriver
2
Hexagon Socket
Important: Before disassembly and assembly, make sure that the power to the system has been disconnected and
verified as voltage free.
Step Illustration Handling Instruction
1. Remove external casing
1. Remove the top cover, handle and
valve cover;
2. Remove the outer case and right
side plate.
2. Remove motor
1. Remove the blade nut and then
remove the blade;
2. Remove the motor from motor
supporter.
3. Remove compressor
1. Reclaim the refrigerant from the
entire system;
2. Remove the compressor mounting
bolts;
3. Carefully remove the compressor
from chassis.
4. Assemble unit
Assemble the unit in the reverse
order of disassembly.
