18-GF16D1-1A-EN
29

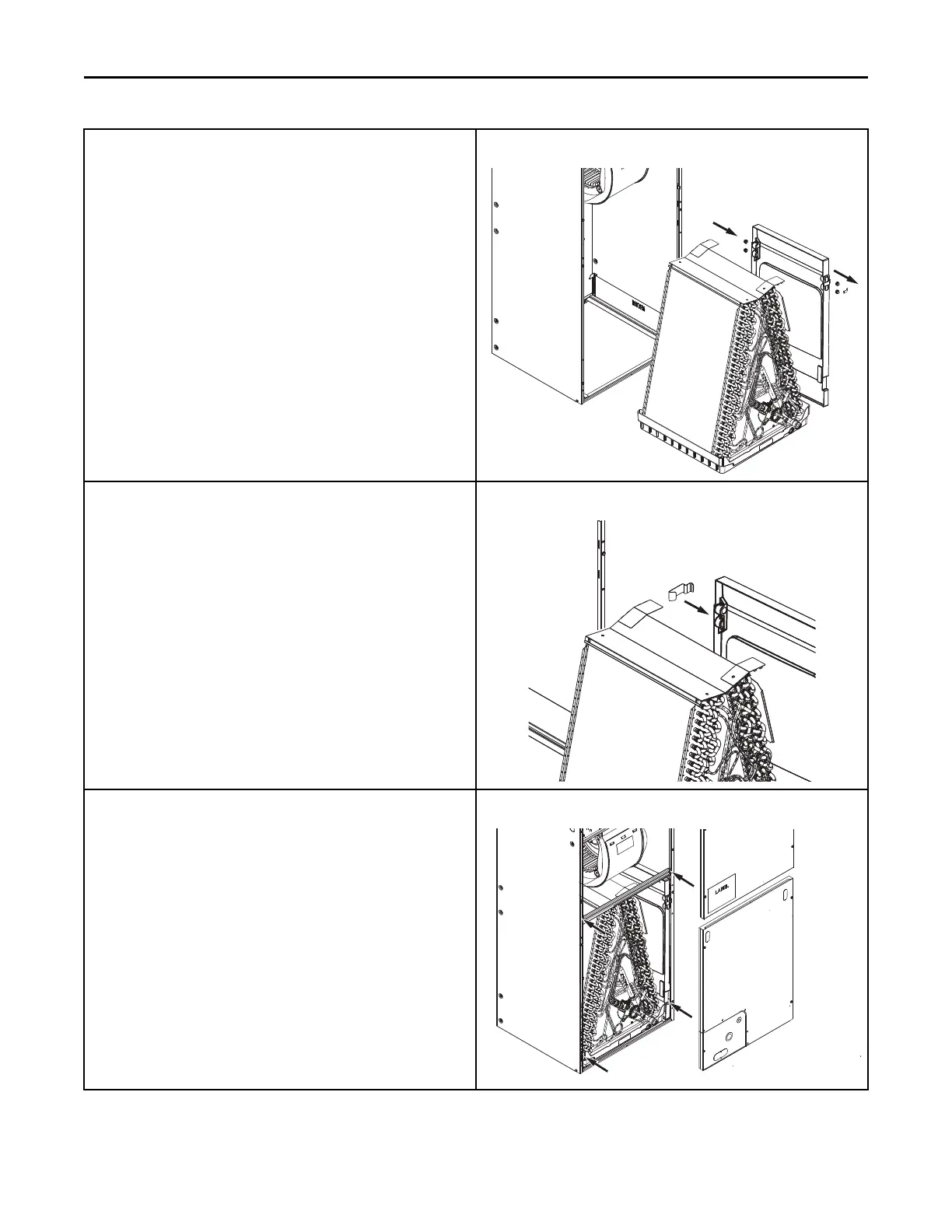

10. Relocate the horizontal drain pan from the left side of the coil to
the right side.
11. Remove the drain pan support bracket. Do not discard. Remove
the two drain plugs from the front of the drain pan and insert
them in the drains at the rear of the drain pan.
Important: When reinstalling coil in Step 13, it is important that the
coil corner locks in place under the tab in the side bracket
to support the coil weight horizontally.
Figure 30. All models
12. Reinstall the drain pan support bracket. The bracket should be
located between the two drain plugs as shown.
Figure 31. All models
13. Slide the coil assembly back into the air handler cabinet.
Important: Make sure that the coil corner locks in place under the tab
in the side left bracket to support the coil weight in the
horizontal right position.
14. Replace the center horizontal bracket using screws removed
earlier in Step 3.
15. Replace the two coil retaining brackets removed in a previous
step.
16. Replace all panels.
Figure 32. All models
CCooiill CCoonnvveerrssiioonn IInnssttrruuccttiioonnss
