Table 11. Downflow (continued)
5. On both sides of the cabinet, remove the screws that hold the coil
support brackets and retain for later use. Seal the holes to
prevent air leakage.
6. Rotate and lift the two coil support brackets to remove from front
slots in cabinet.

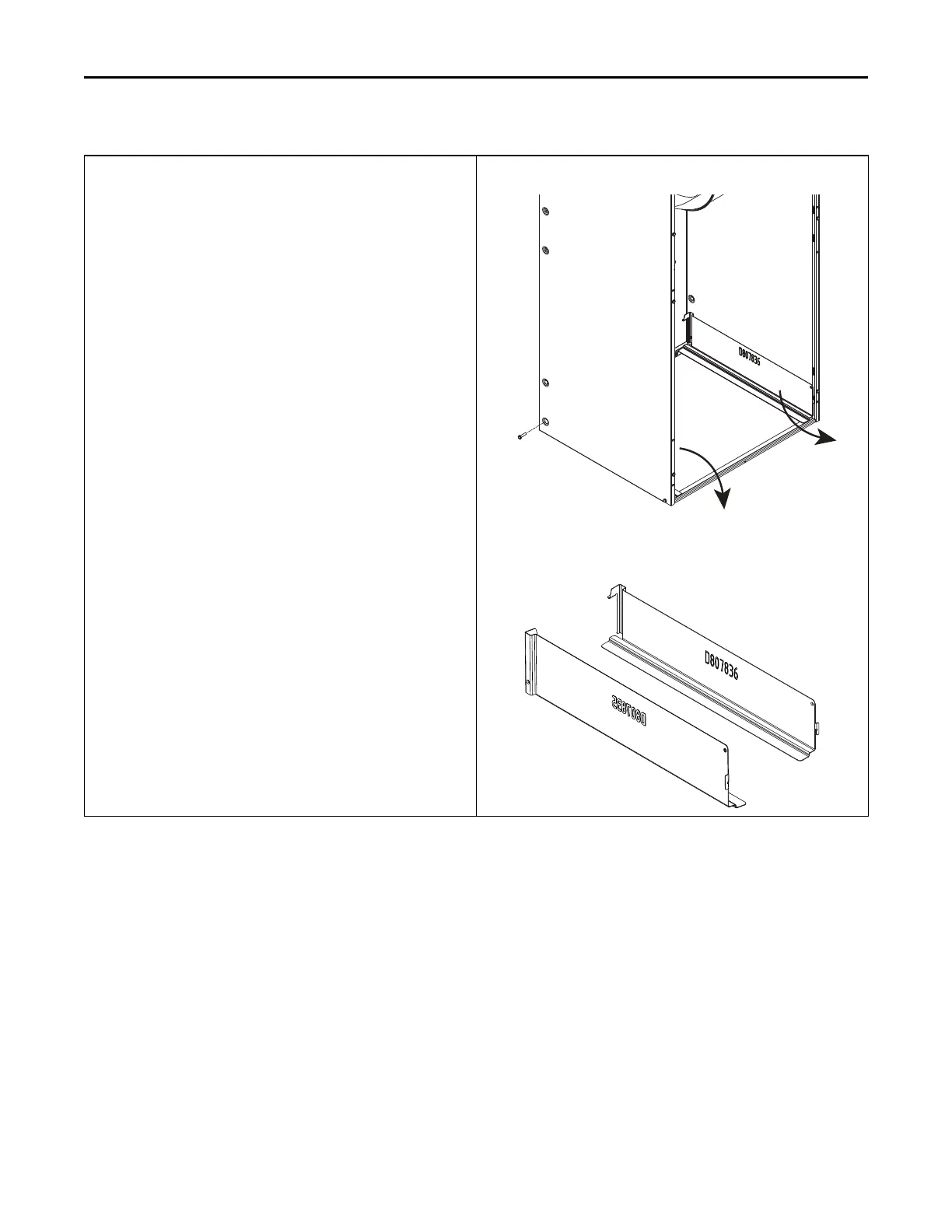

Figure 5. All models
Figure 6. All models
Left
Right
