4 88-A4HP4001-1E-EN
D
W
H

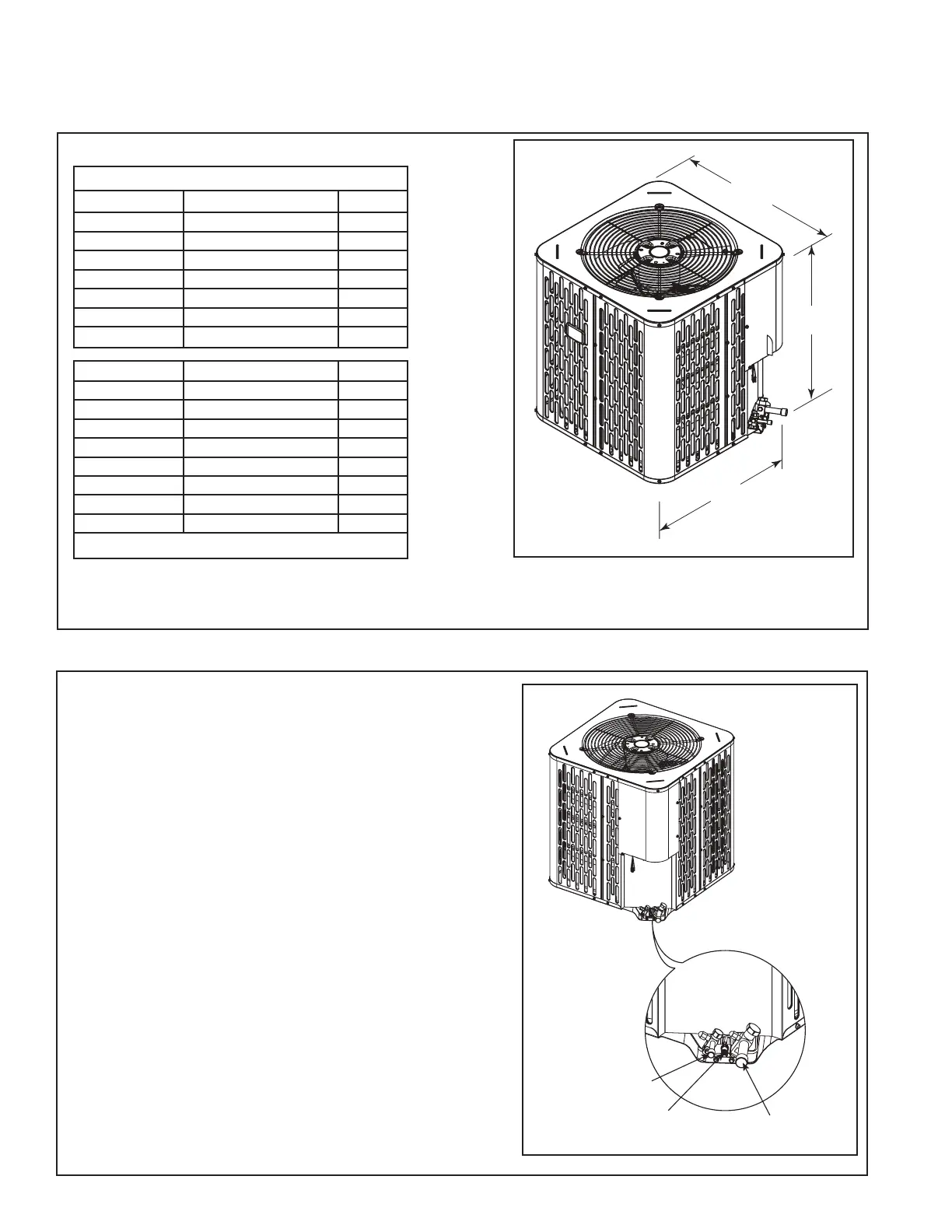

Section 2. Unit Location Considerations
2.1 Unit Dimensions and Weight
Table 2.1
When mounting the outdoor unit on a roof, be sure the roof will support the unit’s weight.
Properly selected isolation is recommended to alleviate sound or vibration transmission to the building structure.
A4HP4017A 28.6 x 23.6 x 23.6 142
A4HP4018A 28.6 x 25.6 x 25.6 143
A4HP4023A 28.6 x 25.6 x 25.6 143
A4HP4024A 28.6 x 29.8 x 29.8 159
A4HP4030A 28.6 x 34.3 x 34.3 177
A4HP4036A 28.6 x 34.3 x 34.3 177
A4HP4042A 28.6 x 34.3 x 34.3 197
A4HP4048A 32.6 x 34.3 x 34.3 210
A4HP4060A 44.6 x 34.3 x 34.3 252
* Weight values are estimated uncrated.
Liquid Line Connection
Access valve for compressor
suction pressure measurement
Suction Line
Connection
2.2 Service Valves Locations
1. The locations of the below listed valves in
the unit are shown in the figure.
a) Liquid line connection
b) Access valve for compressor suction
pressure measurement
c) Suction line connection
Unit Dimensions and Weight
Models H x D x W (in)
Weight* (lb)
A4HP4018D 32.6 X 29.8 X 29.8 162
A4HP4024D 32.6 X 29.8 X 29.8 162
A4HP4030D 28.6 X 29.8 X 29.8 159
A4HP4036D 36.6 X 34.3 X 34.3 199
A4HP4042D 44.6 X 34.3 X 34.3 227
A4HP4048D 44.6 X 34.3 X 34.3 250
A4HP4060D 44.6 X 34.3 X 34.3 250
