A952V-SVX001-1A-EN

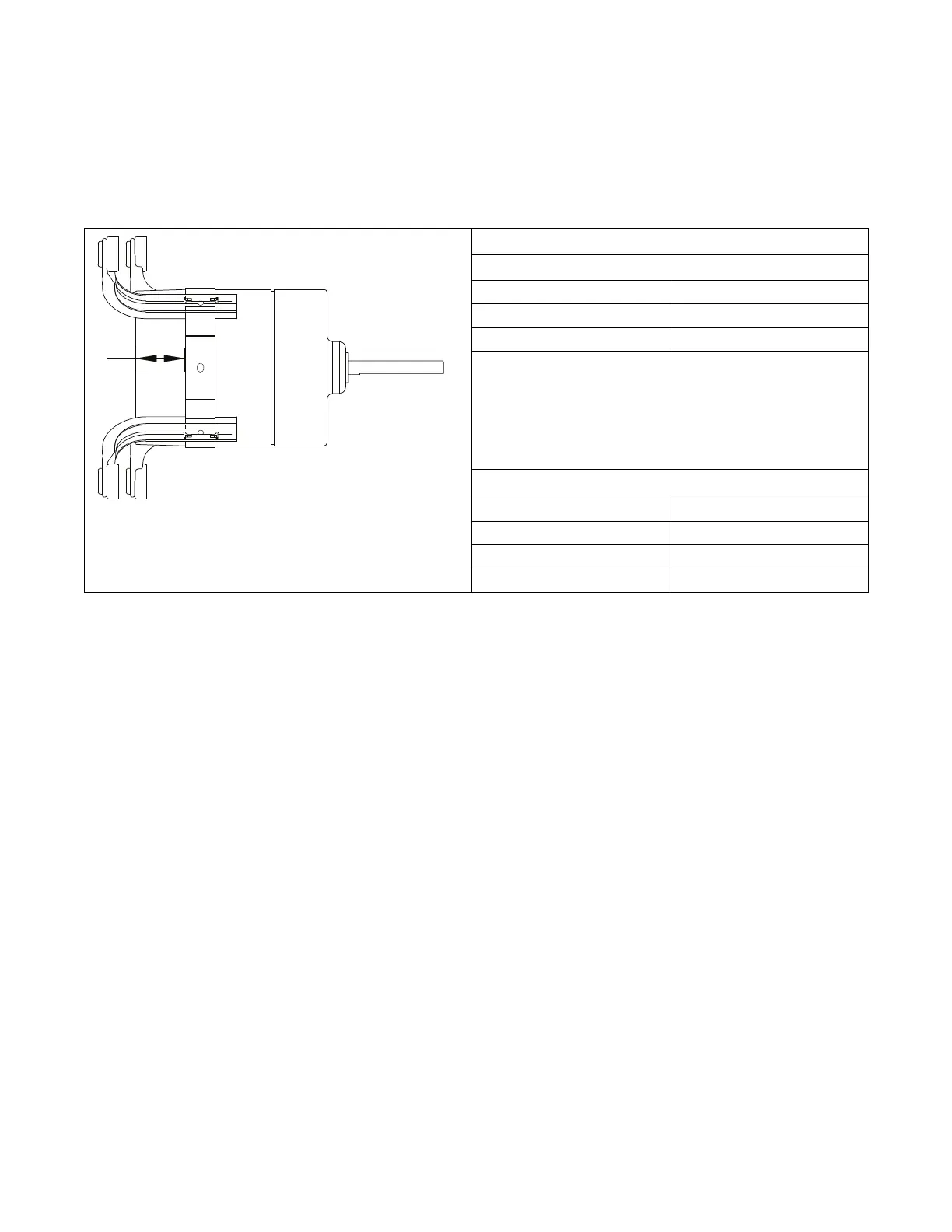

Belly Band Location
Distance from belly band to the front face of motor for
minimum vibration
A
Blower housings and wheel removed
from view for clarity.
For C Models only
Furnace Cabinet Size Dimension “A” (inches)
B 2.705
C 1.790
D 1.790
For D Models only
Furnace Cabinet Size Dimension “A” (inches)
B 2.75
C 3.54
D 3.79
