18-CD19D8-18 5
Installer’s Guide
From Dwg. 21C341885 Rev. 1

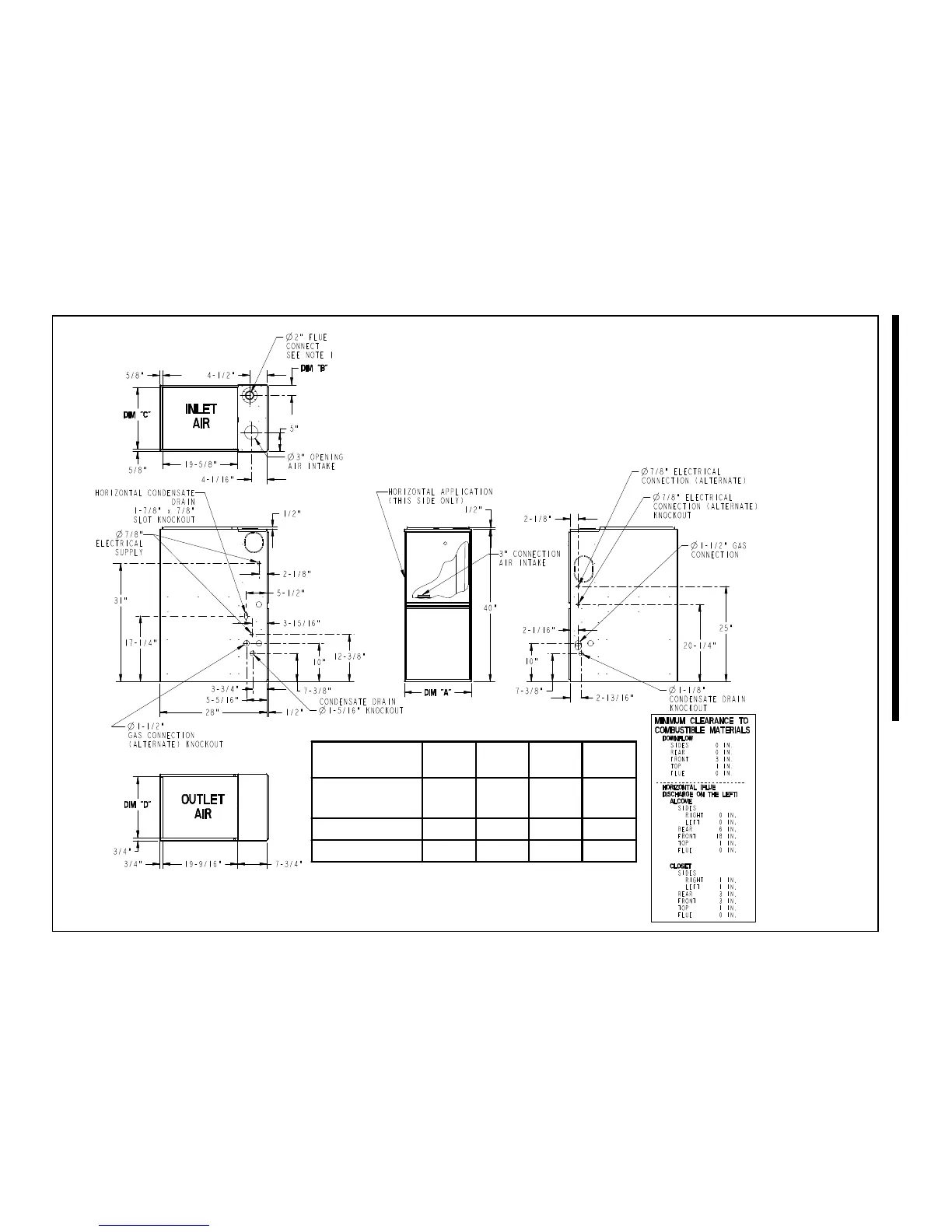

*DX2 DOWNFLOW / HORIZONTAL OUTLINE DRAWING
(ALL DIMENSIONS ARE IN INCHES)
Model
(See Note 1)
DIM "A" DIM "B" DIM "C" DIM "D"
*DX2B060A9362A
*DX2B080A9422A
17-1/2" 2-1/4" 16-1/4" 16"
*DX2C100A9482A 21" 2-1/2" 19-3/4" 19-1/2"
*DX2D120A9602A 24-1/2" 2-15/16" 23-1/4" 23"
* Prefix May Be "A" or "T" Notes:
1. Diameter of Vent Pipe may be limited
to 2-1/2" or 3" on some models at
different altitudes. Refer to the Vent
Length Table for proper application.
