Trane BAYHTFB318 Series User Manual

ACC-SVN150F-EN
9

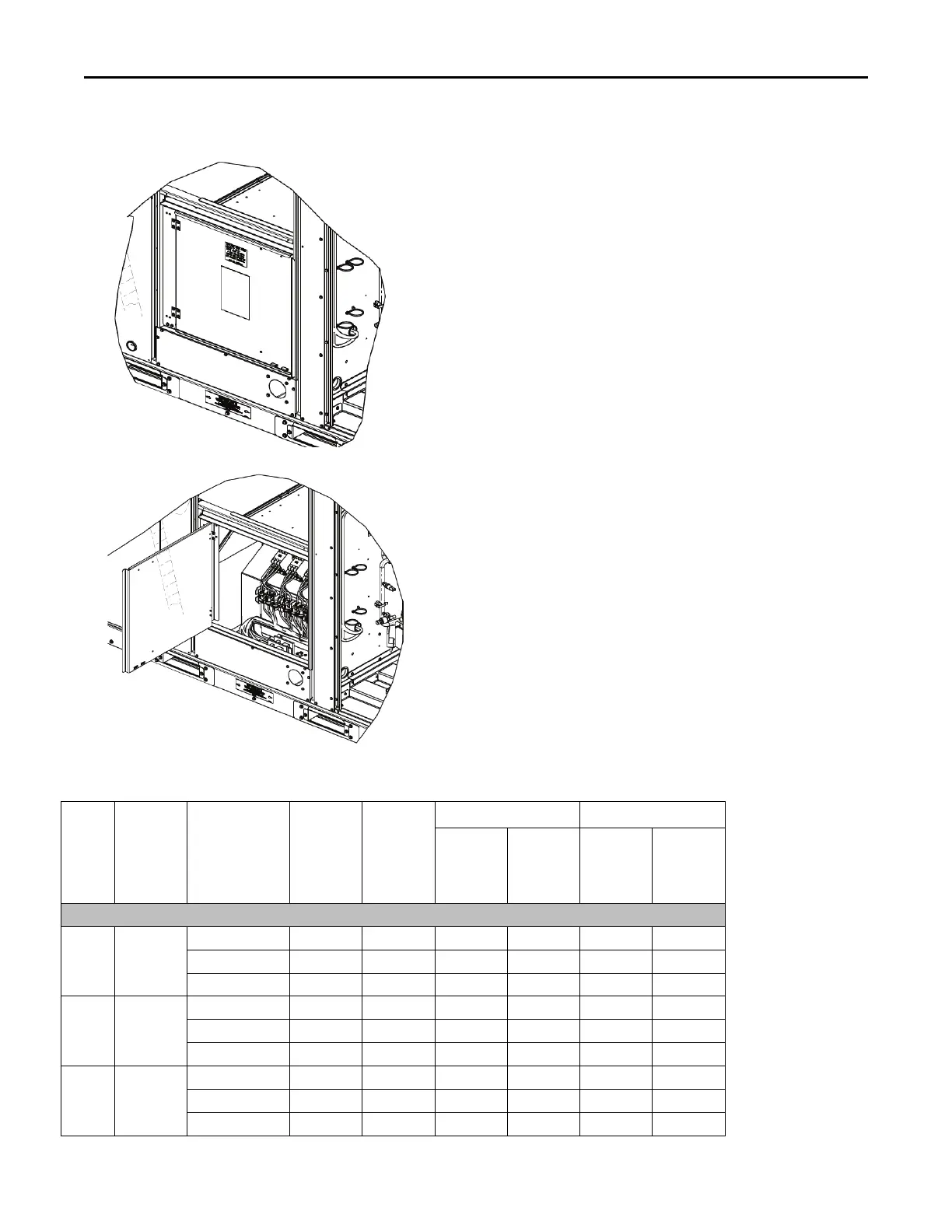

Figure 10. Install hinged access door assembly 14. Replace all the panels removed in step 2.
15. FFoorr TThhrroouugghh tthhee BBaassee EElleeccttrriicc CCoonnnneeccttiioonnss::
Customer conduit connects to the unit disconnect.
The power wires from the disconnect are routed
under the unit control box, along the outdoor
section partition panel and into the electric heater
section. These wires need to be connected to the
terminal block provided in the electric heater
controls assembly.
Refer to the Installation Instructions provided with
the Through the Base Electric Accessory kit for
more details.
Table 4. Unit wiring with electric heat (single point connection) - 60Hz
Tons
Unit Model
Number
Heater Model
Number
Heater kW
Rating
Control
Stages
Standard Indoor
Motor
Oversized Indoor
Motor
MCA
Max Fuse
Size or
Max
Circuit
Breaker
MCA
Max Fuse
Size or
Max
Circuit
Breaker
208/230 Volts Three Phase
15 EBC180A3
BAYHTFC318A
13.5/18
1 75 100 79 100
BAYHTFC336A
27/36
2
106/120 110/125 111/125 125/150
BAYHTFC354A
40.5/54
2
125/142 150/175 130/147 150/175
17½ EBC210A3
BAYHTFC336A
27/36
2
111/125 125/150 116/130 125/150
BAYHTFC354A
40.5/54
2
130/147 150/175 135/152 150/175
BAYHTFC372A
54/72
2
167/190 200/225 172/196 200/225
20 EBC240A3
BAYHTFD336A
27/36
2
111/125 125/150 116/130 125/150
BAYHTFD354A
40.5/54
2
130/147 150/175 135/152 150/175
BAYHTFD372A
54/72
2
167/190 200/225 172/196 200/225
IInnssttaallllaattiioonn
