Trane CGAD020C - Dimensional Data; Fig. 07 - Unit Dimensions - CGAD 020 C; NOTES; Fig. 08 - Top View of Fans

20 CG-PRC002A-EN
Dimensional
Data CGAD020C

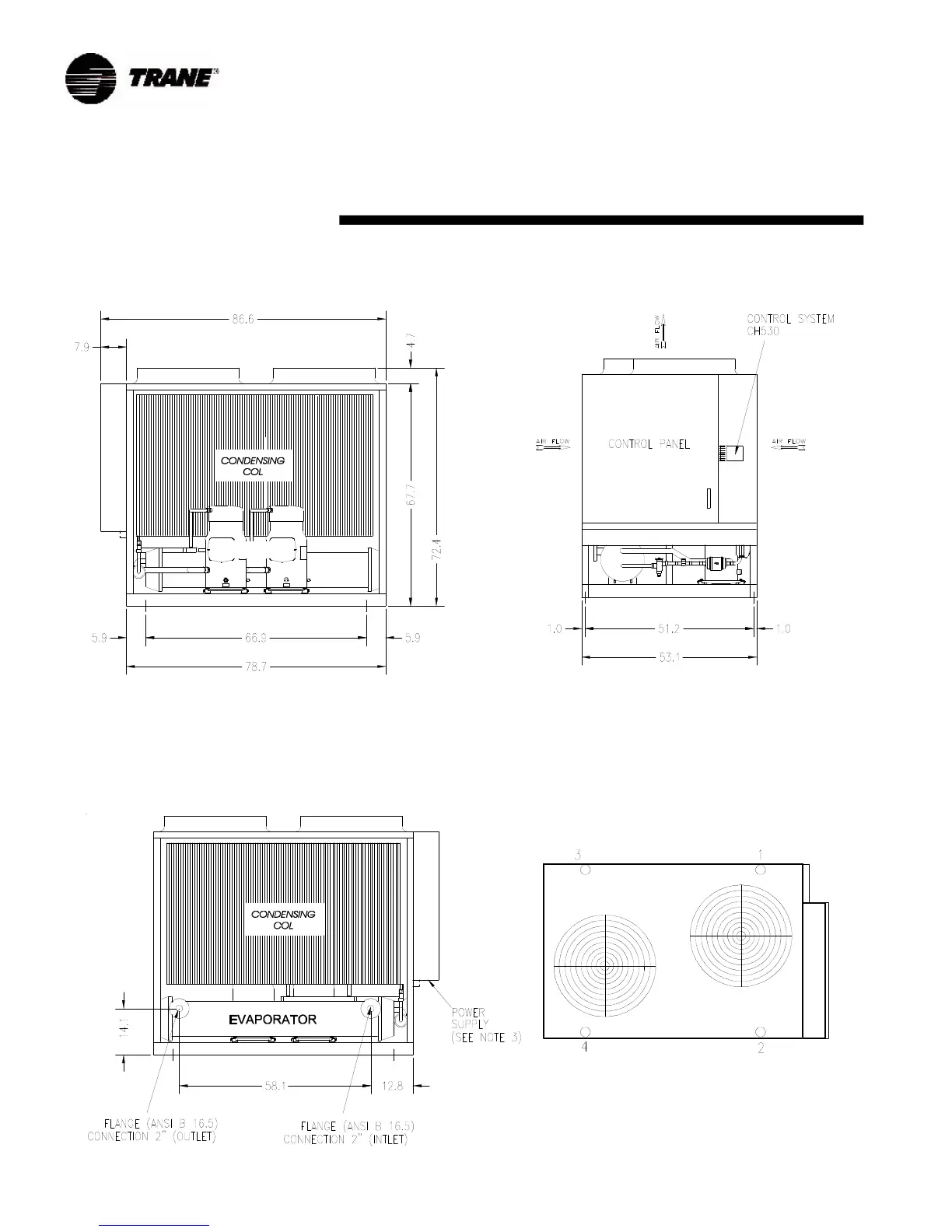

Fig. 07 - Unit Dimensions - CGAD 020C
NOTES:
1 - FIXING POINTS FOR VIBRATION INSULATORS (4 X.11,5-mm DIAM HOLES)
2 - VIBRATION INSULATORS ARE NOT SUPPLIED WITH THE EQUIPMENT.
Fig. 08 - Top View of Fans
COMPRESSORS
