CGWF-SVX01A-EN 27
Installation Mechanical

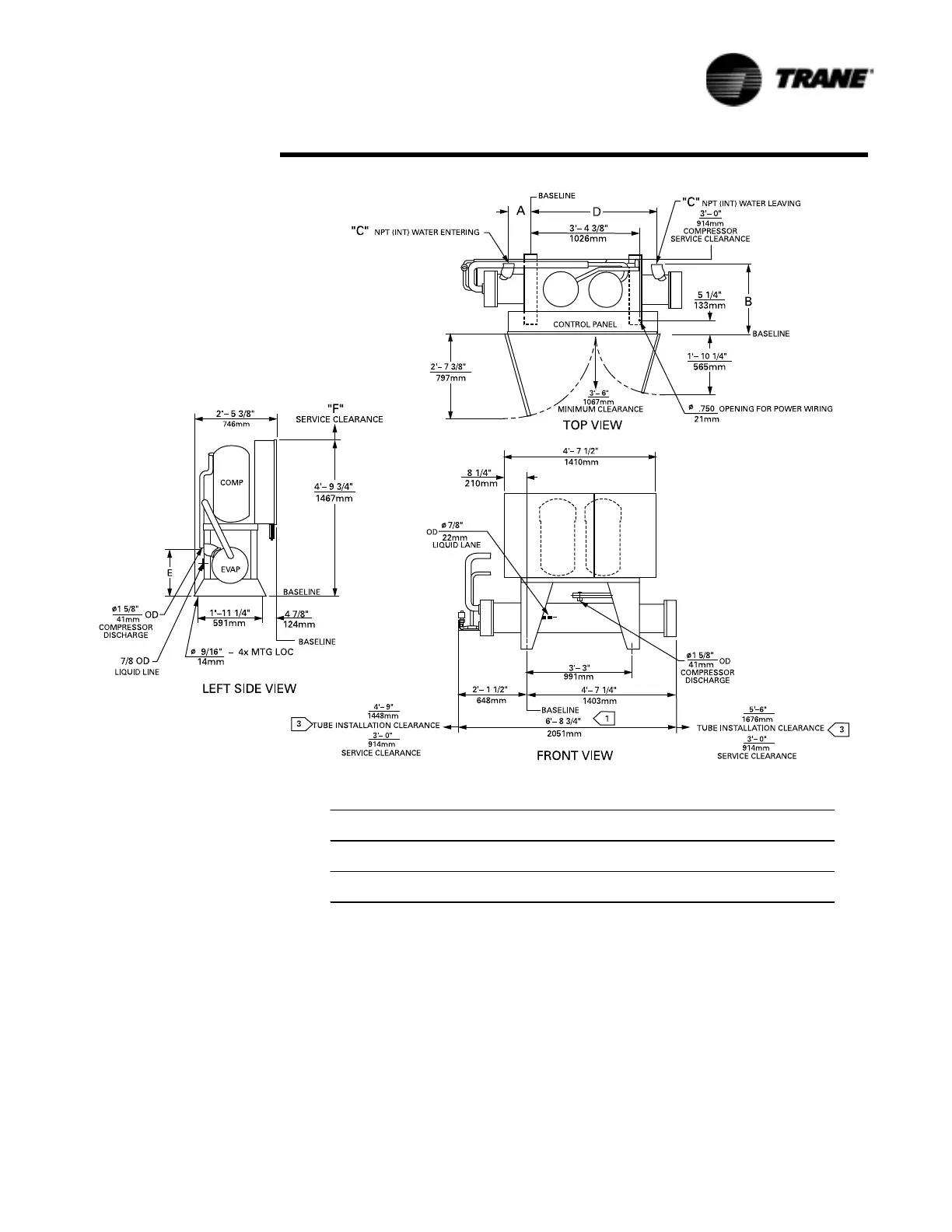

Figure 10 CCAF 20, 25 and 30 Ton Unit Dimensions, Recommended Clearances, Mounting Locations,
Electrical, Water Connection Size and Locations
Size A B C D E F
20 Ton 8 1/2" 3' - 11 1/2" 2" 2' - 0" 1' - 3 1/2" 3' - 3"
(216) (1207) (51) (610) (394) (1041)
25 Ton 8 1/2" 3' - 11 1/2" 2" 1' - 11 3/4" 1' - 3 1/2" 3' - 10"
(216) (1207) (51) (603) (394) (1041)
30 Ton 7 3/4" 3' - 10 3/4" 2 1/2" 2' - 1 7/8" 1' - 5 3/8" 3' - 10"
(197) (1187) (64) (657) (441) (1168)
Notes:
1. Dimensional tolerances ± 1/4" (3mm).
2. Tube installation at either end of evaporator.
3. Dimensions in ( ) are millimeters.
