28 CGWF-SVX01A-EN
Installation Mechanical

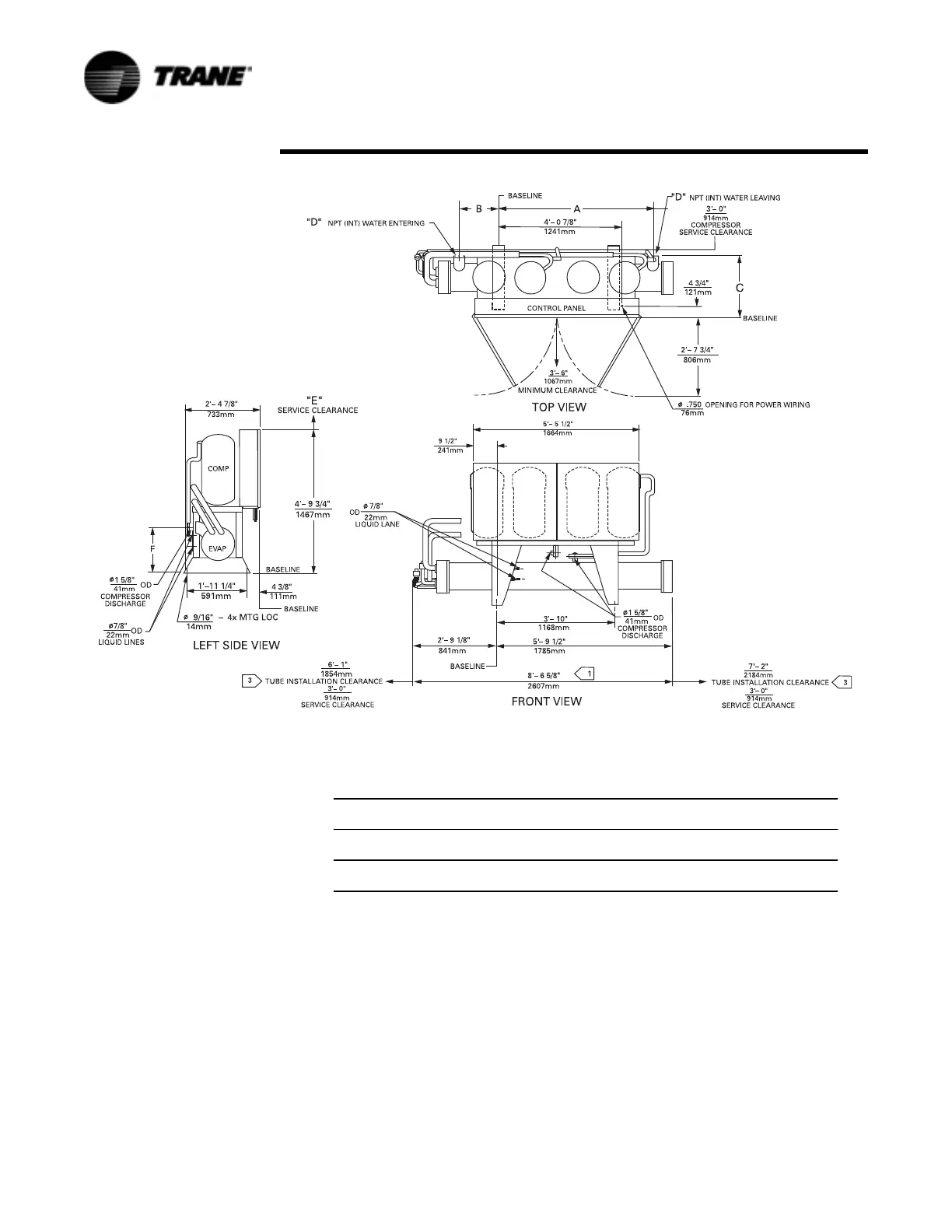

Figure 11 CCAF 40, 50 and 60 Ton Unit Dimensions, Recommended Clearances, Mounting Locations,
Electrical, Water Connection Size and Locations
Size A B C D E F
40 Ton 5' - 1 3/4" 1' - 3 3/4" 1' - 11 1/4" 2 1/2" 3' - 5" 1' - 4 1/4
(1568) (400) (591) (64) (1041) (413)
50 Ton 5' - 1 1/2" 1' - 3 1/2" 2' - 1 1/8" 3" 3' - 10" 1' - 6 1/8"
(1562) (394) (638) (76) (1168) (480)
60 Ton 5' - 1 1/2" 1' - 3 1/2" 2' - 0 7/8" 3" 3' - 10" 1' - 6 1/8"
(1562) (394) (632) (76) (1168) (480)
Notes:
1. Dimensional tolerances ± 1/4" (3mm).
2. Tube installation at either end of evaporator.
3. Dimensions in ( ) are millimeters.
