Water-to-Air Heat Exchanger
Figure 15 shows the piping diagram of the heat-exchanger
assembly. Figure 16, p. 32 shows the dimensions of the
heat exchange
r assembly as well as the locations of piping
and electrical connections.

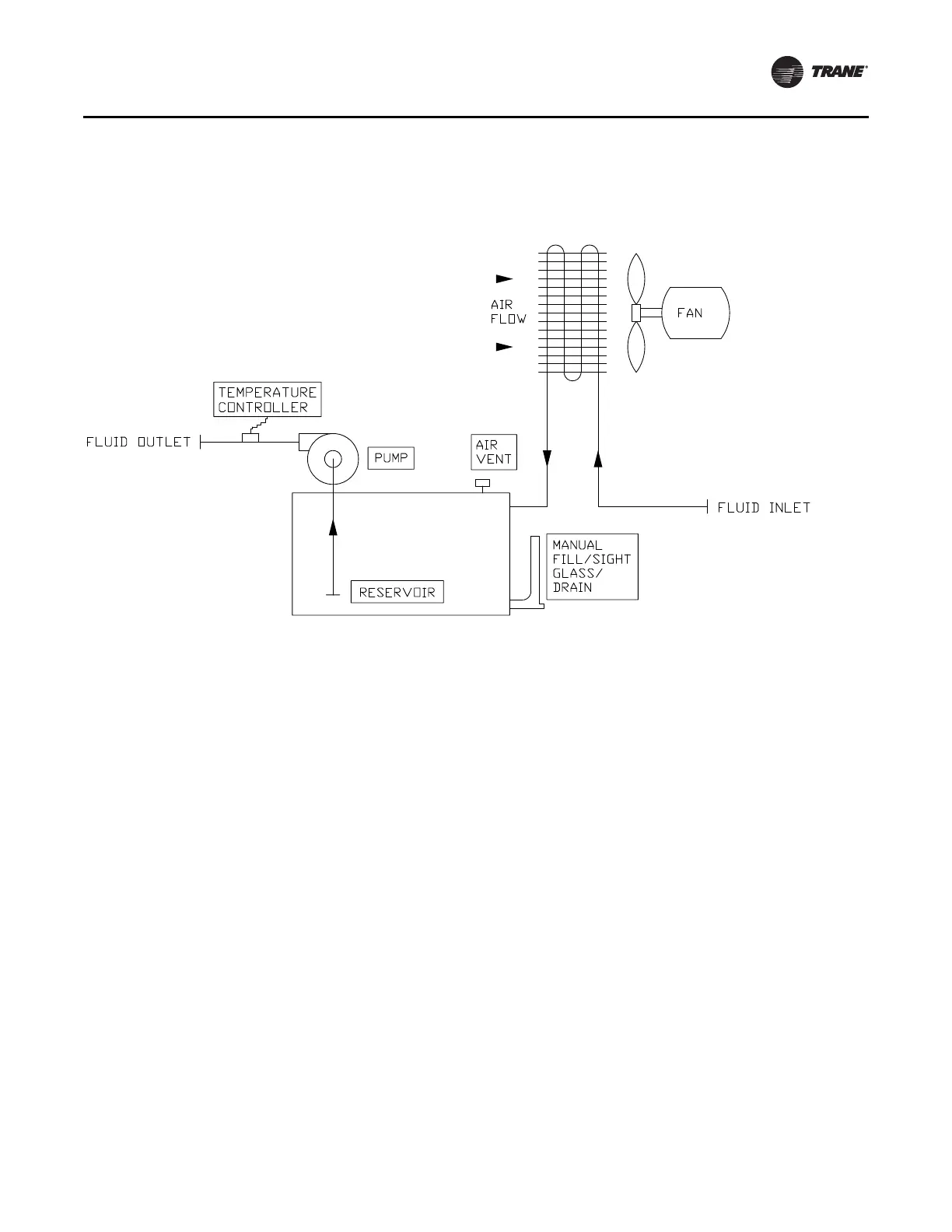

Figure 15. Water-to-air heat
exchange
r piping diagram
(a)
(a)Material courtesy of DIMPLEX Thermal Solutions.
