Trane CLCH-IM-16A - Page 45

42 CLCH-IM-16A

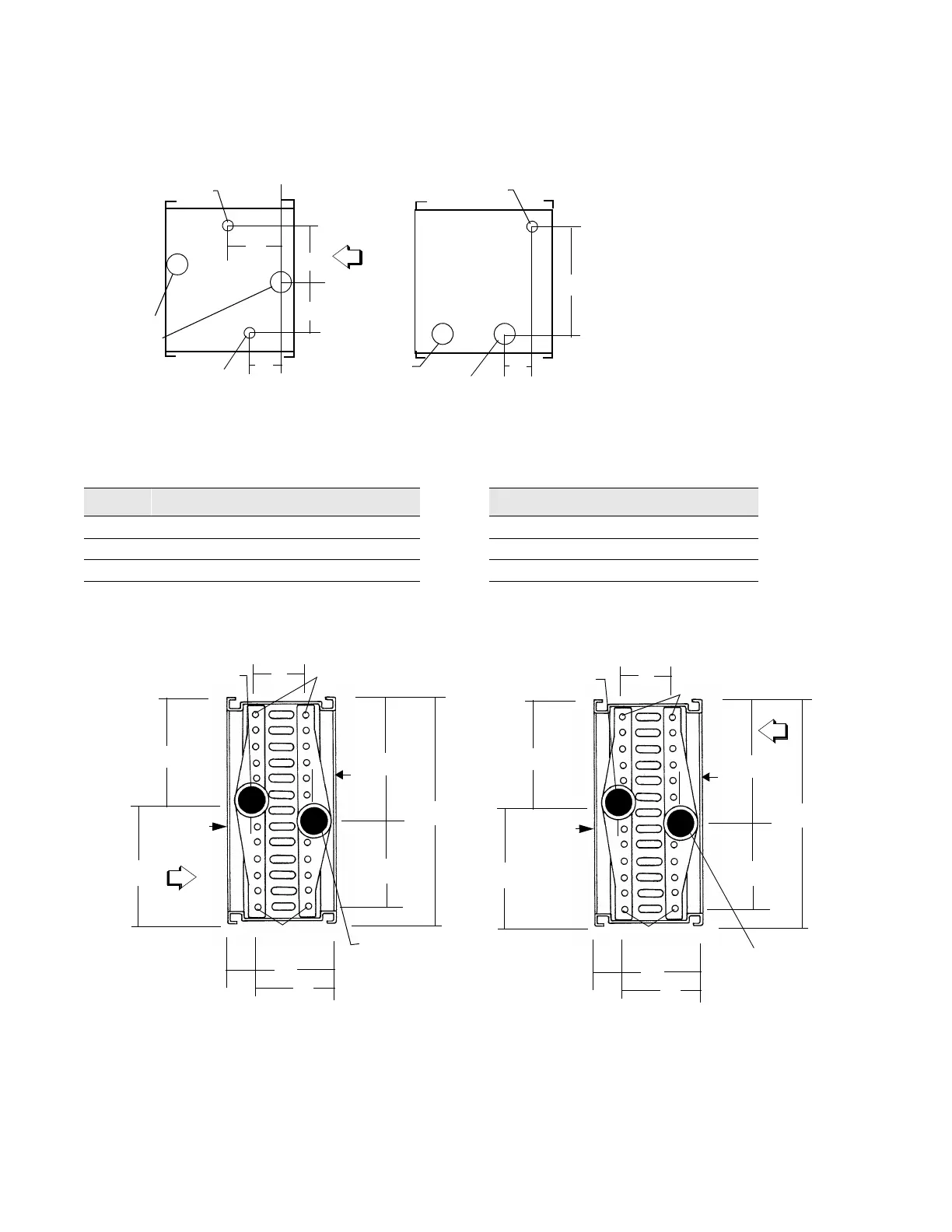

Figure 36
Coil Type P8, 18, 24” Headers with Drain and Vent Locations
Figure 37
Coil Type W with 18, 24, 30 and 33” Headers and with Drain and Vent Locations
1/2” NPT Vent
1/2” NPT Vent
1/2” NPT Drain
Water Inlet
Water Outlet
Water Outlet
Water Inlet
3”
AIR
FLOW
4 Row 8 Row
A
A
B
C
D
Table 41
Coil Type P8, 18, 24” Headers (4-Row) Dimensions in inches
Header A B C D
18 7.5 9 1.2 1.2
24 10.5 12 0 4.5
30 13.5 15 1.2 1.2
Table 42
Coil Type P8, 18, 24” Headers (8-Row) Dimensions in inches
Header A
18 16.5
24 22.5
30 28.5
G
A
B
C
D
E
F
H
G
A
B
C
D
E
F
H
2-1-2” NPT (INT) Return
1/2” NPT (INT) Vent
1/2” NPT (INT) Drain
2-1-2” NPT (INT) Supply
2-1-2” NPT (INT) Return
1/2” NPT (INT) Vent
1/2” NPT (INT) Drain
2-1-2” NPT (INT) Supply
Left Hand Coil Right Hand Coil
AIR
FLOW
AIR
FLOW
