Installation:
Electrical
Interconnecting Wiring
Typical equipment room conduit
layouts with and without unit-
mounted starters are shown in
Figures 15 and 16, respectively.
IMPORTANT
Keep in mind that the
interconnecting wiring between
the starter panel, compressor
and UCP control panel is factory-
installed with unit-mounted
starters but must be field-
installed when a remote-
mounted starter is used.

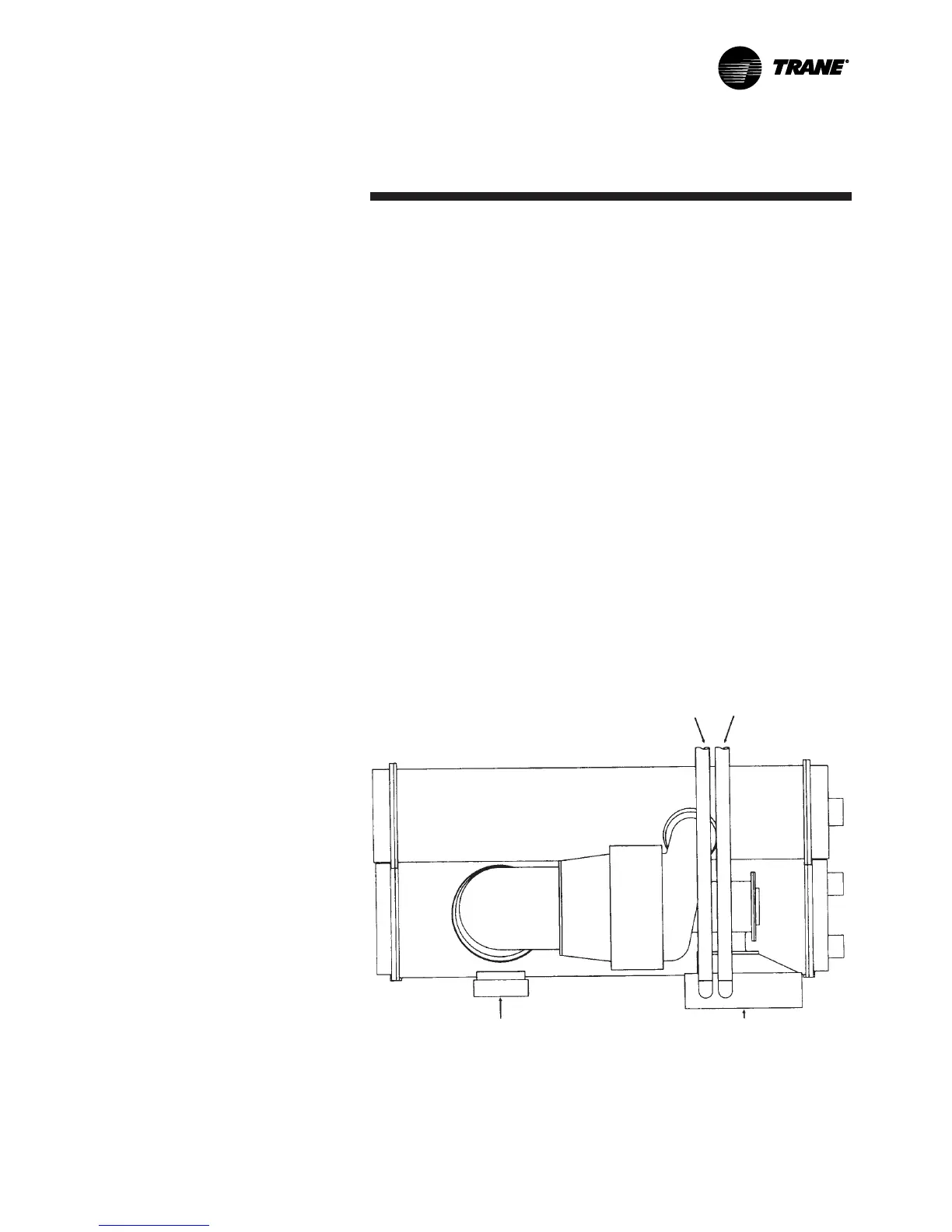

Figure 16. Typical equipment room layout with unit-mounted, Wye-
Delta
Line Side Power
Conduits
Unit Control
Panel
Unit Mounted
Starter
Note: See Starter submittal drawing for location of incoming wiring to the starter.
