Installation: Mechanical
36" (914 mm)
Recommended
clearance
Height
Width
18" (457 mm)
Recommended
clearance
CL1/CL2
Length
CL1/CL2
48" (1219 mm)
Recommended
clearance
Table 7. Dimensions for figure 13
Clearance Tube Pull
Feet-Inch (mm)
Compressor Shell Size CL1 CL2LengthHeight Width
400-500 500 13' 11" 3' 7" 13' 5" 6' 11" 6' 6"
(4.235) (1.092) (4.083) (1.790)(1.984)
560-700 700 13' 11" 3' 7" 13' 5" 6' 11" 6' 10"
(4.235) (1.092) (4.083) (1.790)(2.083)
740-1000 1000 13' 11" 3' 7" 13' 5" 8' 4" 7' 6-3/4"
(4.235) (1.092) (4.083) (2.540)(2.305)
Notes:
CL1 at either end of the machine and is required for tube pull clearance.
CL2 is always at the opposite end of the machine from CL1 and is required for service clearance.
Add 14-5/8" (37.1 cm) on each end for the water box.
Unit Dimensions With Unit
Mounted Starters

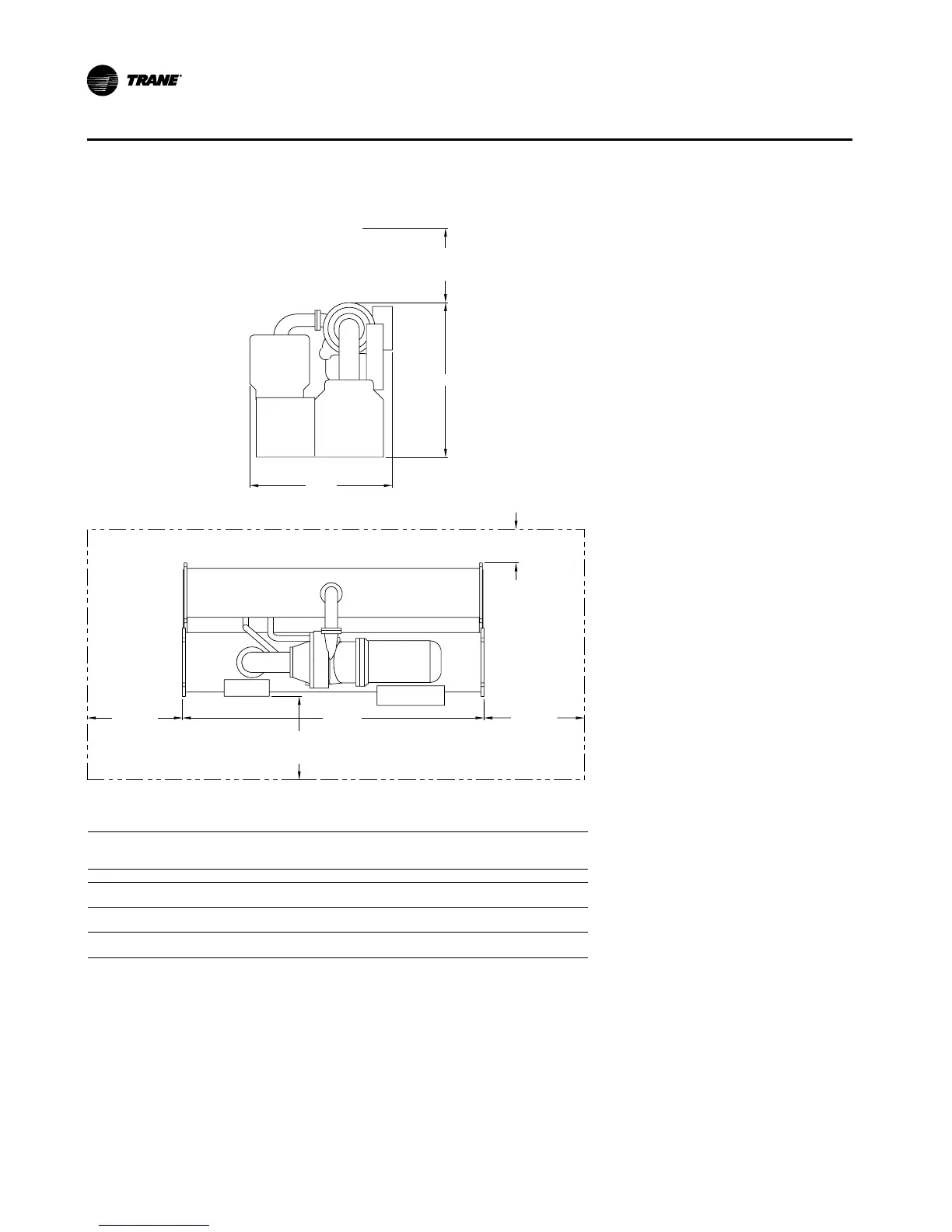

Figure 13. Recommended operating and service clearances –
Model CVGF with unit-mounted starters
Dimensions Feet-Inch (m-meters)
