Trane CVGF500 - Interconnecting Wiring

Installation: Electrical
Interconnecting Wiring
Typical equipment room conduit layouts with and without unitmounted starters are
shown in Figures 28 and 29, respectively.
IMPORTANT
Keep in mind that the interconnecting wiring between the starter panel, compressor
and UCP control panel is factoryinstalled with unit-mounted starters but must be fiel-
dinstalled when a remotemounted starter is used.

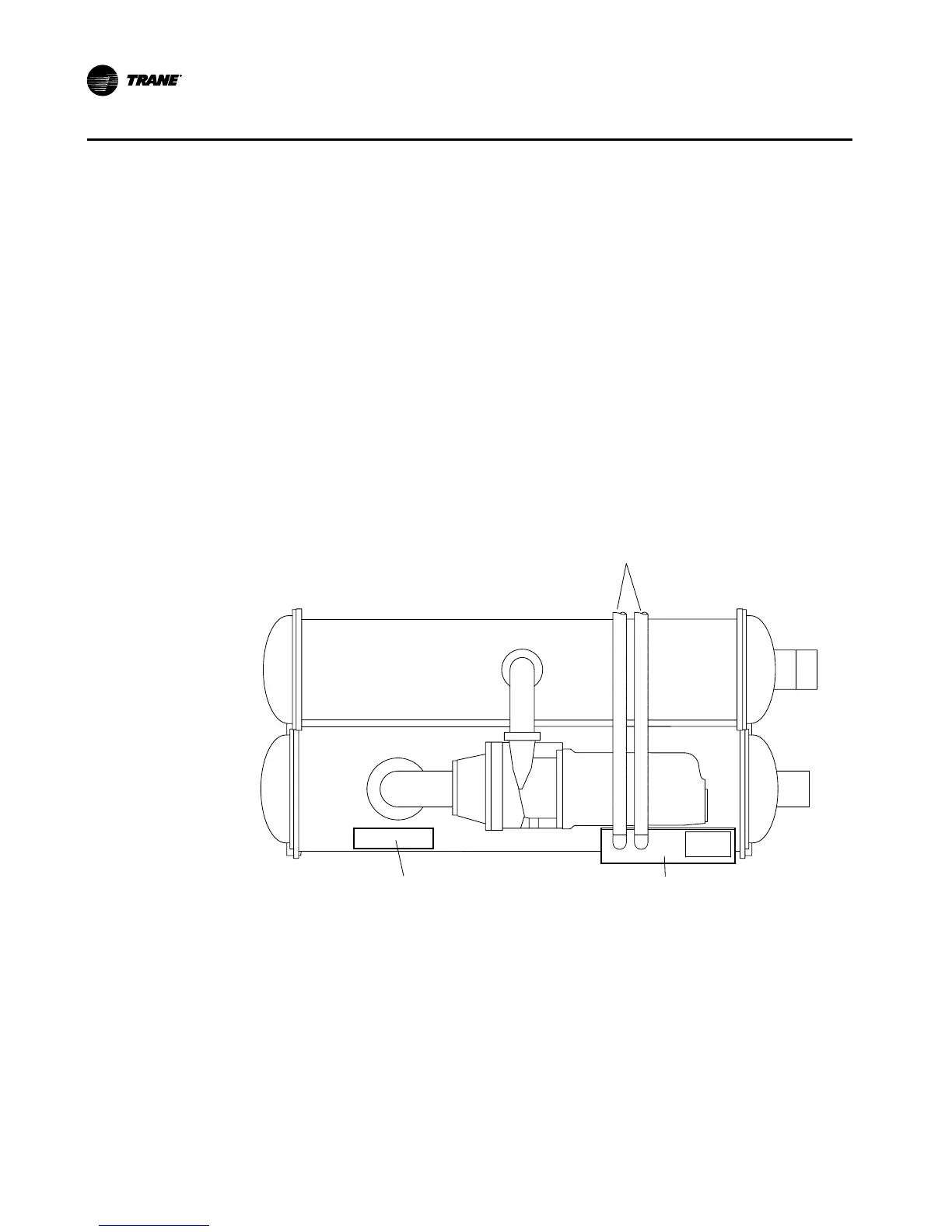

Figure 28. Typical equipment room layout with unit-mounted, Wye-Delta
Line Side Power
Conduits
Unit Control
Panel
Unit Mounted
Starter
Note:
See Starter submittal drawing for location of incoming wiring to the starter.
CVGF-SVX03B-EN
80
