Unit Installation
Note: CXAJ/CGAJ045/065 single-module combination includes 8 reverse return connection units at most, and CXAJ/
CGAJ130 single-module combination includes 4 reverse return connection units at most.
Note: CXAJ/CGAJ045/065 single-module combination includes 4 direct return connection units at most, and CXAJ/
CGAJ130 single-module combination includes 2 direct return connection units at most.

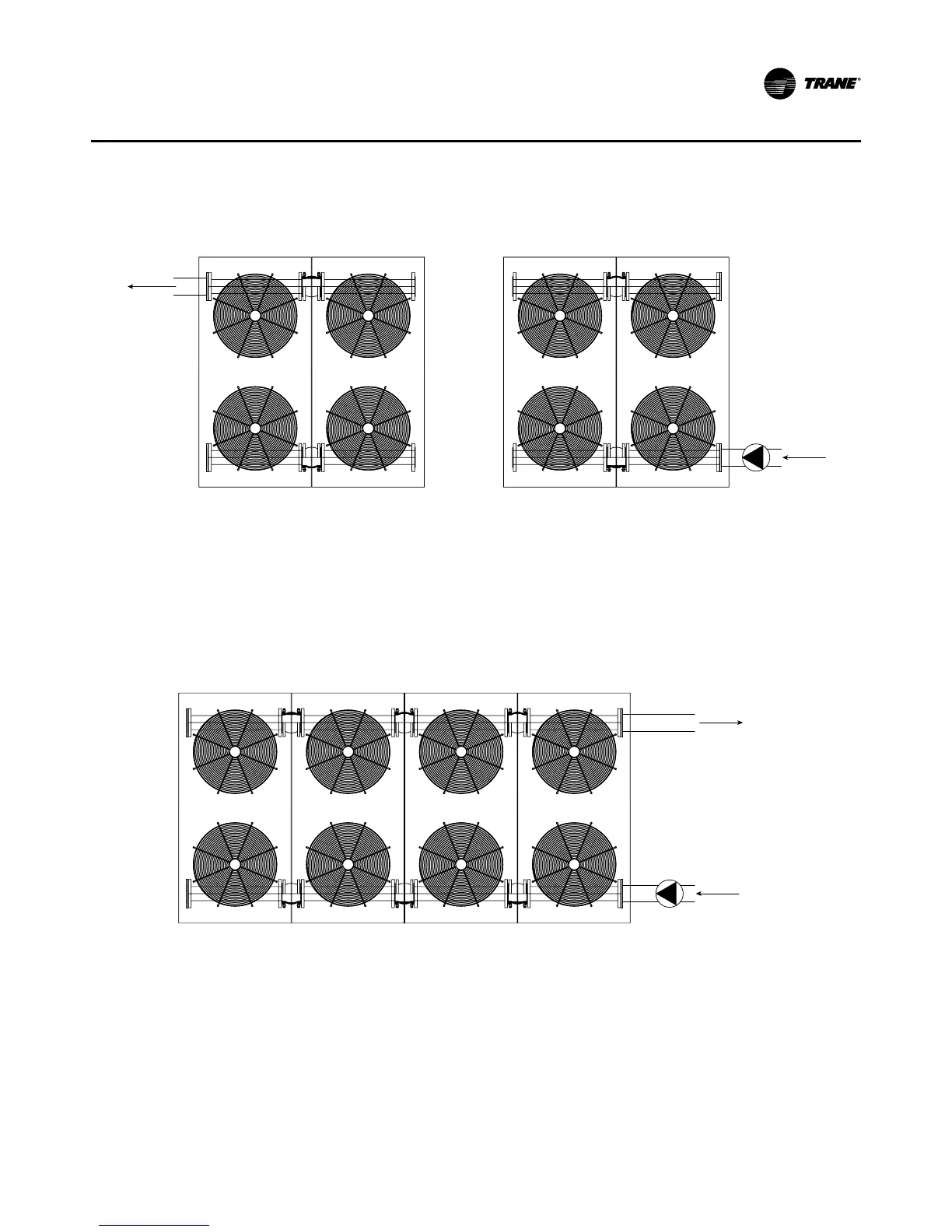

Single-module Combination Diagram (Reverse Return Connection)
Single-module Combination Diagram (Direct Return Connection)


WA
TER
INLET
PUMP
WATER
OUTLET
WATER
INLET
PUMP
WATER
OUTLET
