70 Direct-Fired Make-up Air • MUA-SVX01A-EN
Trouble Shooting
1. RM7895, RM7896; 120 VAC, 50/60 HZ; EC7895; 220-240 VAC, 50/60 HZ Power
Supply. Provide disconnect means and overload protection as required.
2. Do not connect any wires to unused terminals.
3. For EC7895, A 220 to 240 VAC to 120 VAC, 10 VA minimum step down
transformer (not provided) must be used to drive the shutter.
4. See flame detector specifications for correct wiring.
5. Airflow switch check feature is for the RM7895D, RM7896D.
6. RM7896C,D (only).
7. RM7895C1020, RM7896C1036 PFEP 10-seconds (only).
8. RM7895C1020, RM7896C1036; during first 8-seconds of PFEP. When a flame
signal is detected, terminal 10 is de-energized. If flame signal is lost, terminal
10 will re-energize.

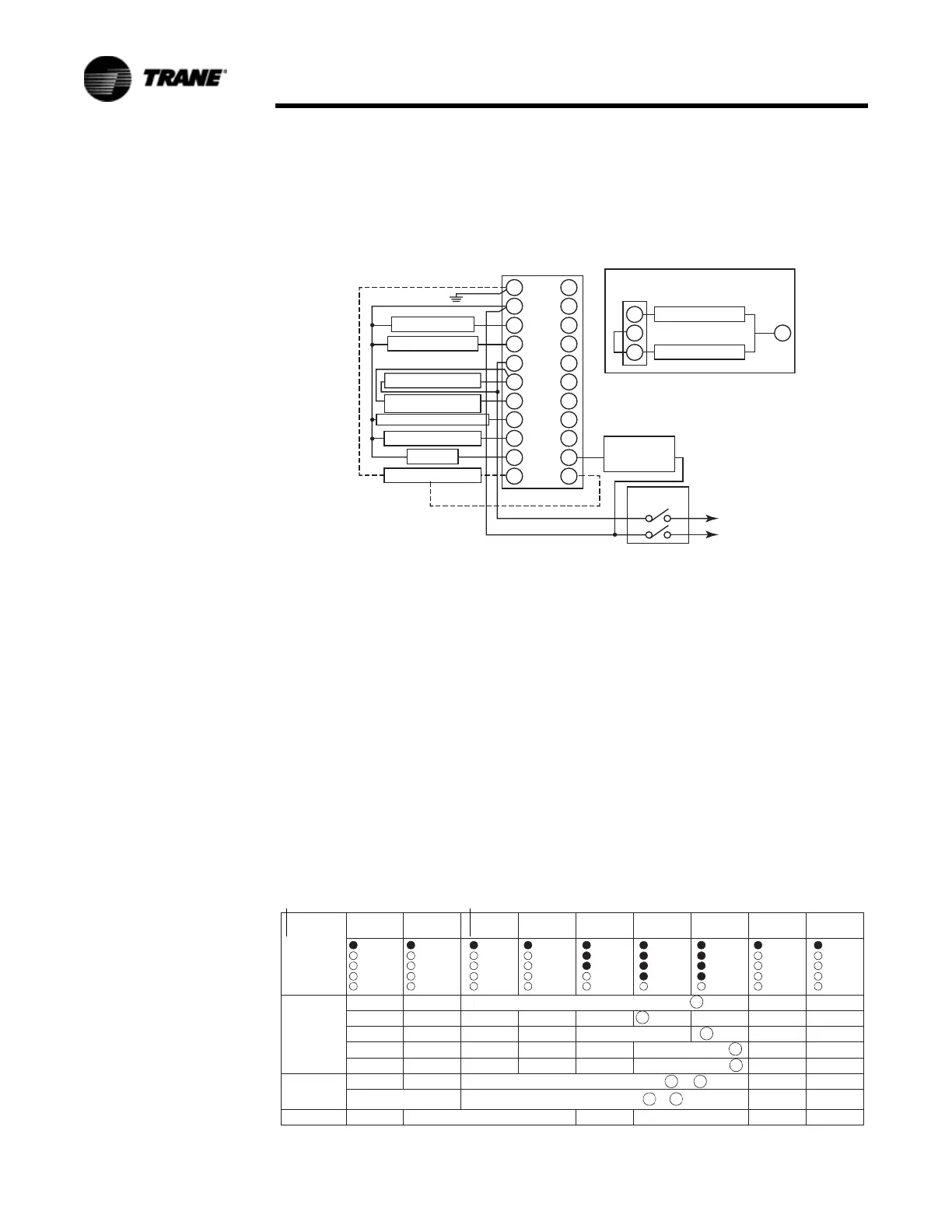

Figure 25. Wiring subbase and sequence chart for RM7895C/D, EC7895C/D,
RM7896C/D
