Unit Clearances, Curb Dimensions, and Dimensional Data
OAU-SVX007A-EN 39
Note: Certain options require auxiliary cabinet. Refer to
project-specific unit submittals.
Curb Dimensions
Note: Certain options require auxiliary cabinet. Refer to
project-specific unit submittals.

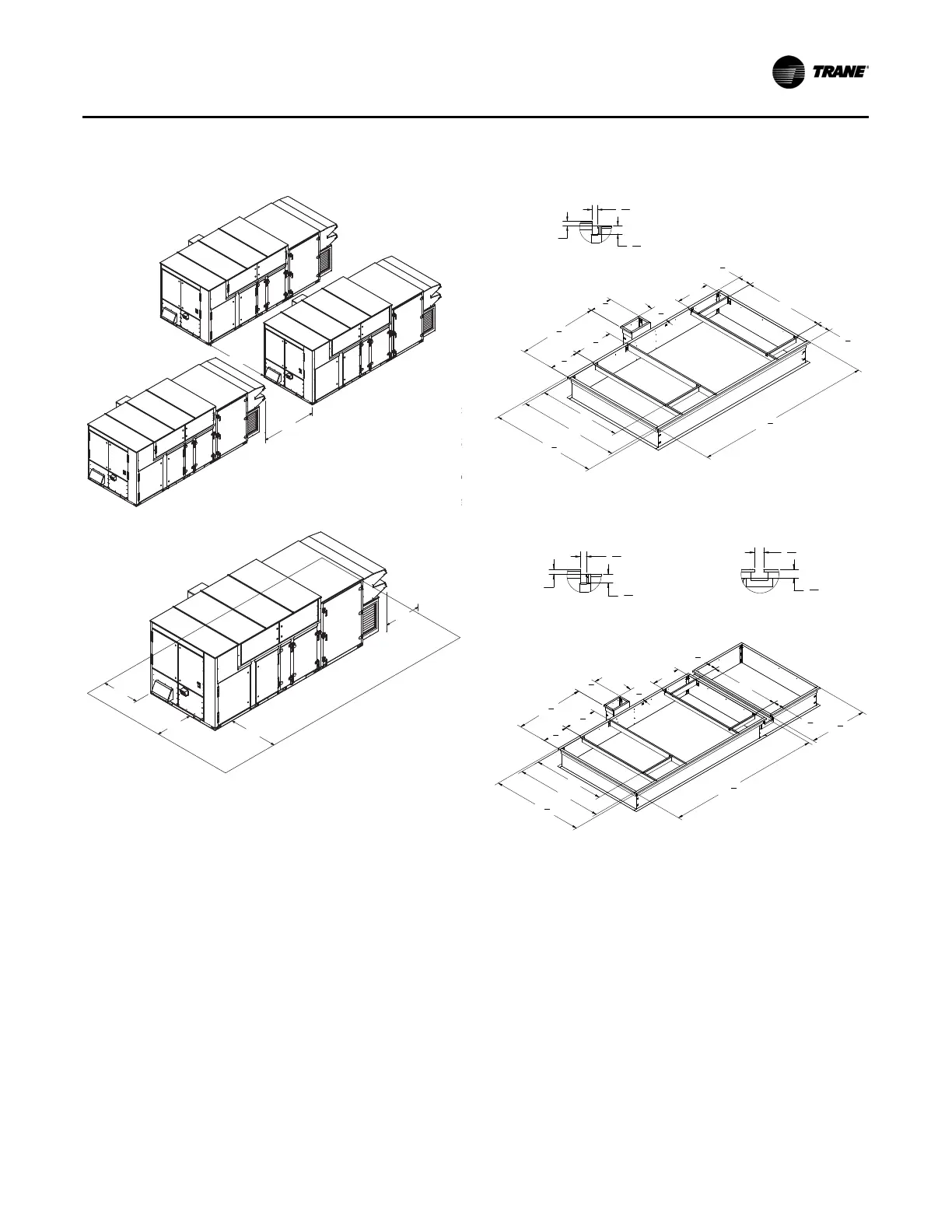

Figure 53. Typical installation clearances for indirect-
fired OAGE unit with auxiliary cabinet (in.)
Figure 54. Unit curb data for indirect-fired OAGE (in.)
Figure 55. Unit curb data for indirect-fired OAGE with
auxiliary cabinet (in.)
