Unit Weight and Rigging
70 OAU-SVX007A-EN
Rigging
Table 7. Typical unit weights—units with horizontal
return section and auxiliary cabinet
Model
Number
Operating Weight (lb) Shipping Weight (lb)
Min Max Min Max
OABE036* 1657 1841 1905 2089
OABE048* 1674 1858 1922 2106
OABE060* 1674 1858 1922 2106
OABE072* 1722 1906 1970 2154
OABE084* 1722 1906 1970 2154
OABE096* 1754 1938 2002 2186
OABE108* 1798 1982 2046 2230
OAGE120* 4402 5111 4402 5111
OAGE144* 4402 5161 4402 5161
OAGE180* 4367 5167 4367 5167
OAGE210* 4531 5331 4531 5331
OAGE240* 4606 5424 4606 5424
OAGE264* 4643 5460 4643 5460
OAGE300* 4763 5590 4763 5590
OAGE360* 4784 5612 4784 5612
OAKE144* 4583 5248 4583 5248
OAKE180* 4583 5248 4583 5248
OAKE210* 5002 5819 5002 5819
OAKE240* 5030 5847 5030 5847
OAKE264* 5030 5847 5030 5847
OAKE300* 5055 5874 5055 5874
OAKE360* 5063 5882 5063 5882
OANE360* 7217 8200 7217 8200
OANE420* 7532 8515 7532 8515
OANE480* 7625 8637 7625 8637
OANE540* 7692 8649 7692 8649
OANE600* 7837 8919 7837 8919
OANE648* 7849 8931 7849 8931
Note: Minimum and maximum weights vary widely due to the highly configurable
nature of the product.

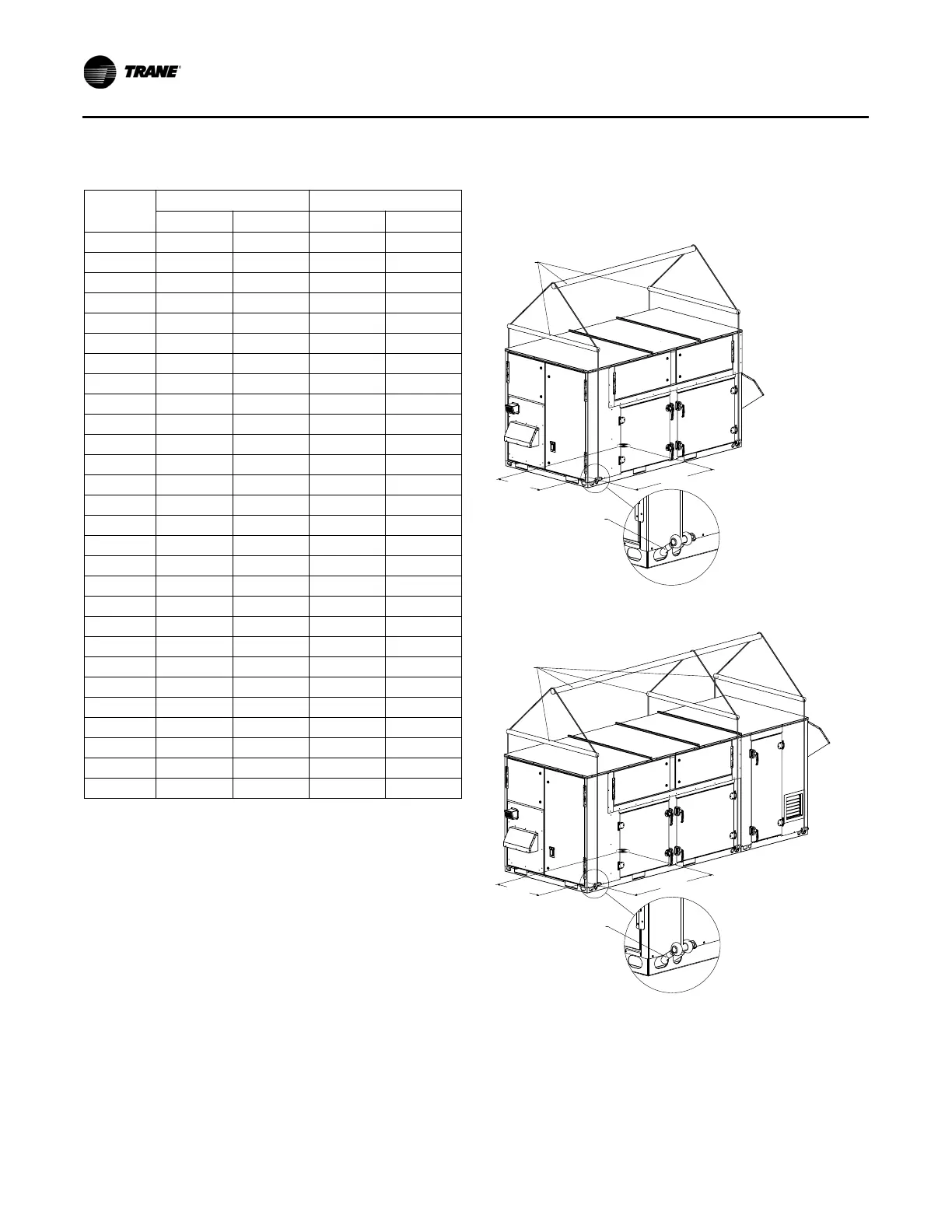

Figure 106. Rigging
/(1*7+
:,'7+
635($'(5
%$56
6&5(:3,16+$&./(
/2&$7,216
4-point lift
Model: OAB, OAG
/(1*7+
:,'7+
635($'(5
%$56
6&5(:3,16+$&./(
/2&$7,216
6-point lift
Model: OAB, OAG
