Unit Clearances, Curb Dimensions, and Dimensional Data
OAU-SVX007A-EN 51

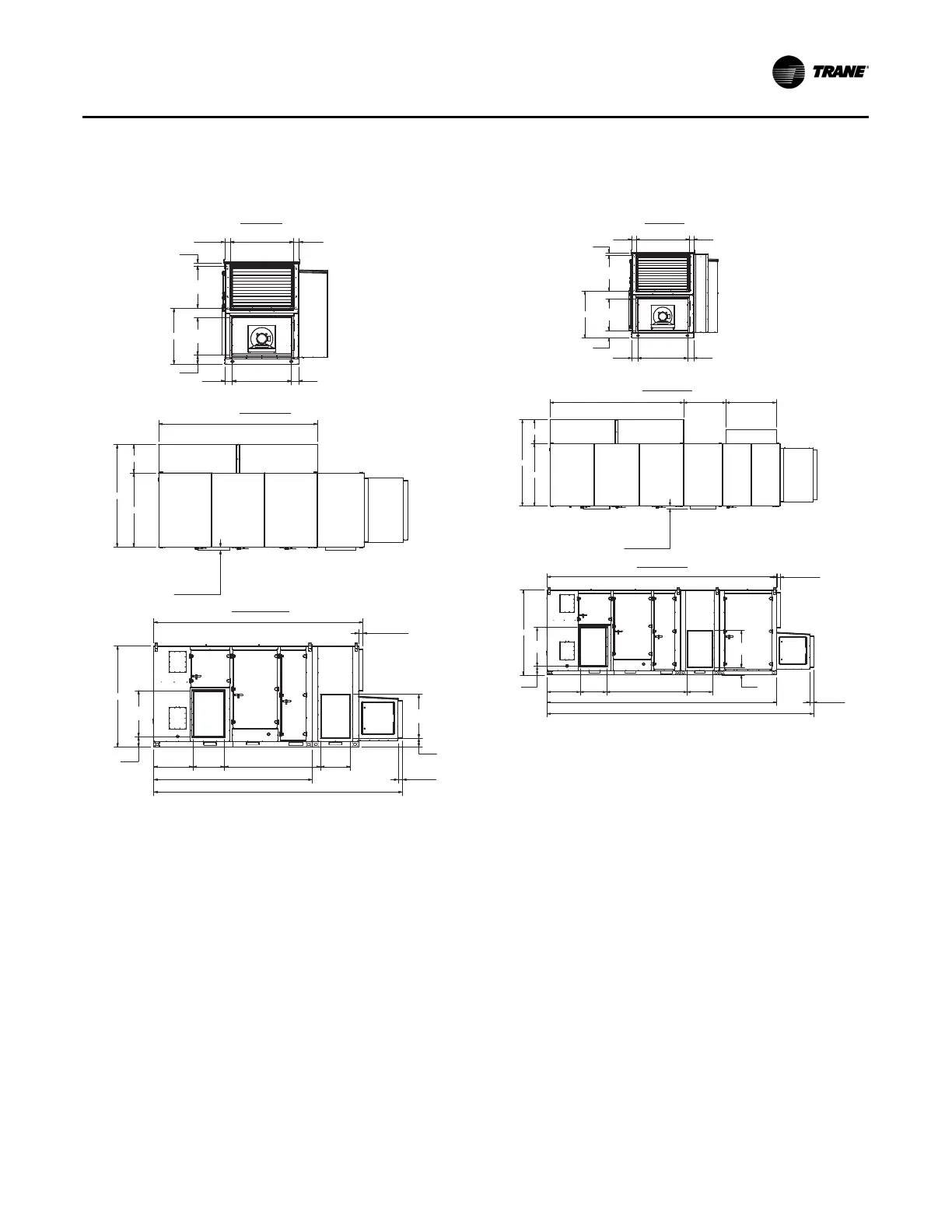

Figure 80. Unit dimensional data for indoor OANE
WSHP with horizontal supply/return (no ERV)
(in.)
2.76
6.63
PE duct
53.75
6.63
8.13
PE duct
50.81
34.25
Intake duct
38.50
Intake duct
57.50
4.96
5.00
BACK VIEW
93.38
25.92
67.47
144.28
2.88
SA/RA duct
flange
(Typical)
BOTTOM VIEW
ARAS
8.10
35.57
92.07
SA
28.56
9.46
144.00
42.00
27.25
RA
225.96
SA
FLANGE
PE DUCT
4.00
190.27
87.31
4.00
Intake duct
flange
40.00
RA
LEFT SIDE VIEW
Figure 81. Unit dimensional data for indoor OANE
WSHP with horizontal supply/return and ERV
(in.)
6.63
8.14
PE duct
50.78
34.25
38.50
Intake duct
4.96
Intake duct
57.50
5.00
6.63
PE duct
53.75
2.79
BACK VIEW
93.38
25.92
144.28
45.85
67.47
54.38
2.87
RA/SA
duct flange
(Typical)
BOTTOM VIEW
SA
RA
8.10
248.14
35.57
92.07
27.25
RA
SA
28.56
PE duct
flange
4.00
248.62
9.46
288.03
87.31
SA
42.00
4.00
Intake duct
flange
40.00
RA
LEFT SIDE VIEW
