Trane IntelliPak SCWF 72 User Manual

26
SCXF-SVX01Q-EN

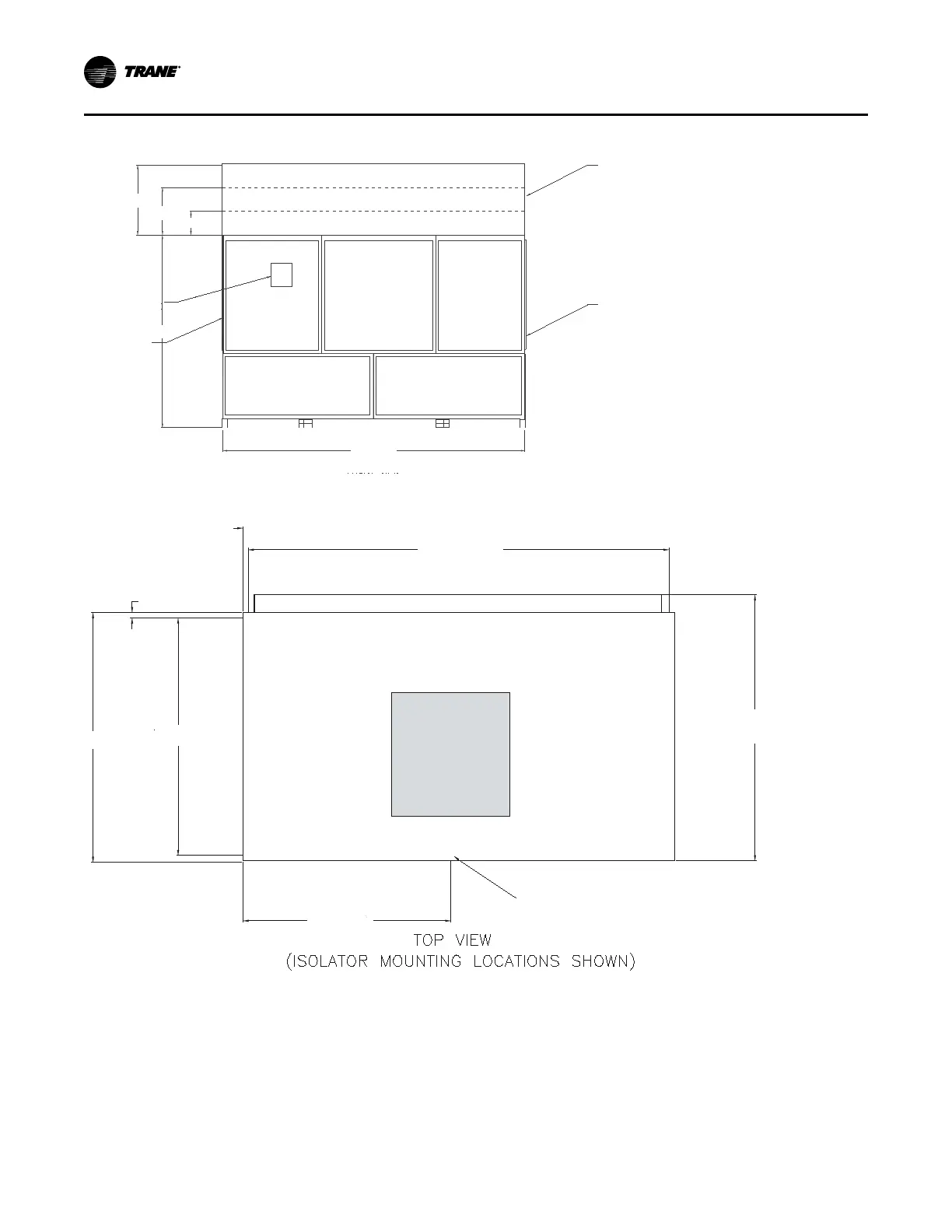

Figure 7. 90 to 110 ton self-contained: front view
Ext. Height
Std. Height
Low Height
43.50"
27.75"
19.625"
Human
Interface
89.50"
Unit Control
Box
140.00"
VFD/
Interface
Plenum (low, standard,
and extended height shown)
Figure 8. 90 to 110 ton self-contained: top view (isolator mounting locations shown)
72.00"
3.50"
133.00"
69.75"
3.50"
Filter Rack
*
*
*
*
*
*
Isolator Mounting Location (x6)
on bottom of unit
80.50”
86.25”
DDiimmeennssiioonnaall DDaattaa
