Trane IntelliPak SCWF 72

30
SCXF-SVX01Q-EN
Airside Economizer

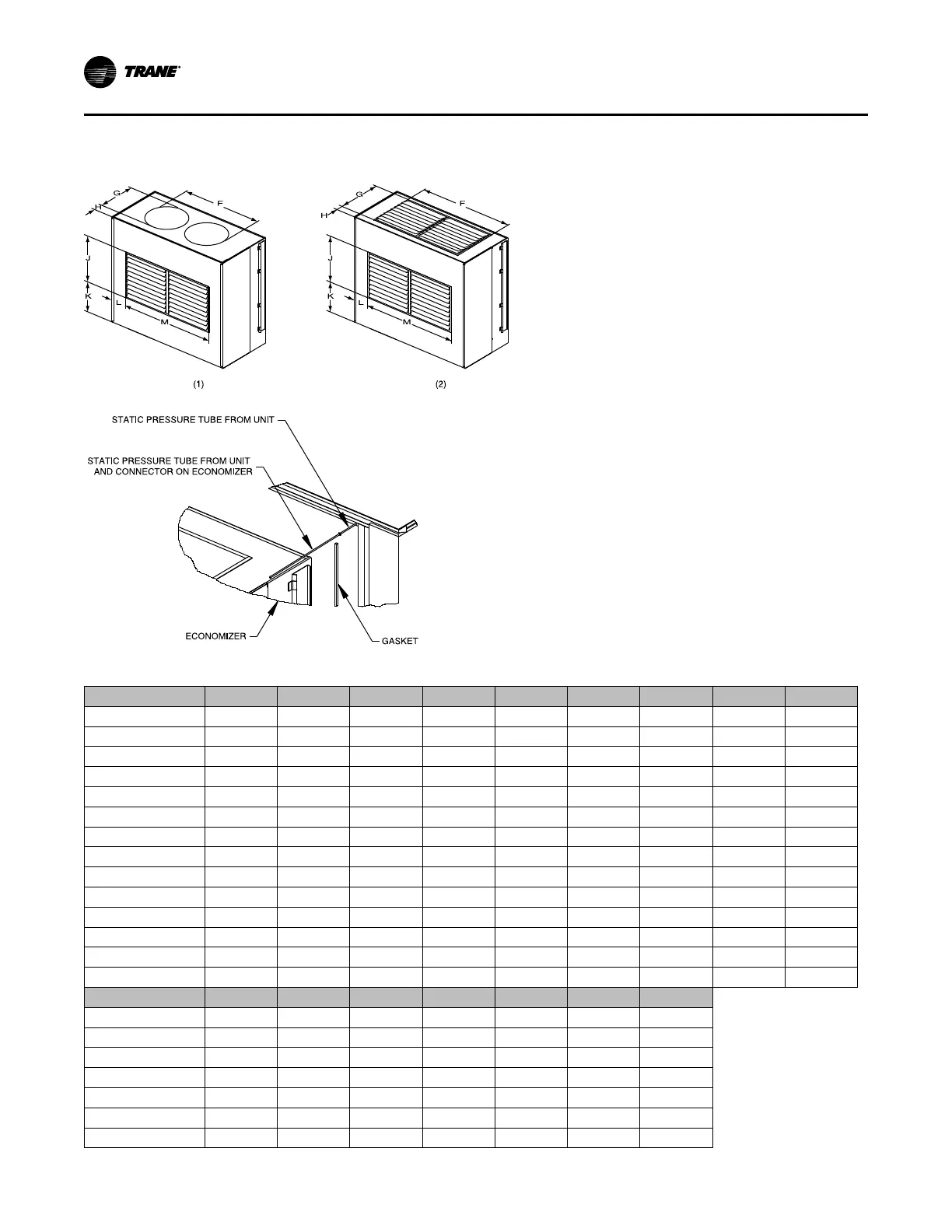

Figure 13. Airside economizer
Table 17. Airside economizer sizes and dimensions (in.)
Size A B C D E
F (1) F (2) G (1) G (2)
SXWF 20 44 74
22-3/8 81-3/4 8-3/4 66-3/4 49-3/4 23-1/4 20-1/2
SXRF 25 44 74
22-3/8 81-3/4 8-3/4 68-5/8 49-3/4 28-1/8 20-1/2
SXWF 22 44 74
22-3/8 81-3/4 8-3/4 68-5/8 49-3/4 28-1/8 20-1/2
SXRF 29 44 74
22-3/8 81-3/4 8-3/4 74-1/4 62-3/4 23-1/4 20-1/2
SXWF 32 44 74
22-3/8 81-3/4 8-3/4 74-1/4 62-3/4 23-1/4 20-1/2
SXRF 30-35 44 74
22-3/8 81-3/4 8-3/4 73-1/2 62-3/4
33
20-1/2
SXWF 35-38 44 74
22-3/8 81-3/4 8-3/4 73-1/2 62-3/4
33
20-1/2
SXWF 42
57-3/8 86-1/2 13-1/4 104-3/8 8-7/8 83-5/8 63-1/2
33 26
SXRF 40
57-3/8 86-1/2 13-1/4 104-3/8 8-7/8 94-1/8 63-1/2 28-1/8
26
SXWF 46
57-3/8 86-1/2 13-1/4 104-3/8 8-7/8 94-1/8 63-1/2 28-1/8
26
SXRF 50
57-3/8 86-1/2 13-1/4 104-3/8 8-7/8 96-5/8 63-1/2
52
37-1/2
SXRF 60
57-3/8 86-1/2 13-1/4 104-3/8 8-7/8 96-5/8 63-1/2
52
37-1/2
SXRF 52-58
57-3/8 86-1/2 13-1/4 104-3/8 8-7/8 96-5/8 63-1/2
52
37-1/2
SXWF 65-80
57-3/8 86-1/2 13-1/4 104-3/8 8-7/8 96-5/8 63-1/2
52
37-1/2
Size
H (1) H (2)
J K L M
Weight
SXWF 20
9-3/4 11-1/8 20-1/2 22-1/4
16
49-3/4
430
SXRF 25
7-1/4 11-1/8 20-1/2 22-1/4
16
49-3/4
500
SXWF 22
7-1/4 11-1/8 20-1/2 22-1/4
16
49-3/4
500
SXRF 29
9-3/4 11-1/8 20-1/2 22-1/4 9-1/2 62-3/4
500
SXWF 32
9-3/4 11-1/8 20-1/2 22-1/4 9-1/2 62-3/4
500
SXRF 30-35
4-7/8 11-1/8 20-1/2 22-1/4 9-1/2 62-3/4
500
SXWF 35-38
4-7/8 11-1/8 20-1/2 22-1/4 9-1/2 62-3/4
500
DDiimmeennssiioonnaall DDaattaa
