Trane IntelliPak SXHL Series User Manual

RT-SVX36G-EN 131
Unit Start Up
Table 46. Return fan performance—40, 50, 55 tons AC; 48, 59 tons EC (27”)
CFM Negative Static Pressure
Std. 0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00
Air RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
7500 709 0.82 766 1.16 815 1.50 861 1.85 906 2.22 949 2.60 991 2.99 1033 3.39
8000 748 0.95 803 1.31 851 1.67 895 2.04 938 2.43 979 2.82 1018 3.22 1058 3.64
8500 788 1.09 840 1.47 887 1.86 930 2.24 971 2.64 1010 3.05 1049 3.48 1087 3.92
9000 827 1.24 878 1.64 924 2.05 965 2.46 1005 2.88 1043 3.31 1080 3.75 1115 4.19
9500 867 1.41 916 1.83 961 2.27 1001 2.70 1040 3.14 1076 3.58 1112 4.03 1146 4.50
10000 908 1.60 955 2.04 999 2.50 1038 2.95 1075 3.41 1111 3.88 1145 4.34 1179 4.83
10500 948 1.81 994 2.27 1036 2.75 1075 3.23 1111 3.70 1145 4.18 1179 4.68 1212 5.18
11000 989 2.04 1033 2.51 1074 3.01 1112 3.51 1147 4.01 1181 4.51 1213 5.02 1245 5.53
11500 1030 2.28 1072 2.78 1112 3.29 1149 3.82 1184 4.33 1216 4.86 1248 5.38 1279 5.92
12000 1071 2.55 1112 3.06 1151 3.59 1187 4.14 1221 4.69 1253 5.24 1284 5.78 1314 6.33
12500 1112 2.83 1152 3.37 1189 3.92 1225 4.48 1258 5.06 1290 5.62 1320 6.19 1349 6.76
13000 1153 3.14 1192 3.70 1228 4.27 1263 4.86 1296 5.45 1327 6.04 1356 6.63 1385 7.23
13500 1194 3.47 1232 4.05 1267 4.63 1301 5.24 1333 5.85 1364 6.47 1393 7.08 1421 7.70
14000 1236 3.83 1272 4.42 1307 5.03 1340 5.66 1371 6.29 1401 6.94 1430 7.57 1457 8.20
14500 1277 4.21 1313 4.82 1346 5.45 1379 6.10 1410 6.75 1439 7.42 1467 8.08 1494 8.73
15000 1319 4.62 1353 5.25 1386 5.90 1417 6.55 1448 7.23 1477 7.92 1504 8.61 1531 9.29
15500 1361 5.05 1394 5.71 1426 6.37 1457 7.05 1486 7.74 1514 8.44 1542 9.16 1569 9.87
16000 1402 5.51 1435 6.18 1466 6.87 1496 7.57 1525 8.28 1553 9.01 1580 9.74 1606 10.47
16500 1444 6.00 1476 6.69 1506 7.40 1535 8.12 1564 8.85 1591 9.58 1617 10.34 1643 11.10
17000 1486 6.52 1517 7.23 1547 7.96 1575 8.70 1603 9.44 1629 10.20 1655 10.97 1681 11.75
17500 1528 7.07 1558 7.80 1587 8.55 1615 9.30 1642 10.07 1668 10.85 1694 11.64 1718 12.43
18000 1570 7.65 1599 8.40 1627 9.17 1655 9.94 1681 10.73 1707 11.53 1732 12.33 1757 13.15
18500 1612 8.26 1640 9.03 1668 9.81 1695 10.62 1721 11.43 1746 12.23 1771 13.07 1794 13.89
19000 1654 8.91 1682 9.70 1709 10.50 1735 11.31 1760 12.14 1785 12.97 1809 13.82 1833 14.67
19500 1696 9.59 1723 10.40 1749 11.22 1775 12.06 1800 12.90 1825 13.76 1848 14.62
1872 15.50
20000 1738 10.30 1765 11.13 1790 11.97 1816 12.83 1840 13.69 1864 14.56
1888 15.46 1910 16.34
20500 1780 11.05 1806 11.90 1831 12.76 1856 13.63 1880 14.52
1903 15.41 1926 16.31 1949 17.22
21000 1822 11.84 1848 12.71 1872 13.59 1897 14.48
1920 15.39 1943 16.29 1966 17.23 1988 18.14
21500 1864 12.66 1889 13.55 1914 14.45
1937 15.36 1960 16.29 1983 17.22 2005 18.16 2027 19.11
22000 1899 13.05 1926 14.11
1952 15.16 1977 16.20 2001 17.23 2024 18.24 2047 19.27 2069 20.28
22500 1941 13.91
1967 14.98 1992 16.05 2017 17.12 2041 18.19 2064 19.23 2086 20.27 2108 21.31
Notes:
1. Max fan RPM 1981 For 27" Class II Fan
2. Max Motor Available 15 HP For 27" Fan Size
3. Max motors Available are as follows: 40T: 10 HP & 50/55T: 15 HP
4. Max CFM is as follows: 40T: 18000, 50/55T: 22500)
5. Min CFM is as follows: 40T: 7500 & 50/55T: 9000
6. Return fan belt drive RPM selections will be available to cover 700-1900 RPM range +/- 50 RPM
7. Performance data includes cabinet and rain hood effect. Damper pressure drop will have to be added to the return duct static per Table 40, p. 126

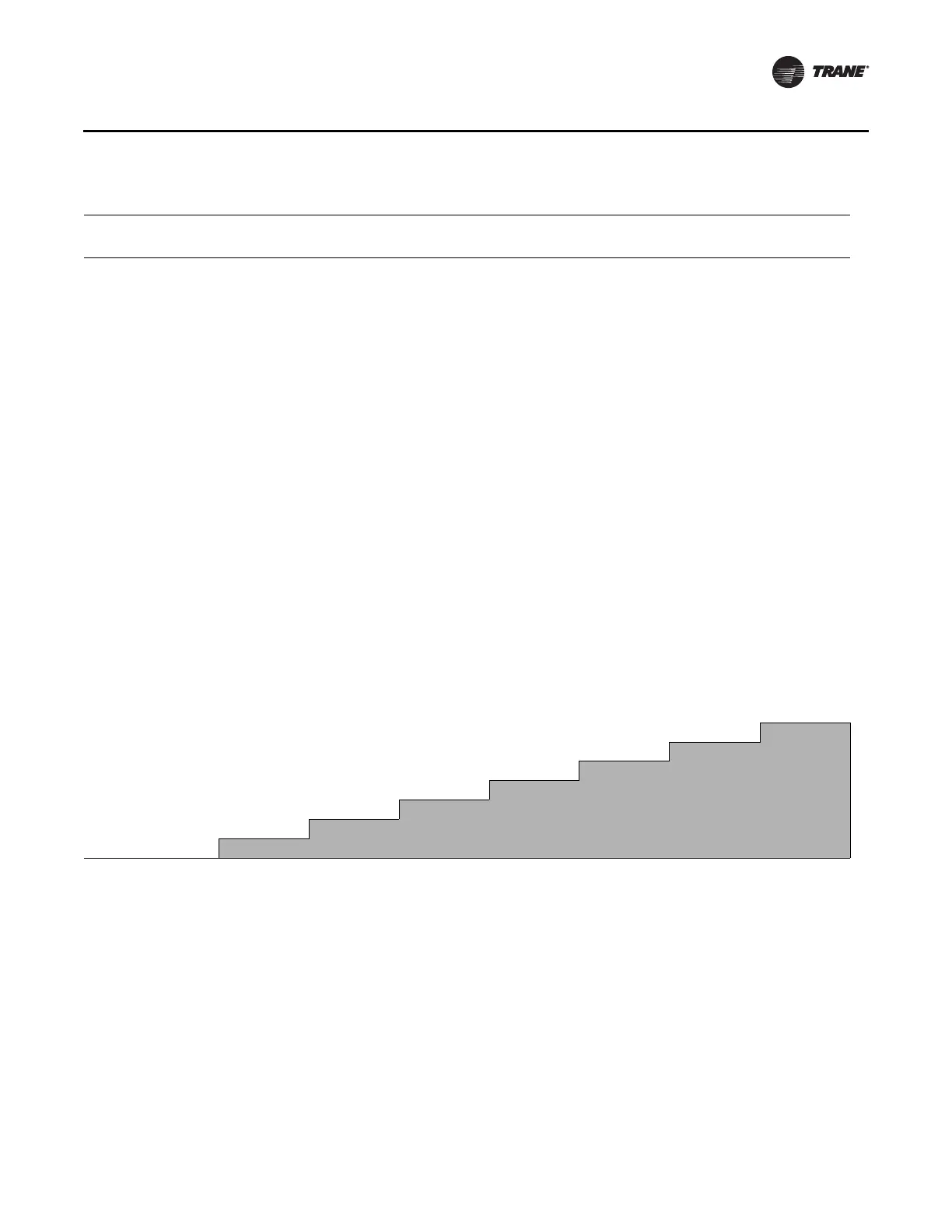

8. Shaded area indicates nonstandard BHP or RPM selections. Contact a local Trane representative for more information.
