LPC-SVX01C-EN 5

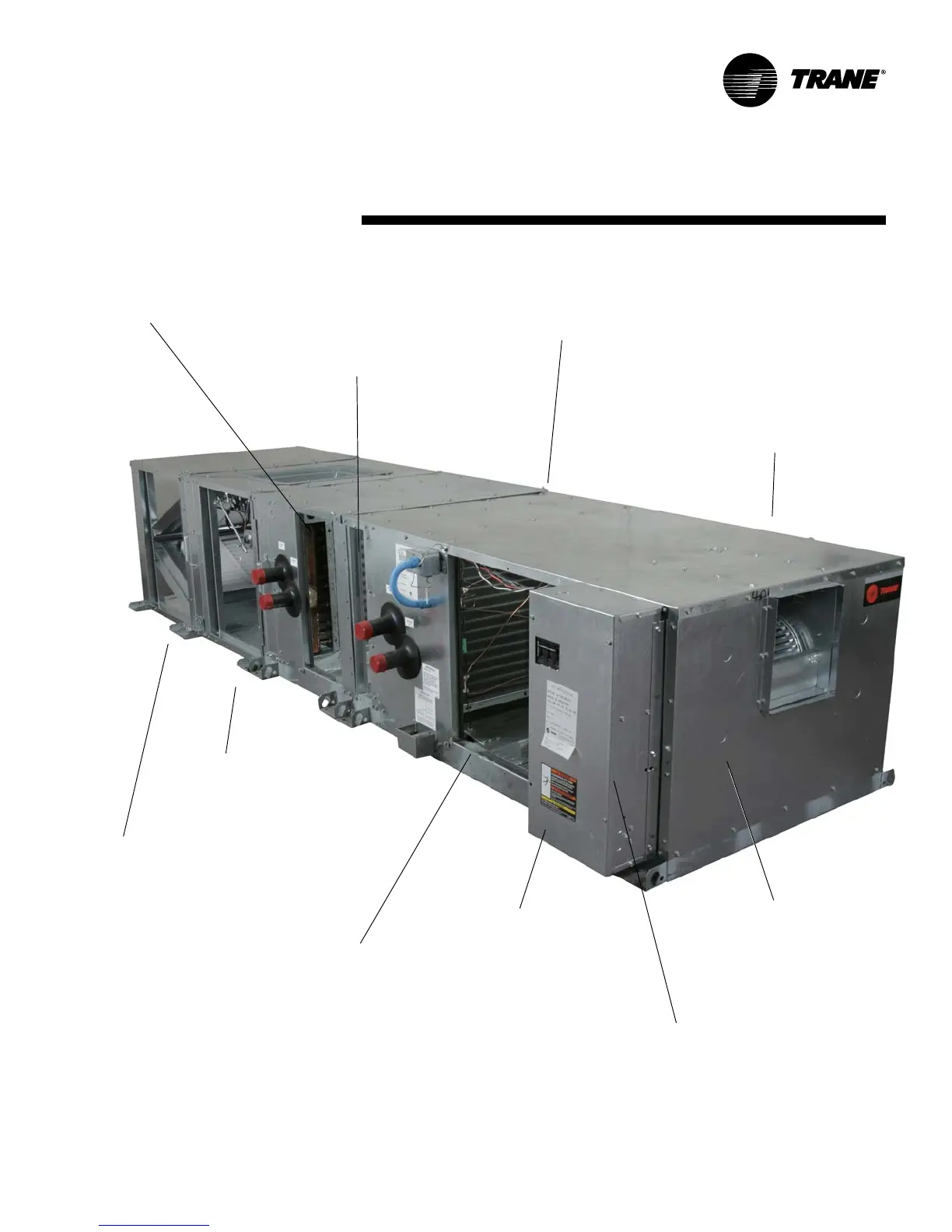

Figure I-GI-1. Packaged Climate Changer air handler unit components. Horizontal unit is shown.
Installation
general
information
Galvanized steel cabinet
• matt-faced insulation
• foil face insulation optional
• double wall insulation optional
• 2-inch flat filter option on main
section
Internal filter frame
accommodates
two-inch filters
Sizes: 03, 06, 09, 10, 12, 14, 17, 21, 25
or 30 square feet
• 1,500 to 15,000 cfm (708 to 4956 l/s)
• UL/CUL listing
• ARI 410 and 430 listed
• Meets ARI 260 acoustic ratings
Up to 8 rows of coil
• 4 or 6 row DX coil with 9,
12, or 14 fpi
• 4, 6, or 8-row chilled water
with 9, 12, or 14 fpi
• 1 or 2-row hot water coil,
reheat or preheat with 9,
12, or 14 fpi
• 1-row steam coil, 6 fpi,
reheat or preheat
Forward-curved fan
• fixed pitch or variable
pitch sheaves
• constant volume or
variable air volume
Control options
• control interface
• Tracer AH540
DDC controller
Belt-driven motor
• Internal spring isolation
optional
•
1
/
2
to 20 hp
• 650 to 1900 rpm
Access section option
• with or without preheat coil
• one or two-row hot water
(9, 12, or 14 fpi) or
• one-row steam distributing
coil (6 fpi)
Filter section option
• 2-inch, MERV 7, angle filters
• 4-inch, MERV 7, flat filters
• 4-inch, MERV 12, flat filters
Other options include:
• electric heat with single-point
power connections, reheat
position
• factory mounted and wired
disconnect with motor
overloads
• variable frequency drive factory
mounted and wired
Face & bypass option
helps control preheat
