52 LPC-SVX01C-EN
Operation
general
information
To install the stand-alone operator
display:
1. Unsnap the gray plastic backing from
the operator display.
2. Carefully disconnect the operator-
display cable from the connector
inside the operator display.
3. Use the plastic backing as a template
to mark the position of the four
mounting holes on the mounting
surface. See Figure O-GI-12.
4. Set the plastic backing aside and drill
holes for #8 (4 mm) screws or #8 wall
anchors.
5. Secure the plastic backing to the wall
with #8 (4 mm) mounting screws
(not supplied).
6. Connect the operator-display cable to
the operator display, then snap the
operator display to the plastic
backing. The operator-display cable is
keyed to the connector. If you have
difficulty connecting it, make sure the
key is lined up with the slot.
7. Run the operator-display cable to the
Tracer AH540/541, affixing it to the
wall with wiring staples or wire mold.
Do not run operator-display cable in
the same wire bundle with high-
voltage power wires. Running input/
output wires with 24 Vac power wires
is acceptable.
8. Feed the cable into the Tracer AH540/
541 enclosure.
9. Attach the operator-display cable to
the operator-display connector on the
circuit board (see Figure O-GI-13). The
operator display receives power
from the Tracer AH540/541 and turns
on automatically when it is connected
to the controller.

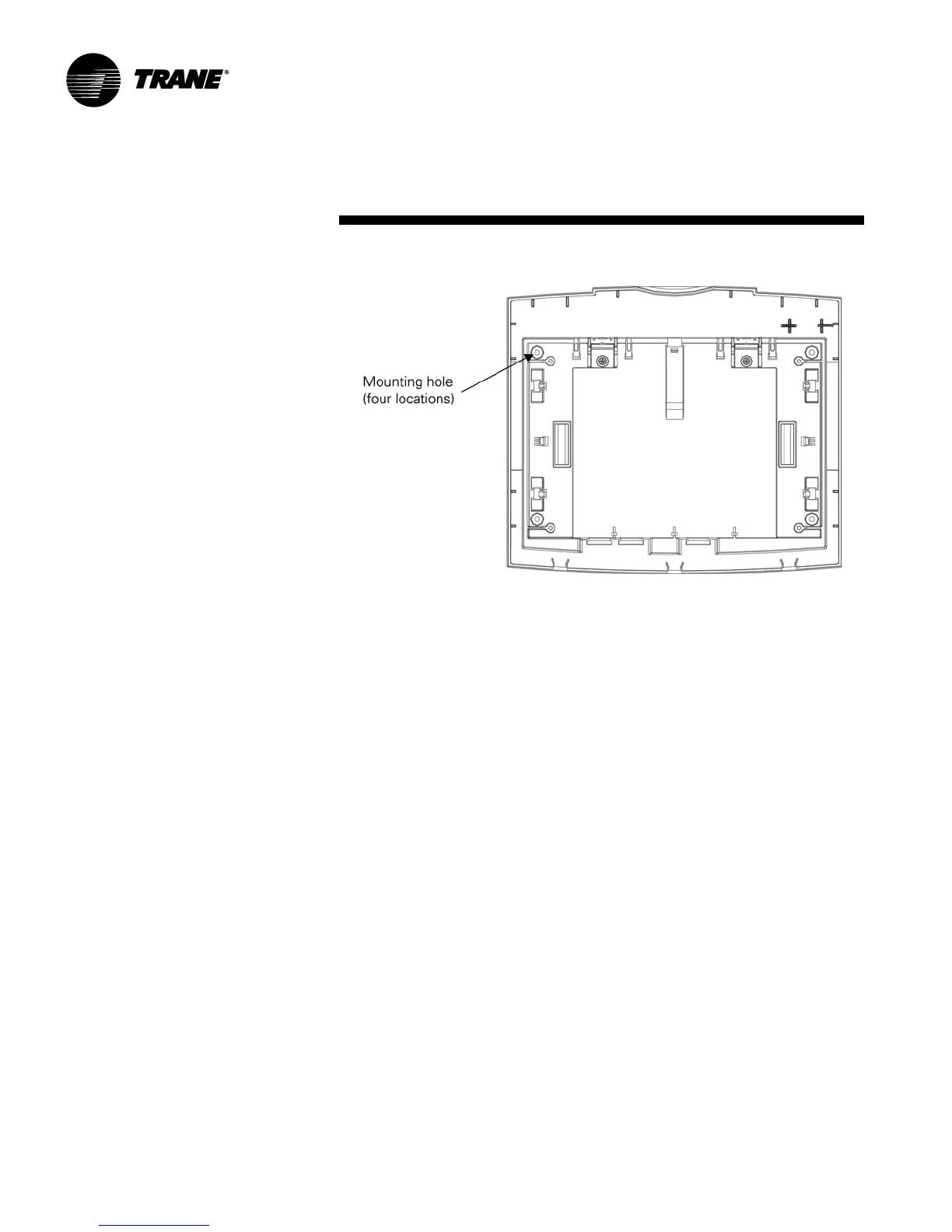

Figure O-GI-12. Stand-alone operator-display mounting holes
