Drainage pipe installation
The drainage pipe should be inclined downward for water fl ow smoothly. Wrap the indoor •
drainage pipe with thermal insulation material.

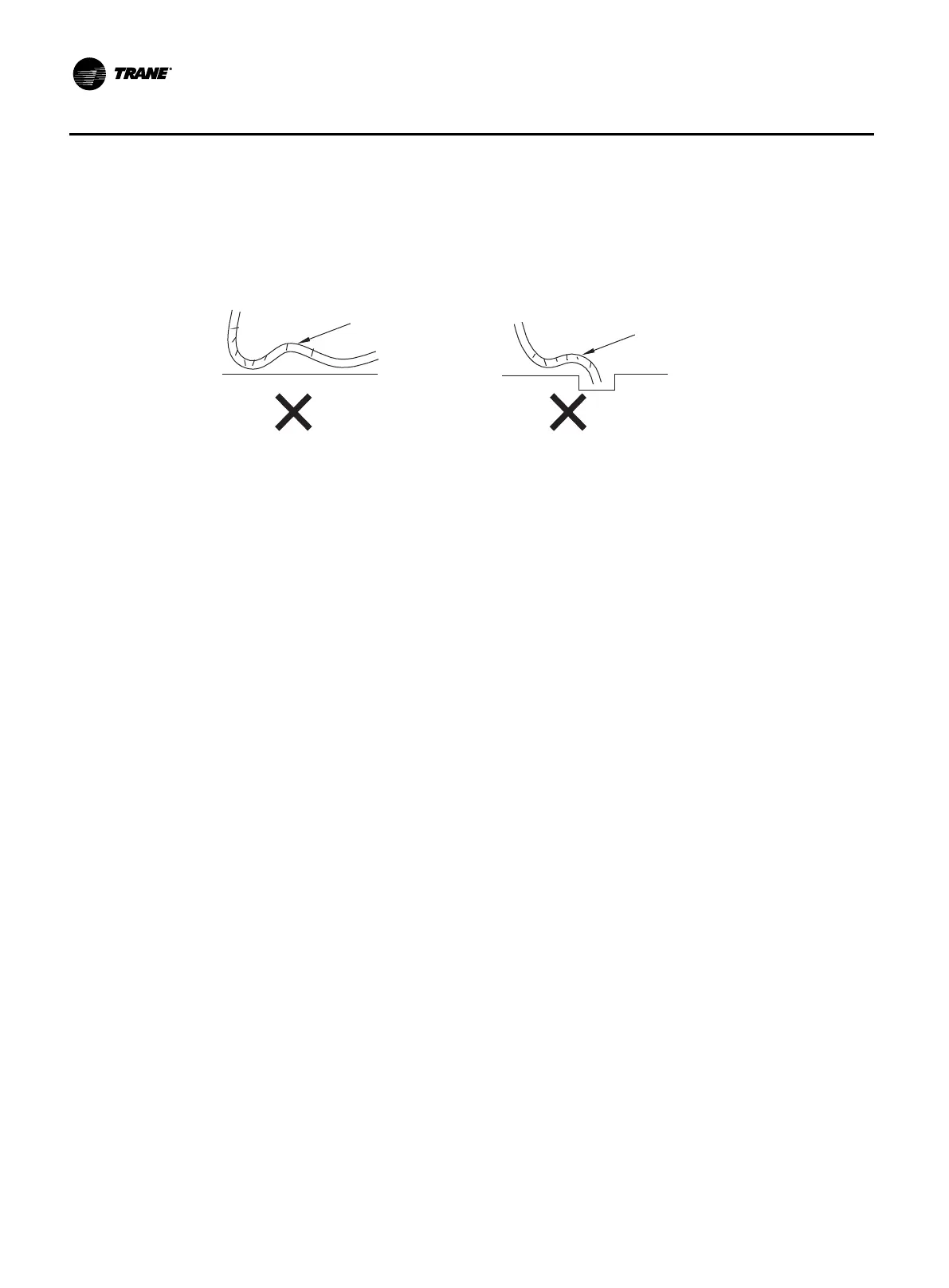

The drainage pipe can not be twisted, bulged or waved etc. Do not insert the outlet port •
into water.
Bulged
DO not insert it into water.
Twisted
Connecting pipe installation
Connect the connecting pipe and two indoor unit extraction pipes correspondingly and •
fasten the connecting pipe joint nut.
Arrange and bend the piping carefully. Do not damage the connecting pipe.•
Do not overtighten the joint nut, otherwise it may cause leakage.•
