Trane MW(C)W509 User Manual

AMS-SVX03A-EN 9
Installation

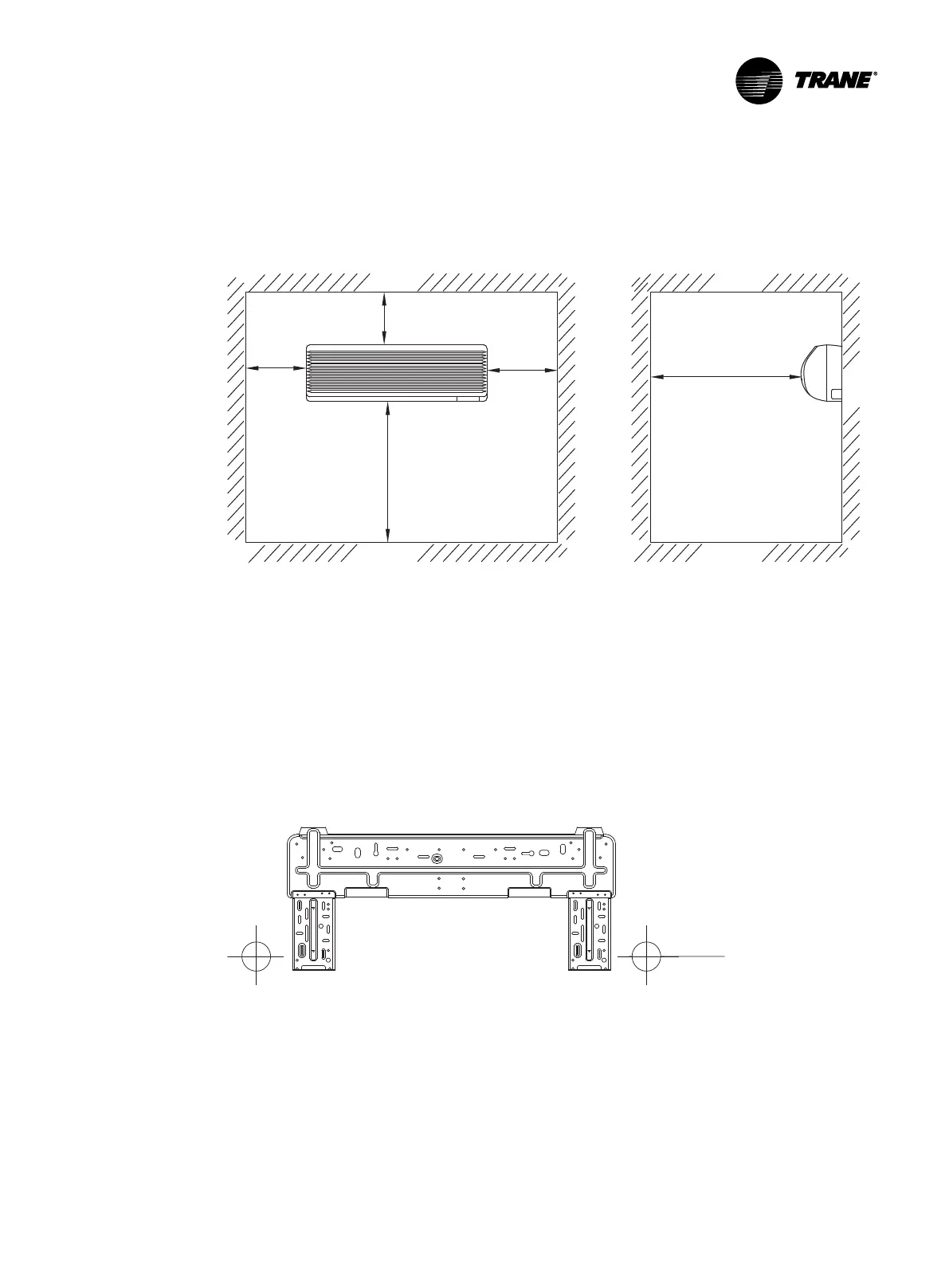

Installation diagram
Unit: ǖmm
Ground
Ceiling
Ground
Ceiling
Wall
>150
>150
>150
>2000
>3000
Only air conditioning unit installed by professionals in accordance with this manual can •
ensure good status.
Hanging plate installation
Find the level position with hanging line. When adjust the board, the left side should be •
lower since the drainage pipe is at the same side.
Fix the hanging plate on the wall with screws.•
Pull the hanging plate to make sure it is fi xed after installation completed. Properly installed •
hanging plate can withstand 60kg and all fi xed screws are stressed uniformly.
Outlet pipe wall hole diameter: 50mm for MW(C)W509/512, and 65mm. for MW(C)W518.•
Outlet pipe wall hole Ø
Drill piping hole
Drill a outward-dipping hole (˫50 or ˫65) after determining the piping hole position.•
Install wall pipe to prevent piping and cable through the wall from damaging.•
