Trane NTXAMT A Series - Page 34

34

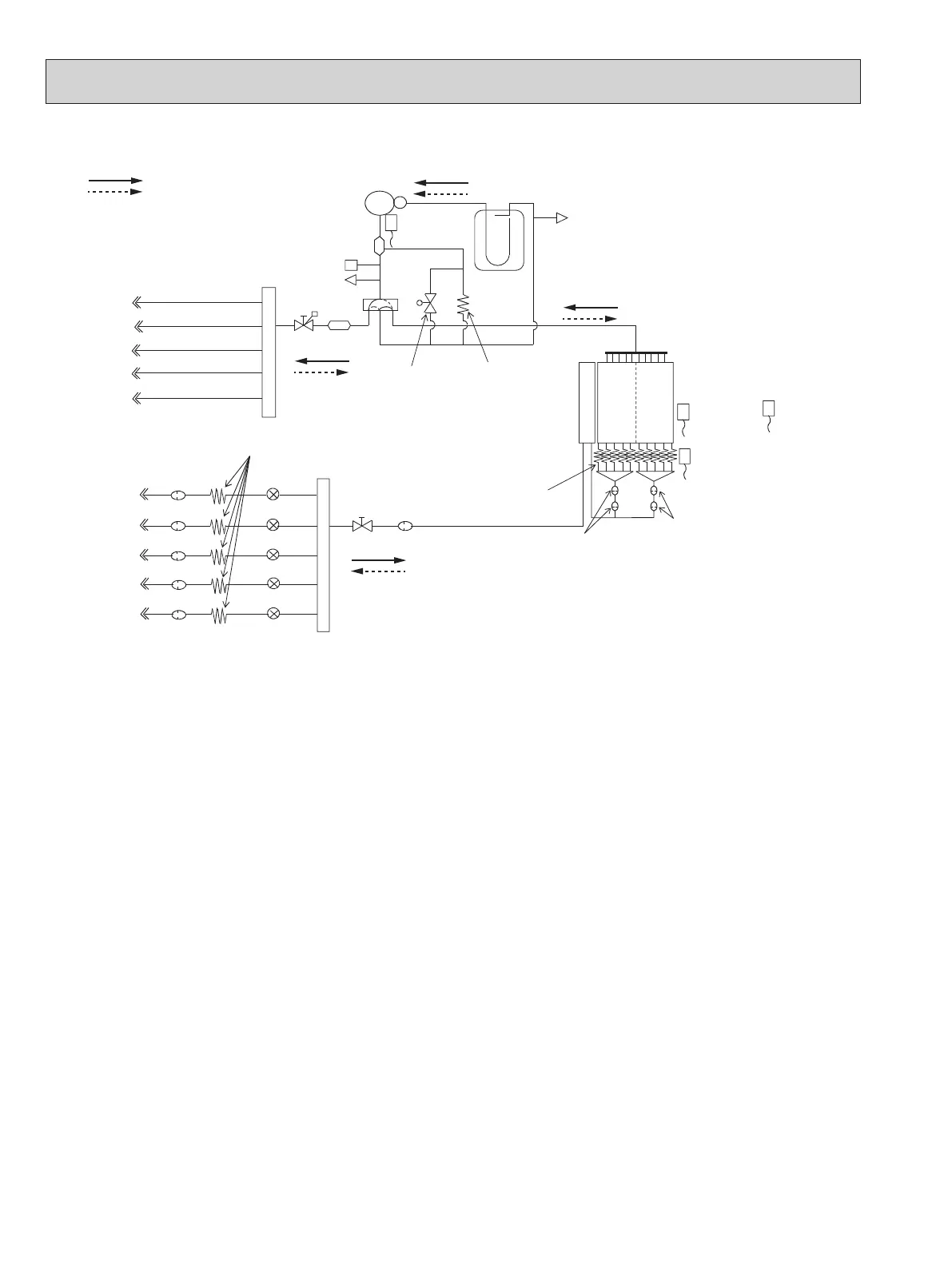

NTXMMX42A152AA
R.V.coil
OFF Refrigerant flow in heating
ON Refrigerant flow in cooling
Compressor
Oil separator
High pressure switch
ø1/4 (ø6.35)
ø1/4 (ø6.35)
ø3/8 (ø9.52)
ø1/2 (ø12.7)
Indoor unit A
Accumulator
ø1/4 (ø6.35)
LEV A
ø3/8 (ø9.52)
2-way
solenoid valve
Sub
muffler
Distributor
Strainer #100
Union
Union
Header(Gas)
Stop valve
Strainer
Strainer
#50
Strainer
#50
#100
Header(Evaporator)
Capillary tube
Capillary tube
O.D.0.10 x I.D.0.02 x 39.37
(ø2.5 x ø0.6 x 1000)
ø1/4 (ø6.35)
ø1/4 (ø6.35)
ø3/8 (ø9.52)
ø3/8 (ø9.52)
Compressor shell
temperature
thermistor RT62
Outdoor
heat exchanger
temperature
thermistor
RT68
Ambient
temperature
thermistor
RT65
Defrost
temperature
thermistor
RT61
Capillary tube
O.D.0.16 x I.D.0.11 x 3.94
(ø4.0 x ø2.8 x 100)
Outdoor
heat exchanger
4-way
valve
Stop valve
(with service port)
Service port
Service port
In
door unit B
Indoor unit C
Indoor unit D
Indoor unit E
Indoor unit A
Indoor unit B
Indoor unit C
Indoor unit D
Indoor unit E
Strainer #100
Strainer #100
Strainer #100
Strainer #100 LEV B
LEV E
LEV D
LEV C
Unit: inch (mm)
OBHT702
