Trane Oxbox J4AH4P24B1A00AA - Page 7

5
18
41-3/8"[1050] 18-1/8"[460] 20-1/2"[520] 16"[406] 104/117 [47]/[53]
24
30
36
42
48 54-1/2"[1385] 22"[560] 24"[610] 19-1/2"[496]
54-1/2"[1385] 22"[560] 24"[610] 19-1/2"[496] 159/177 [72]/[80]
159/177 [72]/[80]
159/177 [72]/[80]
60 54-1/2"[1385] 22"[560] 24"[610] 19-1/2"[496]
MODEL SIZE
Dimensions inch [mm]
SUPPLY
DUCT "A"
UNIT HEIGHT
"H" IN. [mm]
UNIT WIDTH
"W" IN.[mm]
UNIT LENGHT
"D" IN.[mm]
UNIT WEIGHT
/SHIPPING WEIGHT
(LBS.[kg])
46-1/2"[1180] 19-5/8"[500] 21-5/8"[550] 18"[456]
128/143 [58]/[65]
128/143 [58]/[65]
DIMENSIONAL DATA
46-1/2"[1180] 19-5/8"[500] 21-5/8"[550] 18"[456]

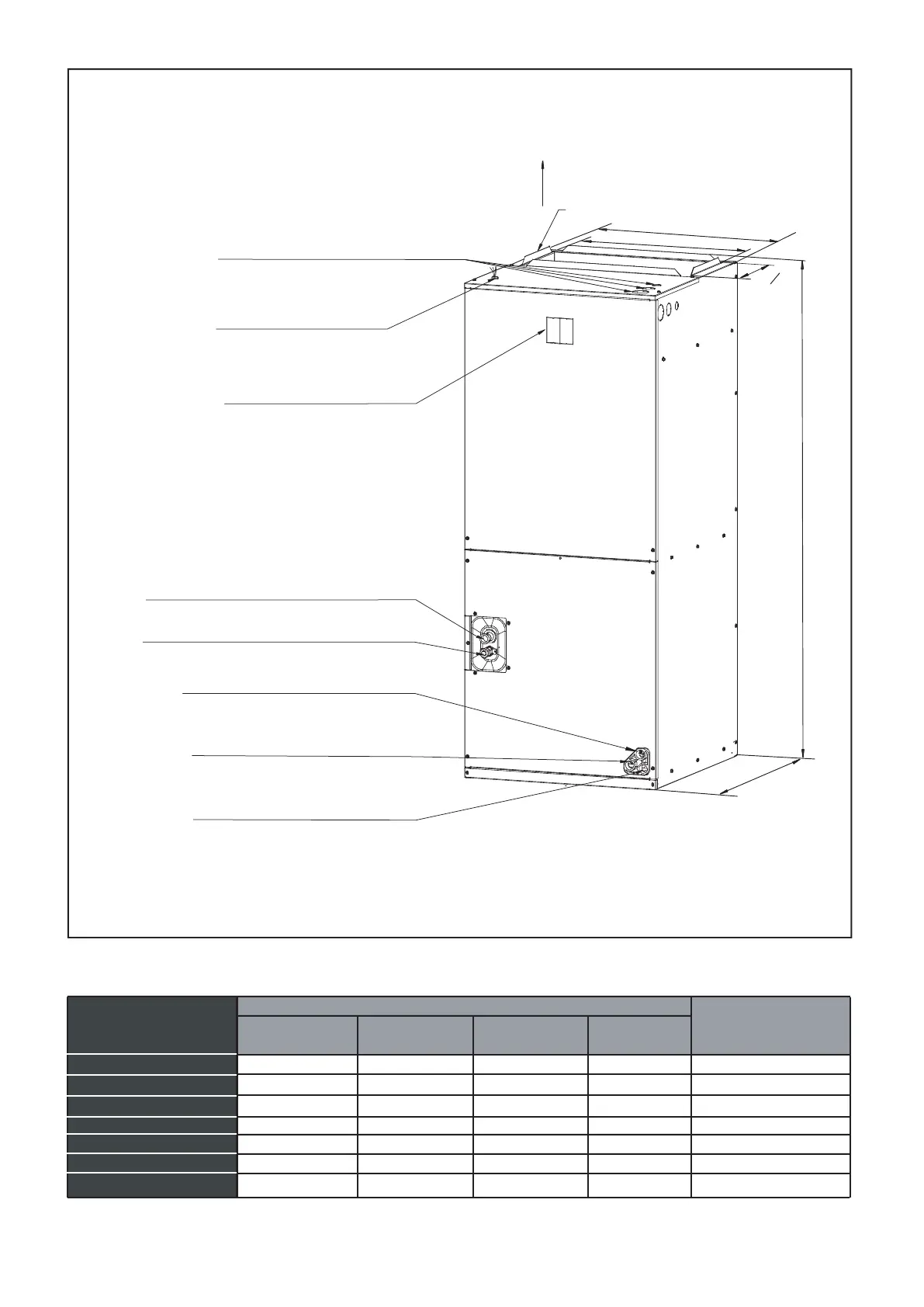

2.1 UNIT DIMENSIONS
UPFLOW UNIT SHOWN;
UNIT MAY BE INSTALLED UPFLOW, DOWNFLOW,
HORIZONTAL RIGHT OR LEFT AIR SUPPLY.
Fig.6 DIMENSIONS
NOTE: 25” CLEARANCE IS REQUIRED IN THE FRONT
OF THE UNIT FOR FILTER AND COIL MAINTENANCE.
SUPPLY AIR
FLANGES ARE PROVIDED
FOR FIELD INSTALLATION
ELECTRICAL CONNECTIONS
MAY EXIT TOP OR EITHER SIDE
HIGH VOLTAGE CONNECTION 7/8”,
1-3/8”, 1-3/4” DIA KNOCK OUTS
LOW VOLTAGE CONNECTION
BREAKER SWITCH
(FOR ELECTRIC HEATER ONLY)
VAPOR LINE CONNECTION COPPER (SWEAT)
LIQUID LINE CONNECTION COPPER (SWEAT)
AUXILIARY DRAIN CONNECTION 3/4 ＂
FEMALE PIPE THREAD (NPT)
AUXILIARY DRAIN CONNECTION 3/4 ＂
FEMALE PIPE THREAD (NPT)
PRIMARY DRAIN CONNCETION 3/4
＂
FEMALE PIPE THREAD (NPT)
A
W
H
D
10
5
16
41-3/8"[1050] 18-1/8"[460] 20-1/2"[520] 16"[406] 108/121 [49]/[55]
