Unit Dimensions
14 RT-SVX22J-EN

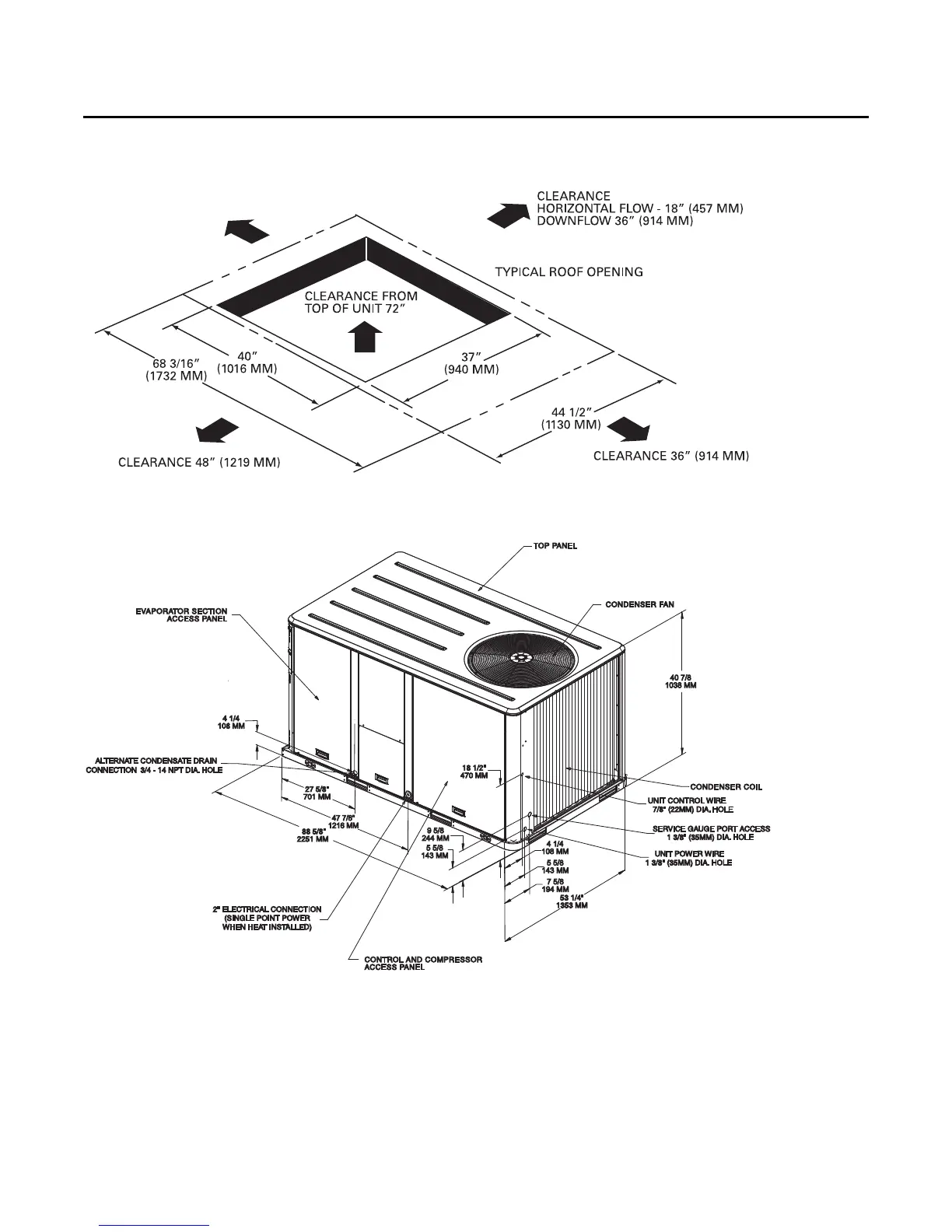

Figure 4. 3-5 ton standard efficiency, 3 ton high efficiency - unit clearance and roof opening
Note: All dimensions are in inches/millimeters.
CLEARANCE 36” (914 MM)
Figure 5. 6, 7½ (single) ton standard efficiency, 4 - 5 ton high efficiency
Note: All dimensions are in inches/millimeters.
