Unit Dimensions
RT-SVX22J-EN 15

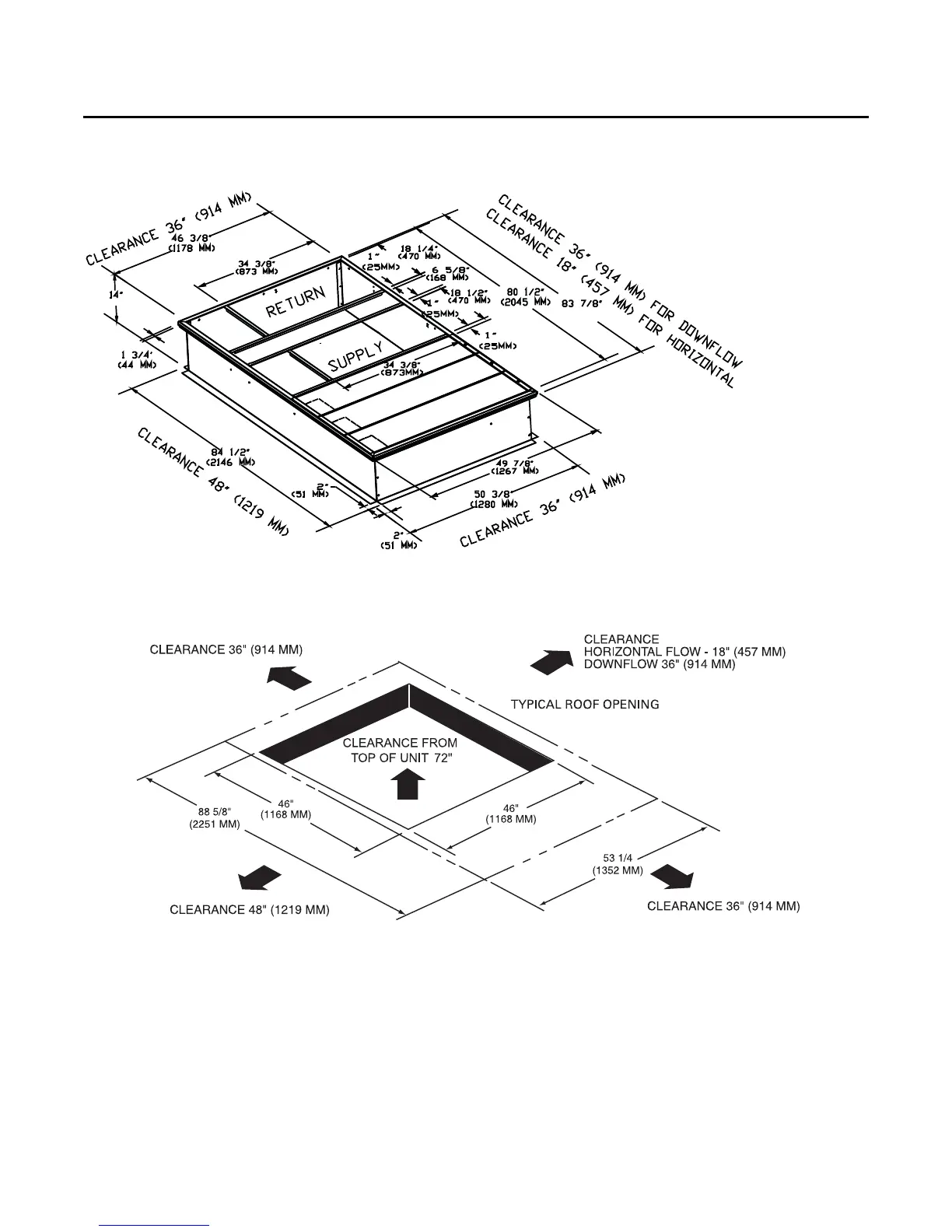

Figure 6. 6, 7½ (single) ton standard efficiency, 4 - 5 ton high efficiency - roof curb
Note: All dimensions are in inches/millimeters.
(2130 MM)
(356 MM)
Figure 7. 6, 7½ (single) ton standard efficiency, 4 - 5 ton high efficiency - unit clearance and roof opening
Note: All dimensions are in inches/millimeters.
