Unit Dimensions
16 RT-SVX22J-EN

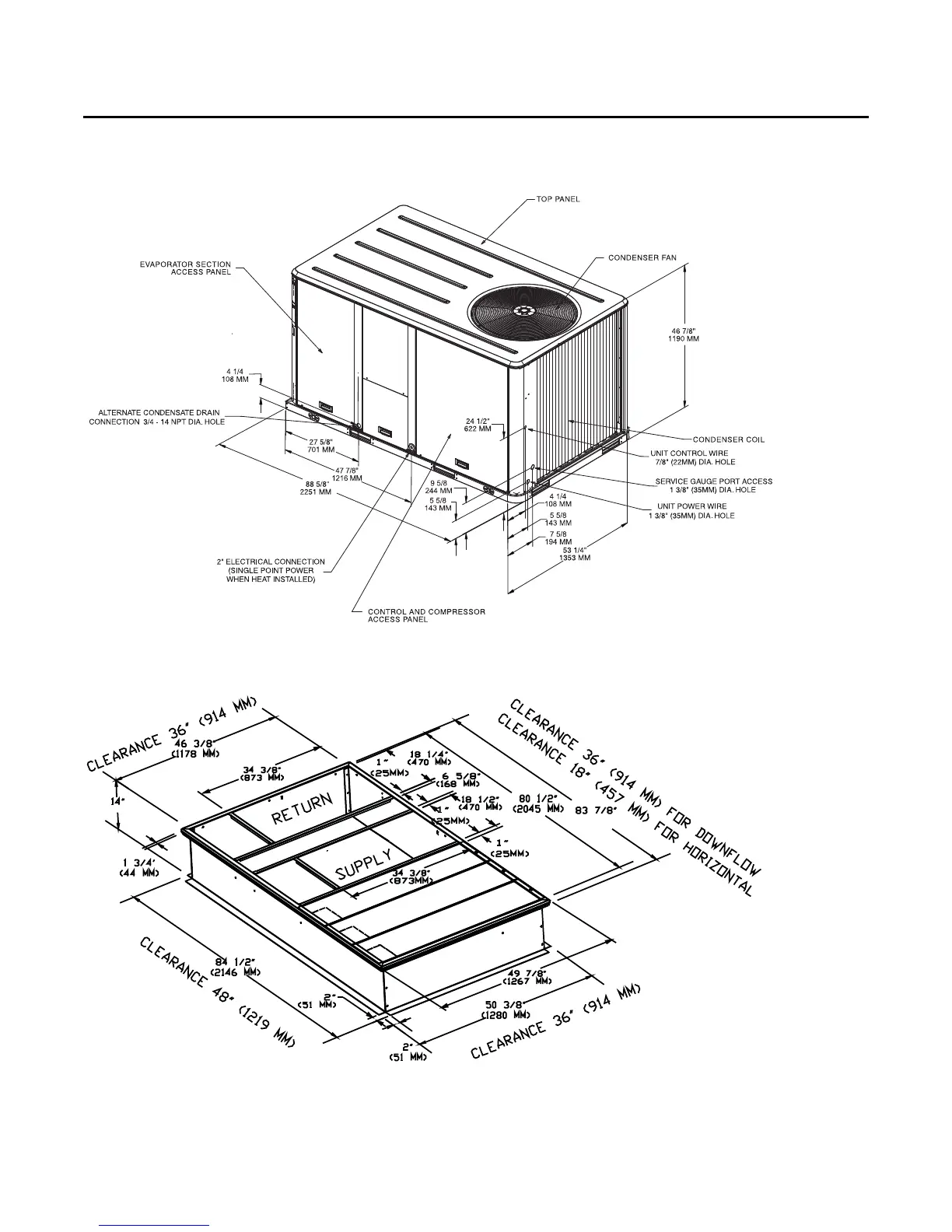

Figure 8. 7½ ton (dual) - 10 ton standard efficiency, 6 & 7½ (microchannel) ton high efficiency
Note: All dimensions are in inches/millimeters.
Figure 9. 7½ ton (dual) - 10 ton standard efficiency, 6 & 7½ (microchannel) ton high efficiency - roof curb
Note: All dimensions are in inches/millimeters.
(2130 MM)
(356 MM)
