Trane Precedent TSCSeries User Manual

Installation
32 RT-SVX22J-EN

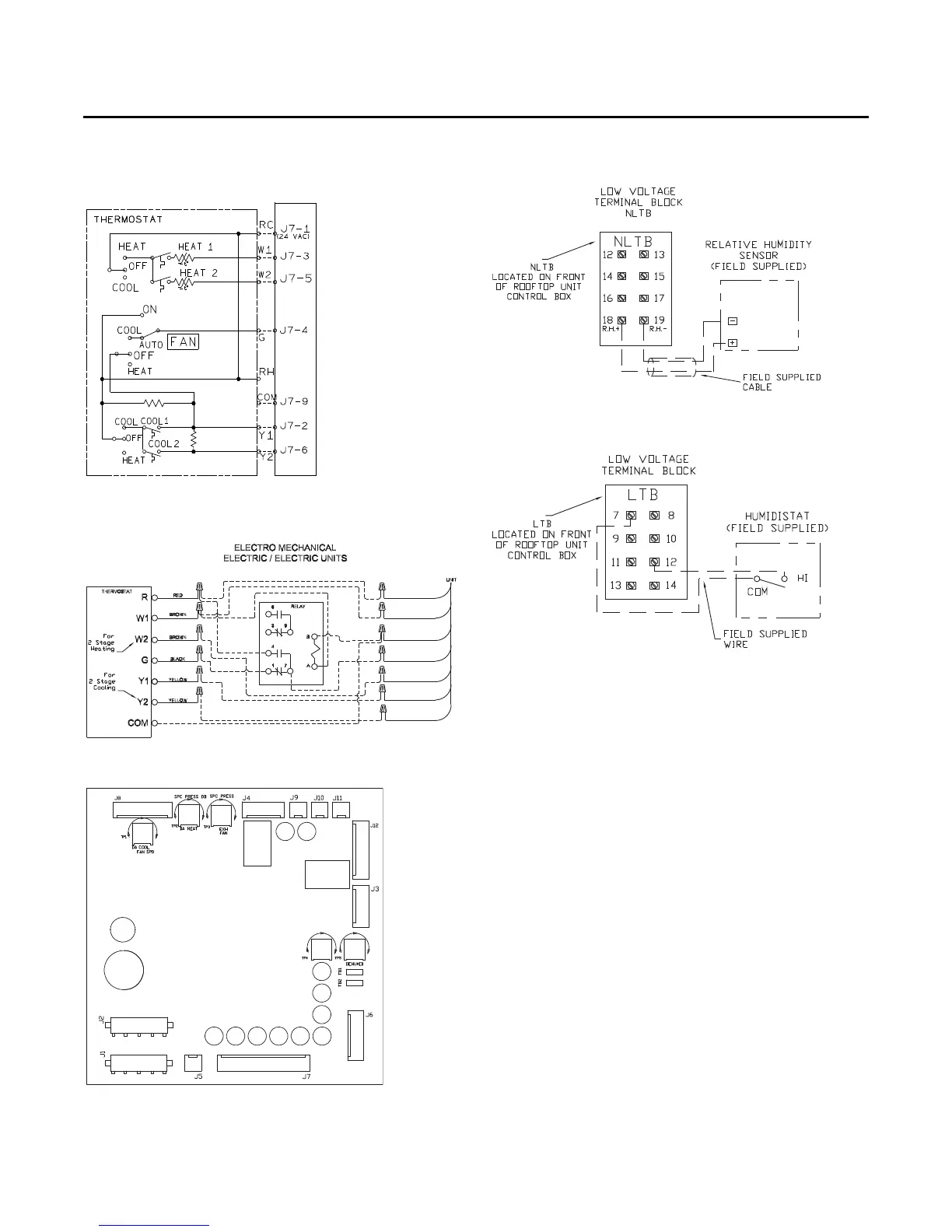

Figure 38. ReliaTel conventional thermostat field wiring
diagrams
Figure 39. Typical field wiring diagrams for Electro
Mechanical Thermostat
Figure 40. ReliaTel options module
RTRM
100 P (Red)
173 C (Brn)
101MM (Blu)
175 D (Blk)
174 B (Brn)
176 D (Yellow)
184 A (Yellow)
Figure 41. ReliaTel relative humidity sensor
(dehumidification option)
Figure 42. ReliaTel humidistat (dehumidification
option)
