Installation
RT-SVX22J-EN 33

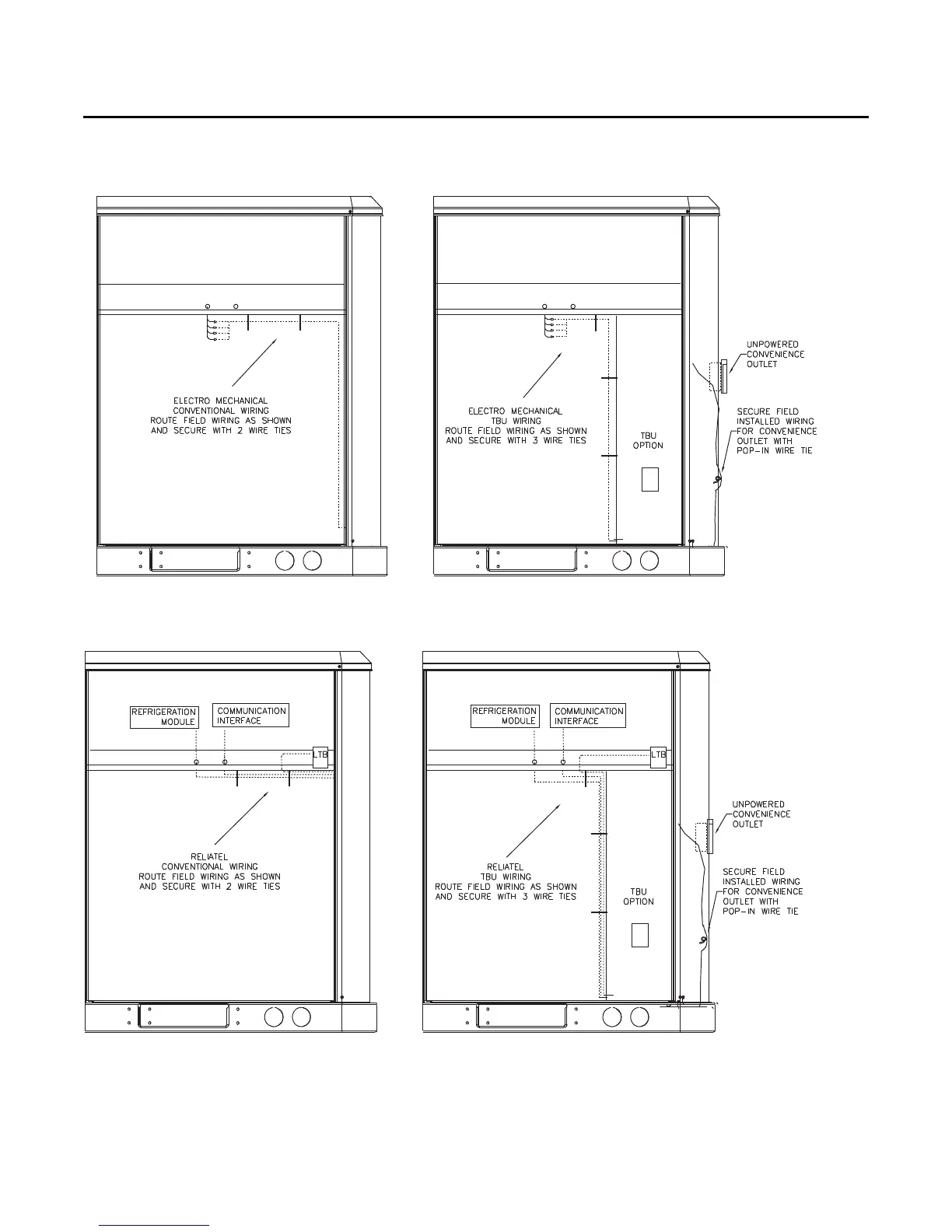

Figure 43. Electro mechanical control customer low voltage routing (all units except 8½ - 10 ton high efficiency, and
7½ ton high efficiency with hot gas reheat dehumidification.)
Figure 44. ReliaTel control customer low voltage routing (all units except 7½ (dehumidification) - 10 ton high
efficiency)
