Installation
34 RT-SVX22J-EN

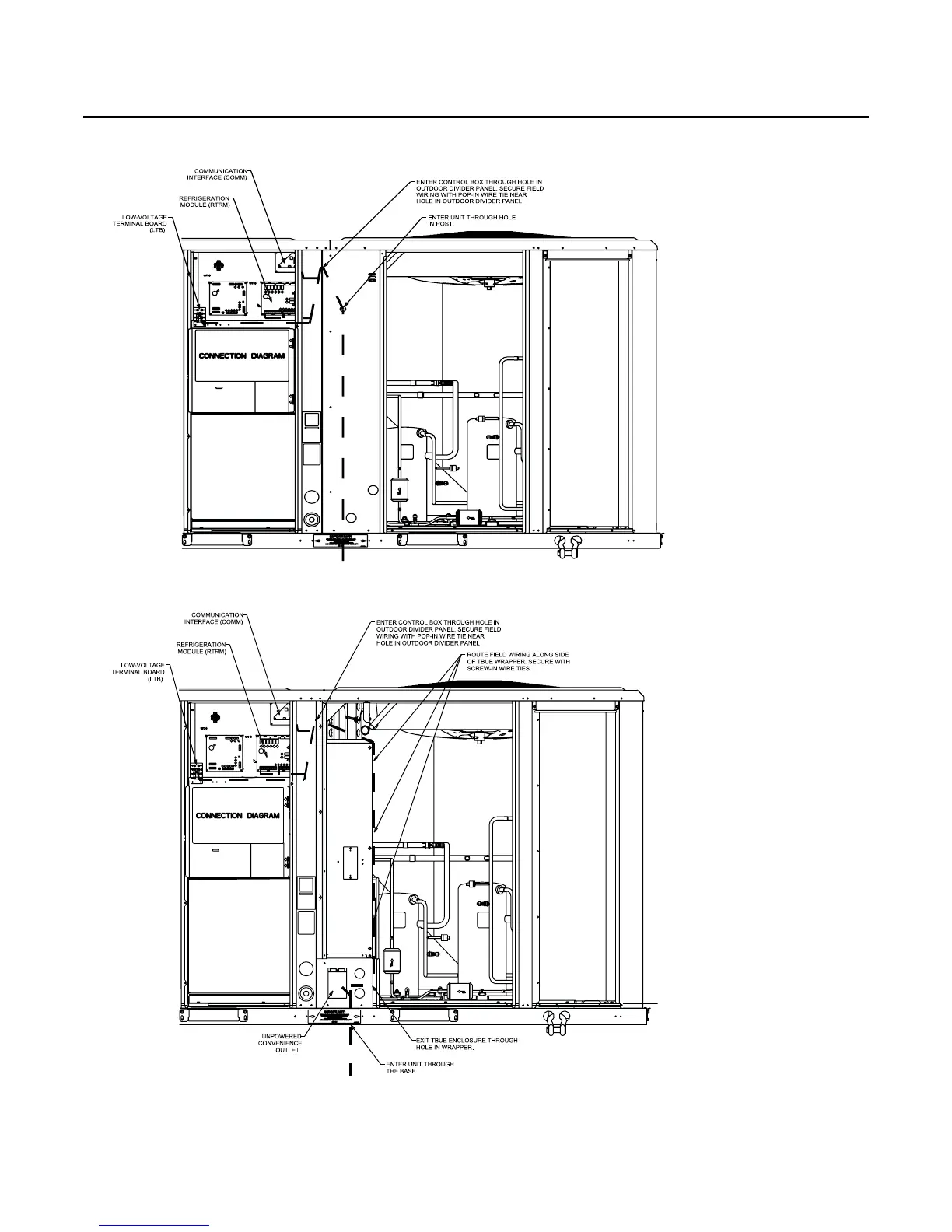

Figure 45. ReliaTel (without TBUE) control customer wire routing (7½ (dehumidification) - 10 ton high efficiency)
Figure 46. ReliaTel (with TBUE) control customer wire routing (7½ (dehumidification) -10 ton high efficiency)
