Installation
RT-SVX22J-EN 35

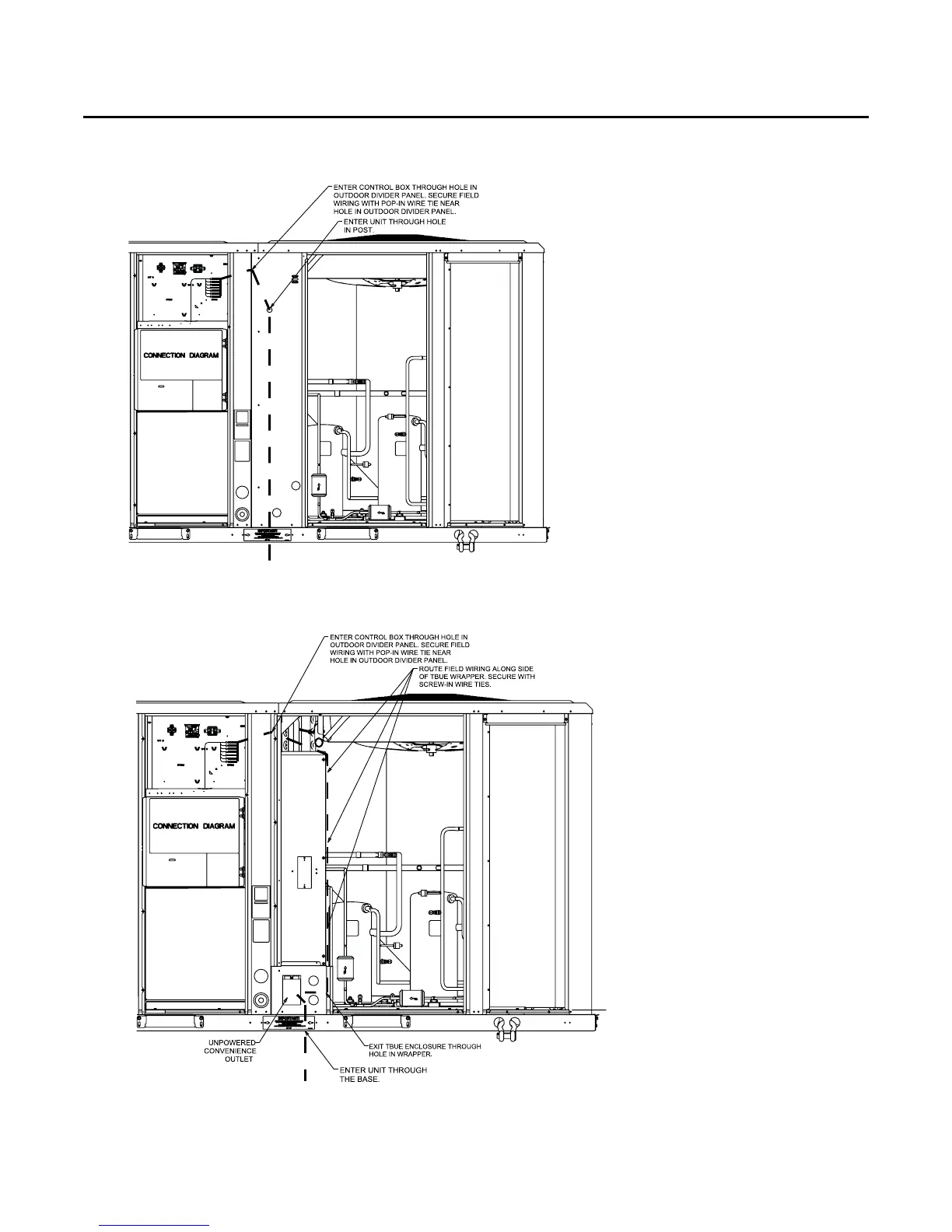

Figure 47. Electromechanical (without TBUE) control customer wire routing (7½ (dehumidification) - 10 ton high
efficiency)
Figure 48. Electromechanical (with TBUE) control customer wire routing (7½ (dehumidification) - 10 ton high
efficiency)
