Trane Precedent WSJ150 User Manual

PKGP-SVX010A-EN
13
Dimensional Data

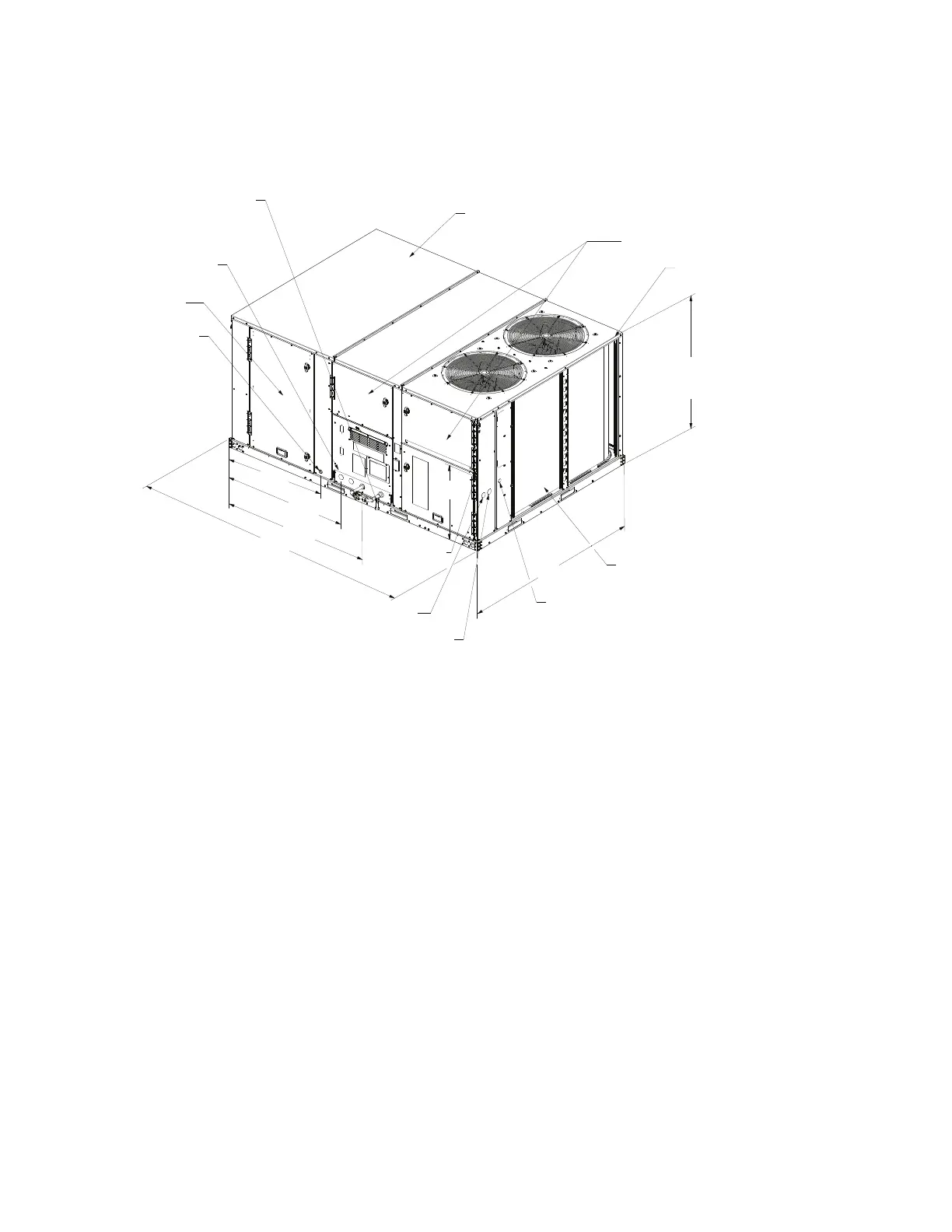

Figure 2. 12.5 to 25 tons standard efficiency
123''
[3124]
87''
[2210]
59'' D.0 CAB OR
[1499]
66'' D.1 CAB
[1676]
65 5/8''
[1668]
55''
[1398]
31 7/8''
[810]
44 3/4''
[1135]
GAS CONNECTION
3/4 NPT (280, 320, 400 MBh)
EVAPORATOR SECTION
ACCESS PANEL
CONDENSATE DRAIN
INDOOR TOP PANEL
CONTROL BOX SECTION
ACCESS PANEL
UNIT CONTROL WIRE
2'' (50 MM) DIA. HOLE
UNIT POWER WIRE
2'' (50 MM) DIA. HOLE
OUTDOOR T
OP PANEL
SERVICE GAUGE PORT ACCESS
1 3/8'' (35 MM) DIA. HOLE
2" ELECTRICAL CONN SINGLE POINT
POWER "W" MODELS ONLY
UNIT CONTROL WIRE
CONDENSER COIL
Note: Cabinet size for 12.5 to 15 ton units: D0. Cabinet size for 20 to 25 ton units: D1.
