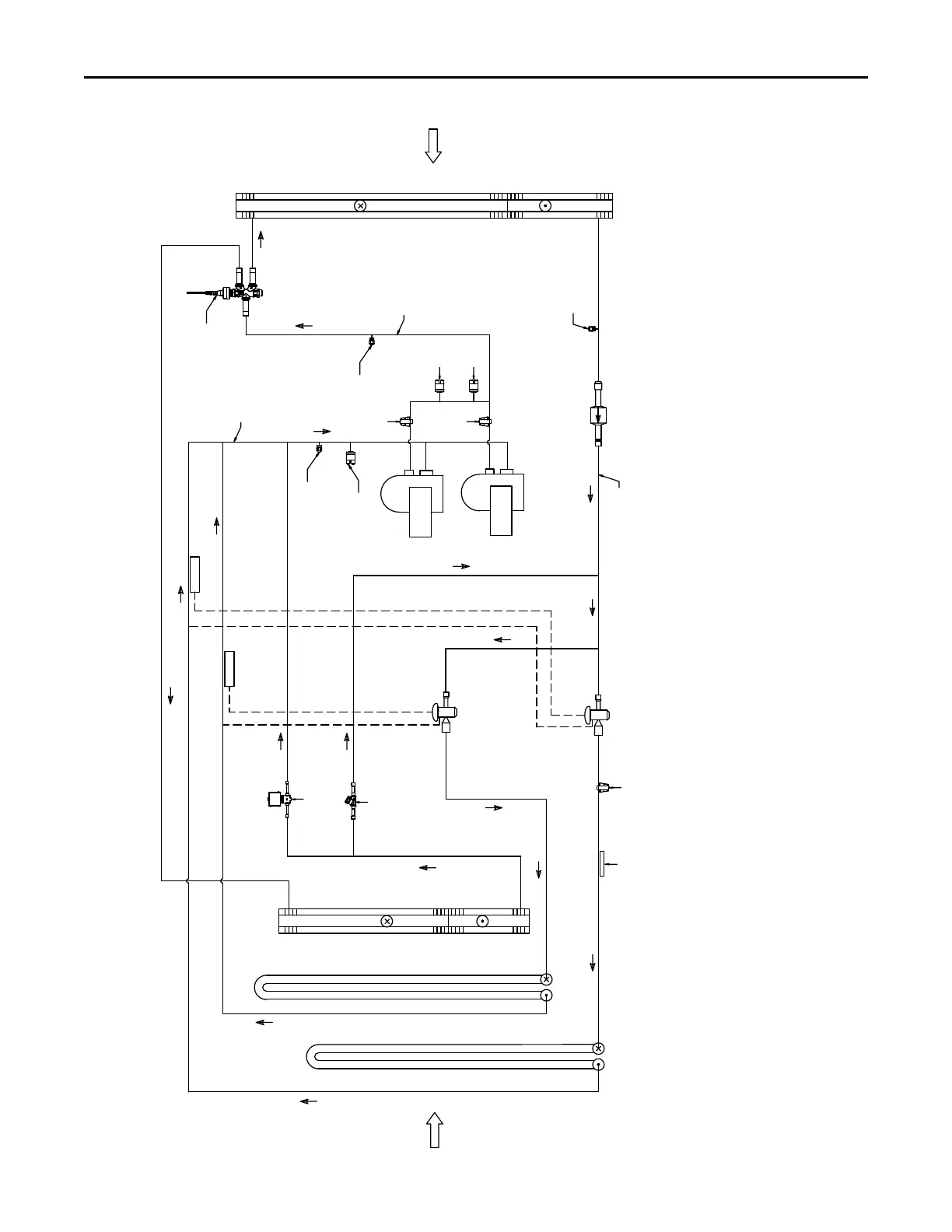

Figure 28. Piping diagram – 15 to 25 tons standard efficiency – hot gas reheat (WSJ180–300)
COMPRESSOR
1A
S D
COMPRESSOR
1B
S
D
SERVICE
VALVE
NO
ITCUS
LINE
LIQUID LINE
TXV #1
EQUALIZING LINE
SERVICE
VALVE
OUTDOOR COIL
LOW PRESSURE CONTROL
DISCHARGE LINE
THERMOSTAT
HIGH
PRESSURE CONTROL
AIR
AIR
INDOOR COIL #1
INDOOR COIL #2
TXV BULB #2
TXV BULB #1
TXV #2
EQUALIZING LINE
DISCHARGE
LINE
THERMOSTAT
HIGH
PRESSURE CONTROL
SERVICE
VALVE
REHEAT
COIL
DISCHARGE LINE
CHECK
VALVE
SOLENOID
VALVE
BLEED TUBE
MTW-9S VALVE
B
A
FROSTAT
THERMISTOR
FILTER DRIER
Piping Diagrams
