Trane Precedent WSJ150A - Dimensional Data; Figure 2. 12.5 to 15 tons standard efficiency; Figure 3. 20 to 25 tons standard efficiency

PKGP-SVX010B-EN
13
Dimensional Data

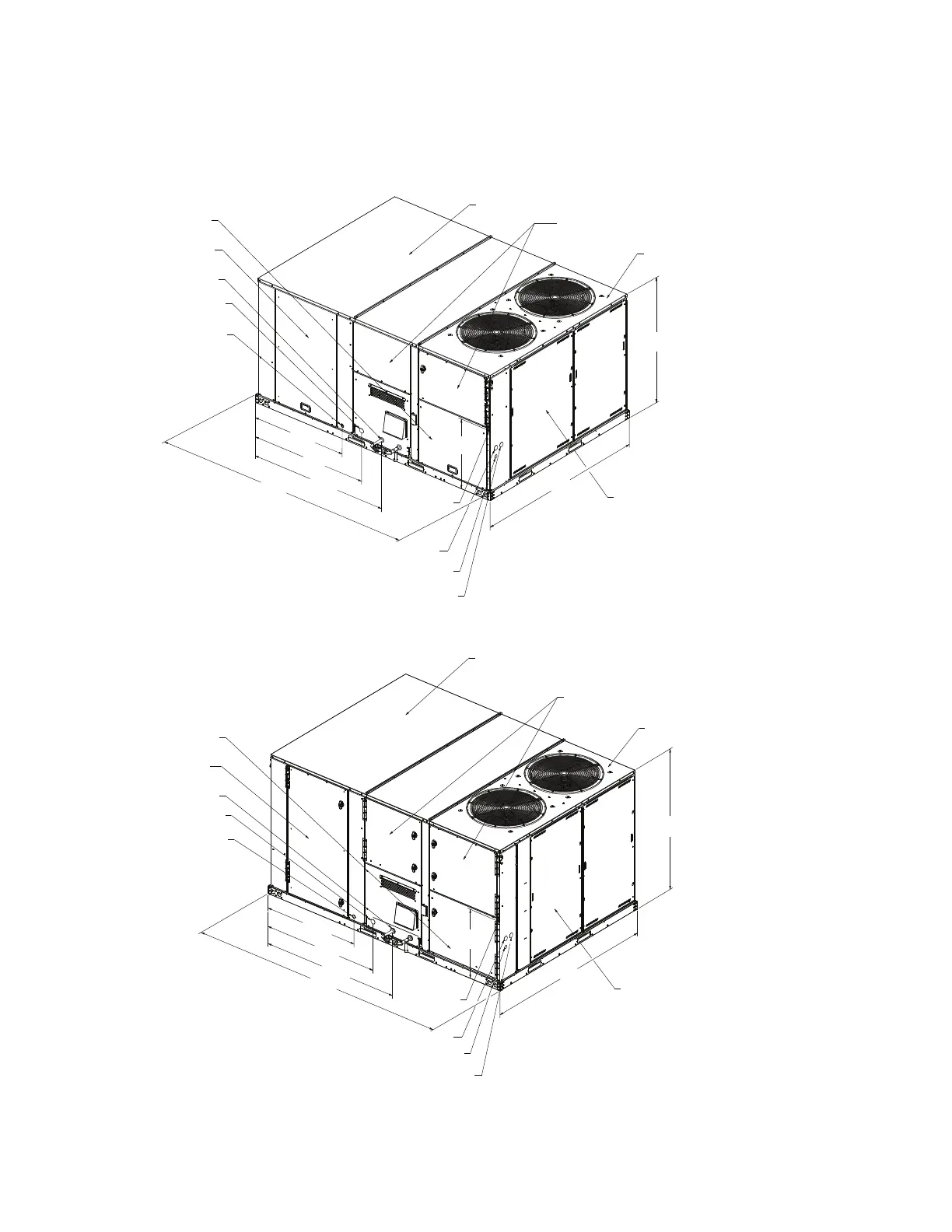

Figure 2. 12.5 to 15 tons standard efficiency
44 3/4"
[1135]
55"
[1398]
65 5/8"
[1668]
123"
[3124]
87"
[2210]
59"
[1499]
31 7/8”
[810]
EVAPORATOR SECTION
ACCESS PANEL
INDOOR TOP PANEL
CONTROL BOX SECTION
ACCESS PANEL
OUTDOOR TOP PANEL
COIL GUARDS
3/4 NPT GAS CONNECTION
CONDENSATE DRAIN
UNIT CONTROL WIRE
2” (50 MM) DIA. HOLE
UNIT POWER WIRE
2” (50 MM) DIA. HOLE
SERVICE GAUGE PORT ACCESS
1 3/8” (35 MM) DIA. HOLE
2" ELECTRICAL CONN SINGLE POINT
POWER "T" MODELS ONLY
UNIT CONTROL
WIRE
COMPRESSOR SECTION
ACCESS PANEL
Figure 3. 20 to 25 tons standard efficiency
66''
[1676]
55''
[1398]
87''
[2210]
44 3/4''
[1135]
65 5/8''
[1668]
123''
[3124]
31 7/8''
[810]
3/4" NPT GAS CONNECTION
EVAPORATOR SECTION
ACCESS PANEL
CONDENSATE DRAIN
INDOOR TOP PANEL
UNIT CONTROL WIRE
2” (50 MM) DIA. HOLE
UNIT POWER WIRE
2” (50 MM) DIA. HOLE
OUTDOOR TOP PANEL
SERVICE GAUGE PORT ACCESS
1 3/8” (35 MM) DIA. HOLE
2" ELECTRICAL CONN SINGLE POINT
POWER "T" MODELS ONLY
UNIT CONTROL
WIRE
CONTROL BOX SECTION
ACCESS PANEL
COMPRESSOR SECTION
ACCESS PANEL
COIL GUARDS
