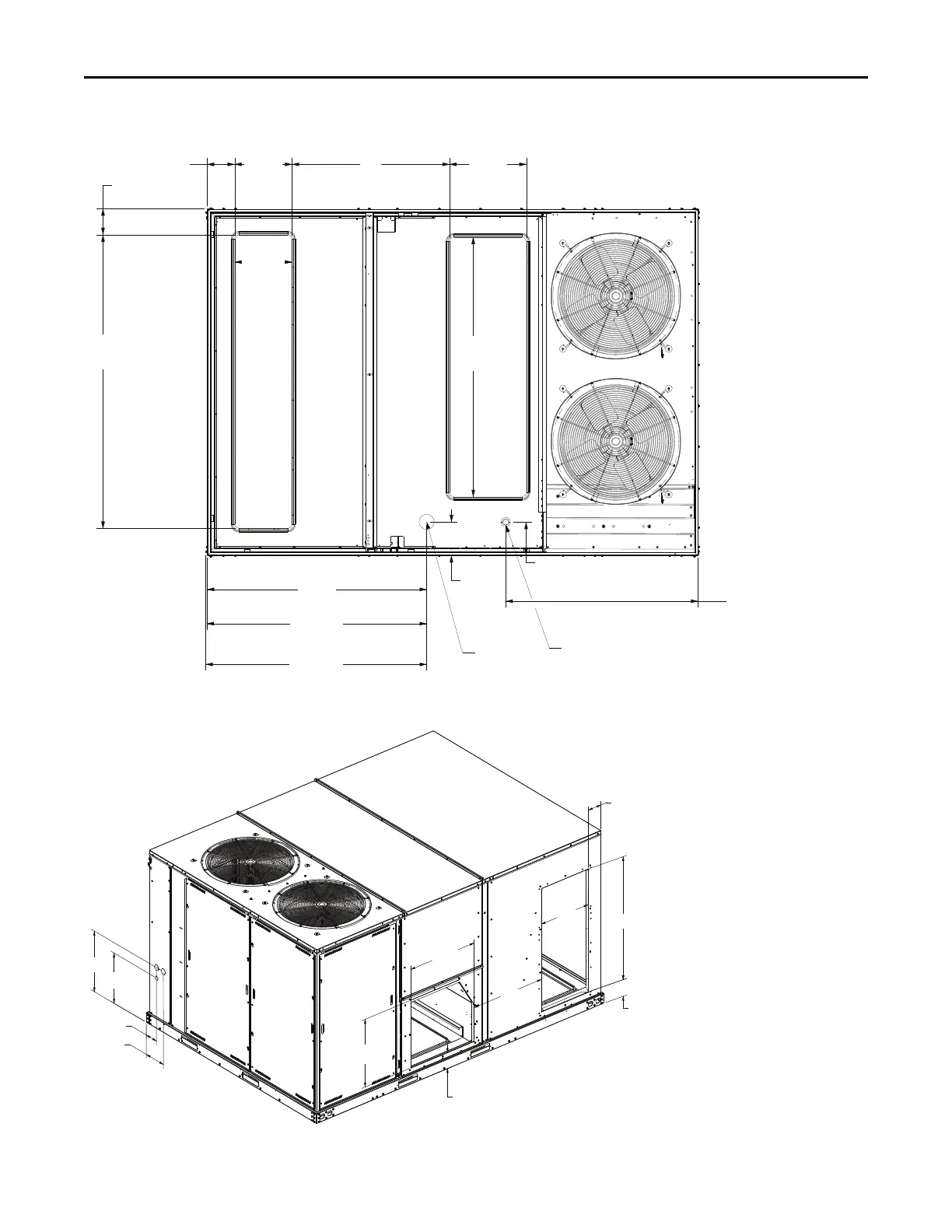

Figure 4. 12.5 to 25 tons standard efficiency – downflow airflow supply/return, through-the-base utilities
7"
177 MM
14 3/8"
365 MM
14 7/16"
365MM
40"
1002MM
19 3/8"
488MM
65"
1652MM
73 5/8"
1868MM
8 3/8"
212MM
48"
1223MM
6 5/8''
167 MM
55.0577
[1398.467]
55.2977
[1404.563]
8''
205MM
55 3/8''
1404MM
THROUGH
THE BASE
ELECTRICAL
THROUGH
THE BASE GAS
(D_J MODELS
ONLY)
Figure 5. 12.5 to 25 tons standard efficiency – horizontal airflow supply/return
46 1/2''
[1181]
6''
[153]
20''
[508]
25 1/2''
[648]
26 3/4''
[679]
29''
[737]
5 1/4''
[133]
22 3/8''
[570]
18 7/16''
[468]
4 9/16''
[114]
7 15/16''
[202]
5 1/2''
[141]
SUPPLY
RETURN
Dimensional Data
