Trane Precedent WSJ150A - Dimensional Data; Figure 6. 12.5 to 25 tons standard efficiency - power exhaust; Figure 7. 12.5 to 25 tons standard efficiency - unit clearance and roof opening

PKGP-SVX010B-EN
15

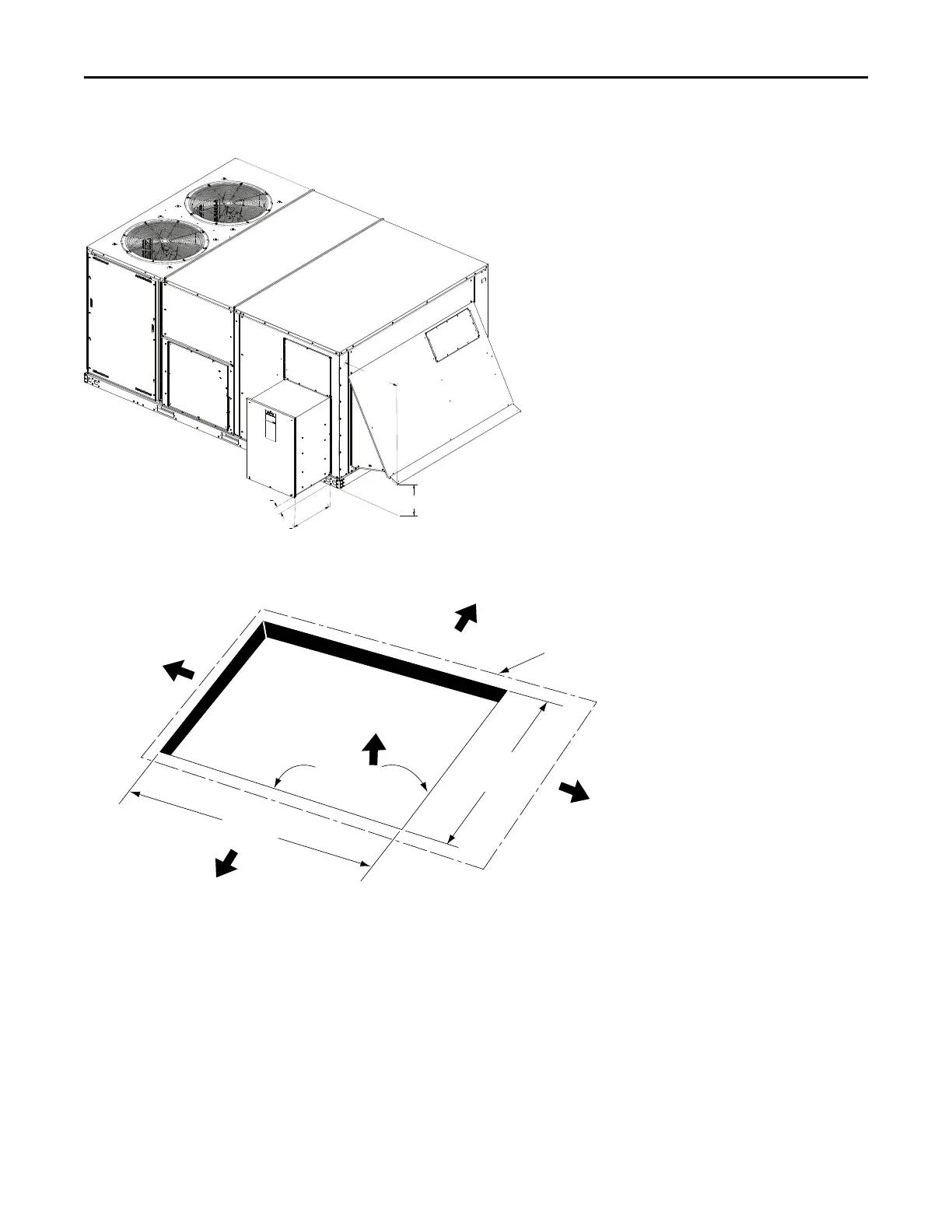

Figure 6. 12.5 to 25 tons standard efficiency – power exhaust
4.4
21.4
7.0
22.7
Figure 7. 12.5 to 25 tons standard efficiency – unit clearance and roof opening
UNIT OUTLINE
CLEARANCE 36”
914 MM
CLEARANCE 48”
1219 MM
FRONT OF UNIT
CLEARANCE 60”
1524 MM
CLEARANCE 68”
1727 MM
76 1/2”
1943 MM
81”
2057 MM
ROOF
OPENING
CLEARANCE FORM
TOP OF UNIT 72” MM (1829 MM)
Dimensional Data
