Weights
Table 1. Model weights, corner weights (lbs) and center of gravity dimensions (in.)
Tons Unit Model No.
Model Weights
(a)
Corner Weights
(b)
Center of Gravity (in.)
Shipping
Net A B C D
Length
Width
12.5 WSJ150 2225 2005 688 487 344 486 51 36
15 WSJ180 2246 2026 695 492 348 491 51 36
20 WSJ240 2403 2183 680 550 426 527 55 38
25 WSJ300 2405 2185 680 550 427 528 55 38
12.5 DSJ150 2407 2187 750 532 375 530 51 36
15 DSJ180 2427 2207 757 536 379 535 51 36
20 DSJ240 2697 2477 771 624 484 598 55 38
25 DSJ300 2700 2480 772 625 484 599 55 38
(a)
Weights are approximate. Weights do not include additional factory or field installed options/accessories. For option/accessory additional weights to be added to unit weight,
reference the following table.
(b)
Corner weights are given for information only.

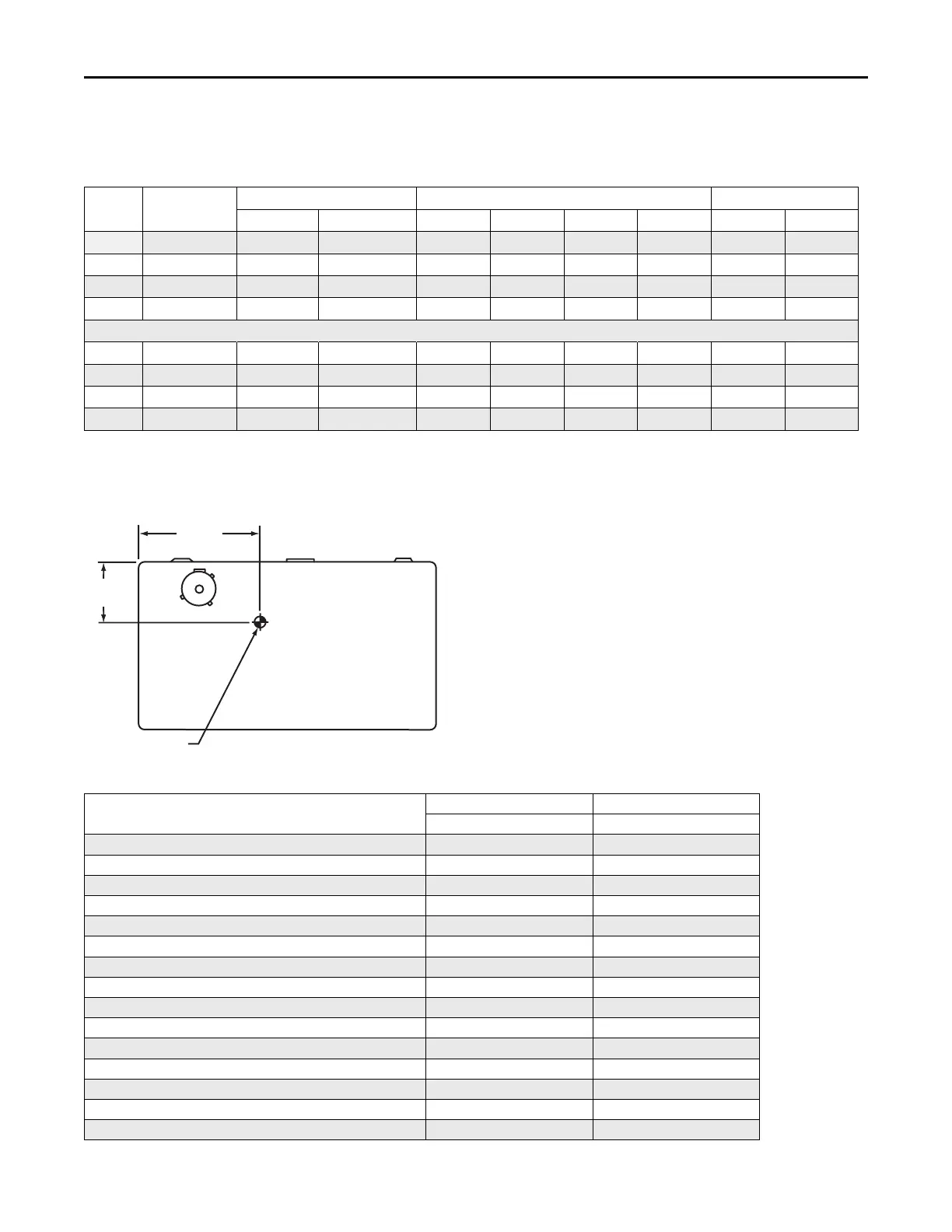

Figure 12. Corner weights
Center of Gravity
Length
Center of
Gravity
Width
Center of Gravity
A
B
C
D
Table 2. Factory installed options (FIOPS)/accessory net weights (lb)
Accessory
W/D*J150-180 W/D*J240-300
12.5, 15 Tons 20, 25 Tons
Barometric Relief 40 40
Economizer 91 91
Electric Heaters
(a)
75 75
Hinged Doors
20 30
Low Leak Economizer - Downflow 150 150
Low Leak Economizer - Horizontal 180 180
Manual Outside Air Damper
15 15
Motorized Outside Air Damper
82 82
Oversized Motor – 30
Powered Convenience Outlet 50 50
Powered Exhaust 110 110
Reheat Coil 100 100
Roof Curb 235 235
Smoke Detector, Supply
5 5
Smoke Detector, Return
5 5
